HIKMICRO ECO-V

Hik Micro Eco-V Handheld Infrared Camera

Discover the Hik Micro Eco-V Handheld Infrared Camera, a versatile and powerful tool designed for effective thermal imaging applications. Ideal for professionals in electrical, mechanical, and building inspections, this camera delivers high-resolution thermal imagery with precision and clarity

Supplied with:

Hikmicro ECO-V Thermal Imaging Camera
USB 2.0 A to USB Type-C Cable
Quick start guide
4 Year Warranty

Compare

Description

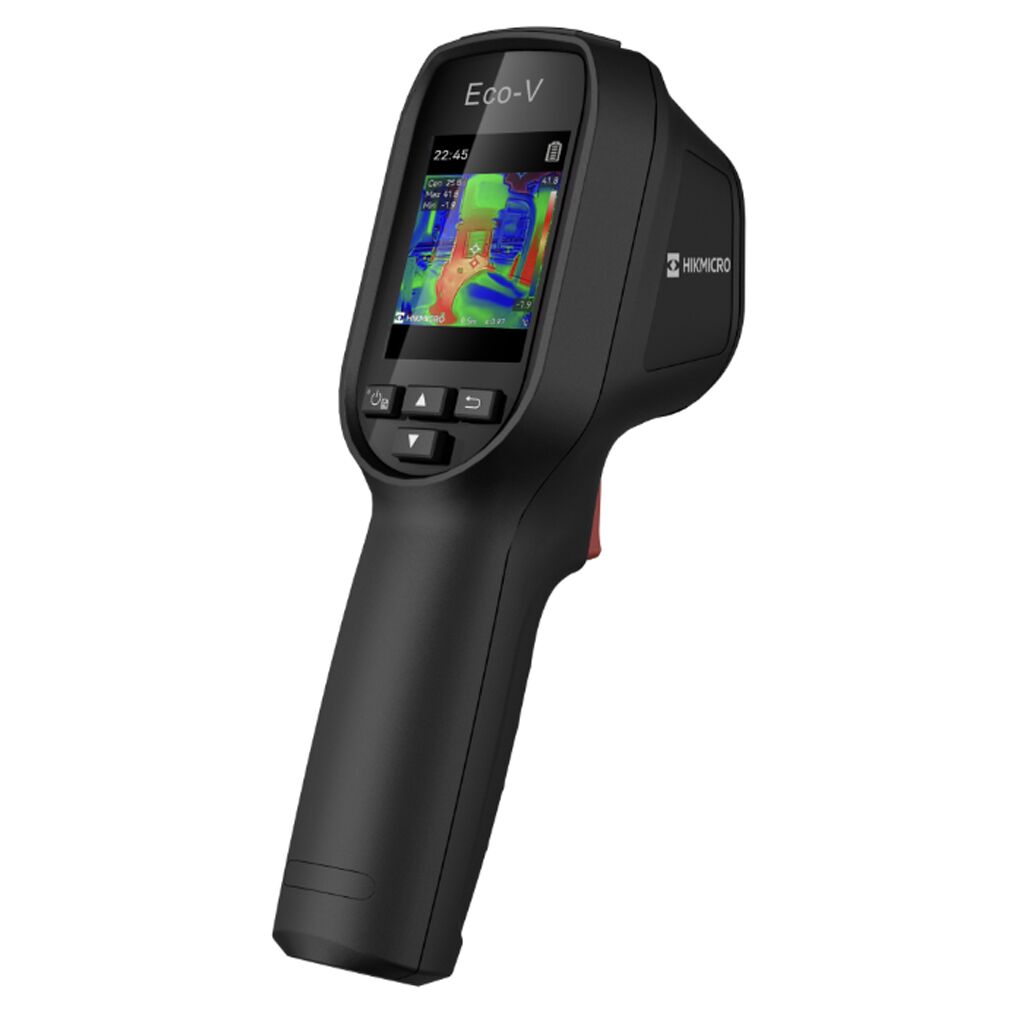

HIKMICRO Eco-V Handheld Infrared Camera

IR Performance, Surprisingly Affordable, & Absolutely Brilliant

Discover the HikMicro Eco-V Handheld Infrared Camera, a versatile and powerful tool designed for effective thermal imaging applications. Ideal for professionals in electrical, mechanical, and building inspections, this camera delivers high-resolution thermal imagery with precision and clarity.

Upgrade your inspection toolkit with the HIKMICRO Eco-V Handheld Infrared Camera – combining advanced technology and user-friendly design for outstanding thermal imaging results. Perfect for both professionals and enthusiasts alike.

Supplied with:

Hikmicro ECO-V Thermal Imaging Camera
Adapters (× 5)
USB Cable

Power adapter
Wrist strap
Quick start guide

Key features:

High Resolution: Equipped with a 256 x 192 thermal sensor, providing sharp and detailed images for accurate analysis
User-Friendly Interface: The intuitive touchscreen display simplifies navigation and operation, making it accessible for users of all skill levels
Multiple Measurement Modes: Offers various imaging modes, including thermal, visual, and picture-in-picture, enhancing your diagnostic capabilities
Robust Design: Built to withstand tough environments, the Eco-V is both lightweight and durable, ensuring reliability during fieldwork
Long Battery Life: Features a powerful battery that supports extended usage, allowing for uninterrupted performance throughout your tasks

Thoughtful Functions for Your Efficient Workflow

Locate with Laser Pointer
Helps show the position of the center point on actual object

HIKMICRO Eco-V - Video Tutorials

HIKMICRO Eco-V – Promotional Video

HIKMICRO Eco-V – How To Video

HIKMICRO Eco-V – Unboxing

Enhanced Thermal Clarity with SuperIR

Powered by HIKMICRO Super IR image enhancement technology, it upscales thermal images from 96 × 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution when viewing live with 25 Hz fast image frequency and capturing photos.

50° Wide Angle Lens

Scan large areas quickly with the50° wide angle lens to find issues like air infiltration, waterleaks, and insulation issues.

1-Click IR & Visual Image Storage (Eco-V Only)

Saving visual and thermal images simultaneously in one click allows you efficient workflow and a fast inspection report.

HikMicro Eco-V - Full Screen Temperature Measurement

Full-screen Precise and Wide Temperature Measurement

Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C (-4°F) to 550°C (1022°F), with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.

Dual-camera Thermal Imager (Eco-V Only)

Built-in IR camera and visible camera, allow you to switch 3 image modes (Thermal, Visual, andFusion). “Fusion” blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity.

Rugged and Durable

Features IP54-rated form factor, passes strict drop tests up to 2 meters (6.56 feet) and comes with a three-year warranty. Reliable products that do the tough jobs.

8 Hrs. Continuous Runtime

Built-in 3350 mAh Li-Ion rechargeable battery and thoughtful auto power-off settings (5/10/20minutes) allow the camera up to 8 hours of continuous operation.

7 Color Palettes

Offers White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion & Above Alarm 7 colour palettes so you can choose the ideal colour scale for your job.

Hikmicro Eco Series
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Hikmicro Eco-V – Data Sheet

Hikmicro Eco-V – Quick Start Guide

Hikmicro Eco-V – User Manual

Hikmicro Eco-V Series – Flyer

Additional information

Brand	HIKMICRO

Product Specification

THERMAL MODULE:
IR Resolution	96 x 96 (9,216 pixels)
SuperIR Resolution	240 × 240 (57,600 pixels)
Distance to Spot Ratio	(D:S) 112:1
Image Frequency	25 Hz
NETD	< 50 mK (@ 25°C, F# = 1.0)
Detector Pitch	12 μm
Focal Length	1.35 mm
Spectral Range	7.5 to 14 μm
F-number	F1.0
FOV (Field of View)	50°× 50°
IFOV (Spatial Resolution)	8.89 mrad
Min. Focus Distance	0.1 m (0.33 ft)
Focus Mode	Focus Free

IMAGE DISPLAY:
Display	240 × 320 Resolution, 2.4’’ LCD Screen
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
Image Modes	Thermal/Visual/Fusion
Color Alarm	Above alarm
Visual Camera	640 × 480

MEASUREMENT & ANALYSIS:
Object Temperature Range	-20°C to 550°C (-4°F to 1022°F)
Accuracy	Max. (± 2°C/3.6°F, ± 2%), at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)
Measurement Tools	Center Spot, Hot Spot, Cold Spot
Level and Span Mode	Auto/Manual

DATA STORAGE & COMMUNICATION:
Storage Media	Built-in 4 GB flash memory
Image Storage Capacity	Approx. 30,000 Images

GENERAL:
USB Interface	USB Type-C
Laser	Yes, Class II
Battery Type	Rechargeable Li-ion battery
Battery Charging Time	Approx. 3 hours fully charged(Adapter Output: 5 V 2 A)
Battery Operating Time	Approx. 8 hours
Protection Level	IP54
Drop Test Height	2 m (6.56 ft)
Working Temperature Range	– 10°C to 50°C (14°F to 122°F)
Storage Temperature Range	– 40°C to 70°C (- 40°F to 158°F)
Relative Humidity	< 95% non-condensing
Weight	Approx. 290 g (0.64 lb)
Dimension	196 × 117 × 59 mm (7.7” × 4.6” × 2.3”)
Tripod Mounting	UNC ¼”-20
