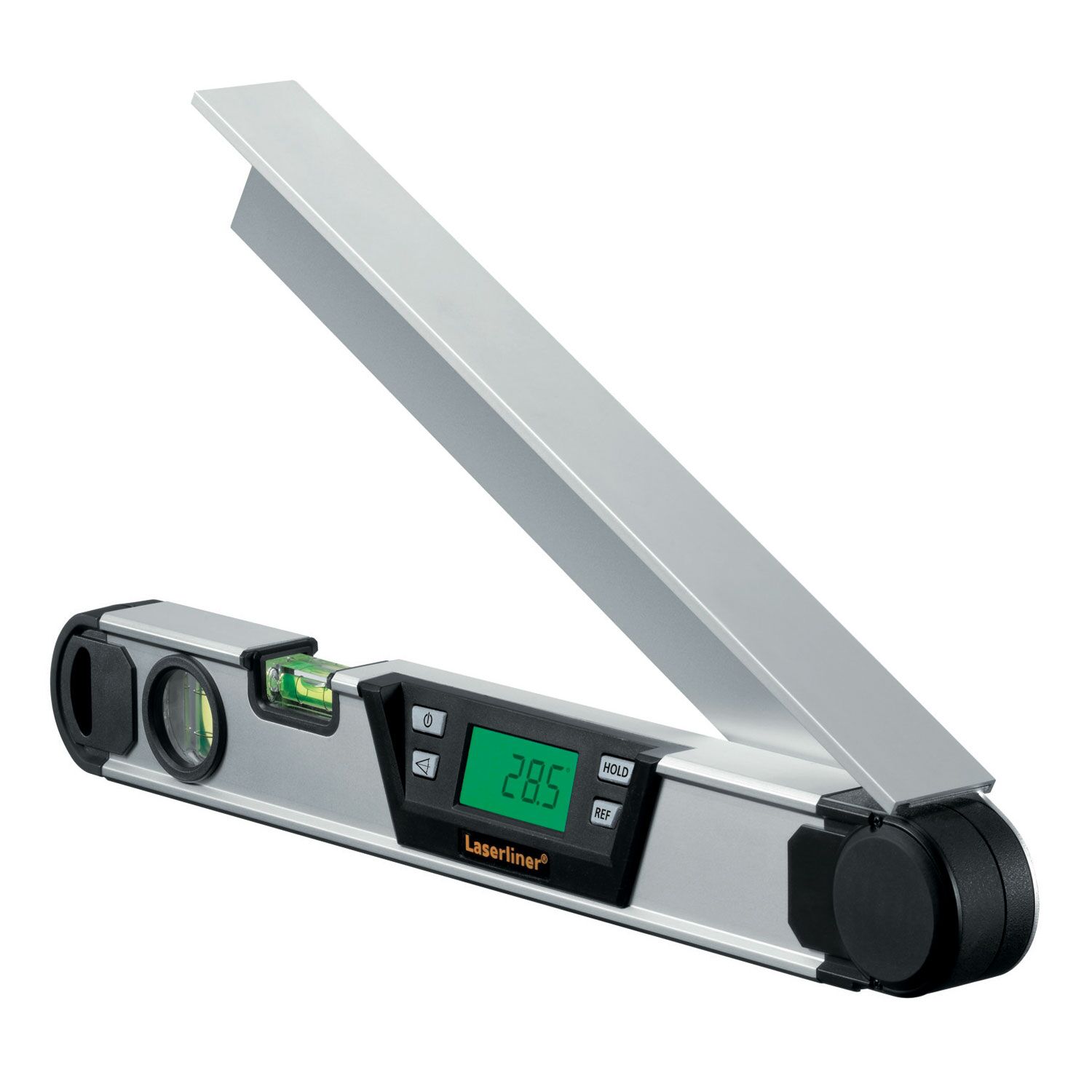

Laserliner ArcoMaster 40cm | 60cm

£144.99 – £189.99

Digital electronic spirit level, user friendly and precise. With laser dot for optical prolongation of spirit level so heights and angles can easily be transferred. Acoustic alert signal (AutoSound) at 0º, 45º, 90º, 135º & 180º. Sturdy metal frame construction.

Selectable units: degrees, %, mm/m
Angle transfer & calibration functions
Flip display | Vertical & horizontal vial
1/4″ tripod adapter | Magnetic base
Angle accuracy: ± 0.2º, vial ± 1mm/m

Supplied with:

Soft Carry Case | Battery
4 Year Warranty

Please choose

Add to compare

Add to wishlist

Compare

SKU: N/A Category: Digital Spirit Level Tag: Digital Spirit Level

Description

Digital electronic angle measurement device with illuminated LCD display on front, rear, horizontal and vertical vial

Precisely measure inside or outside angles from 0-220°: measurements of roof angle, fitting furniture or windows at corners and edges
Additional extensible bevel for measuring angles in difficult to reach locations
Robust aluminium housing
Vertical & horizontal level vials
An illuminated LC display on each side (front and rear) to permit work at either side
Both displays can be flipped at the touch of a button: FlipDisplay
Auto shut-off function
Auto hold: for work where the LC display is not visible
Angle bisection displayed at the touch of a button, even in hold mode; optimal for mitre cuts

Additional features:

Measuring range: 0º - 220º
Pull-out bevel
Hold function
Automatic angle bisection
Angle accuracy: 0.1º, vial ± 0.25mm/m

Supplied with:

Soft Carry Case
Battery
4 Year Warranty

Flip Display

Display flips 180° at the touch of a button

Laserliner ArcoMaster - extend bevel upward

Extensible bevel

For measuring angles in difficult to reach locations

Illuminated LC display

On each side (front & rear) to permit work at either side

Laserliner ArcoMaster - extend bevel downward

Accurate measurement

Bevel extends upwards & downwards

Video tutorials

Digital Angle Measure

Key Features

Both displays can be flipped at the touch of a button
Robust aluminium housing
Precisely measure inside or outside angles from 0-220°
Vertical & horizontal level vials

Overview	Applications
MAESURING RANGE: 0º – 220º	Construction
ANGLE ACCURACY: 0.1º, vial ± 0.25mm/m	Tradesmen
POWER SUPPLY: 2 x 1,5 V Typ AA batteries / 8 hours operating time	DIY Enthusiasts
DIMENSIONS (W x H x D): 420 x 57 x 40 mm
WEIGHT with batteries: 0,8 kg

ArcoMaster
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

ArcoMaster 40/60 – Manual

Additional information

Weight	N/A
Dimensions	N/A
Brand	Laserliner
Please choose	Laserliner ArcoMaster 40cm , Laserliner ArcoMaster 60cm

Product Specification

ELECTRONIC SLOPE measurement precision:	± 0.05° at 0° – 1°, ± 0.1° at 90°, ± 0.2° at 1° – 89°
DISPLAY ACCURACY:	0° – 1° 2 decimal places 1° – 90° 1 decimal place
VIAL PRECISION:	+ 0,5 mm/m
LASER:	Class 2
LASER WAVELENGTH:	650 nm
POWER SUPPLY:	Batteries 2 x 1,5 V Typ AAA
DIMENSIONS (W x H x D):	610 x 60 x 33 mm
WEIGHT with batteries:	0,8kg

Warranty

4 Year Manufacturer’s Warranty
