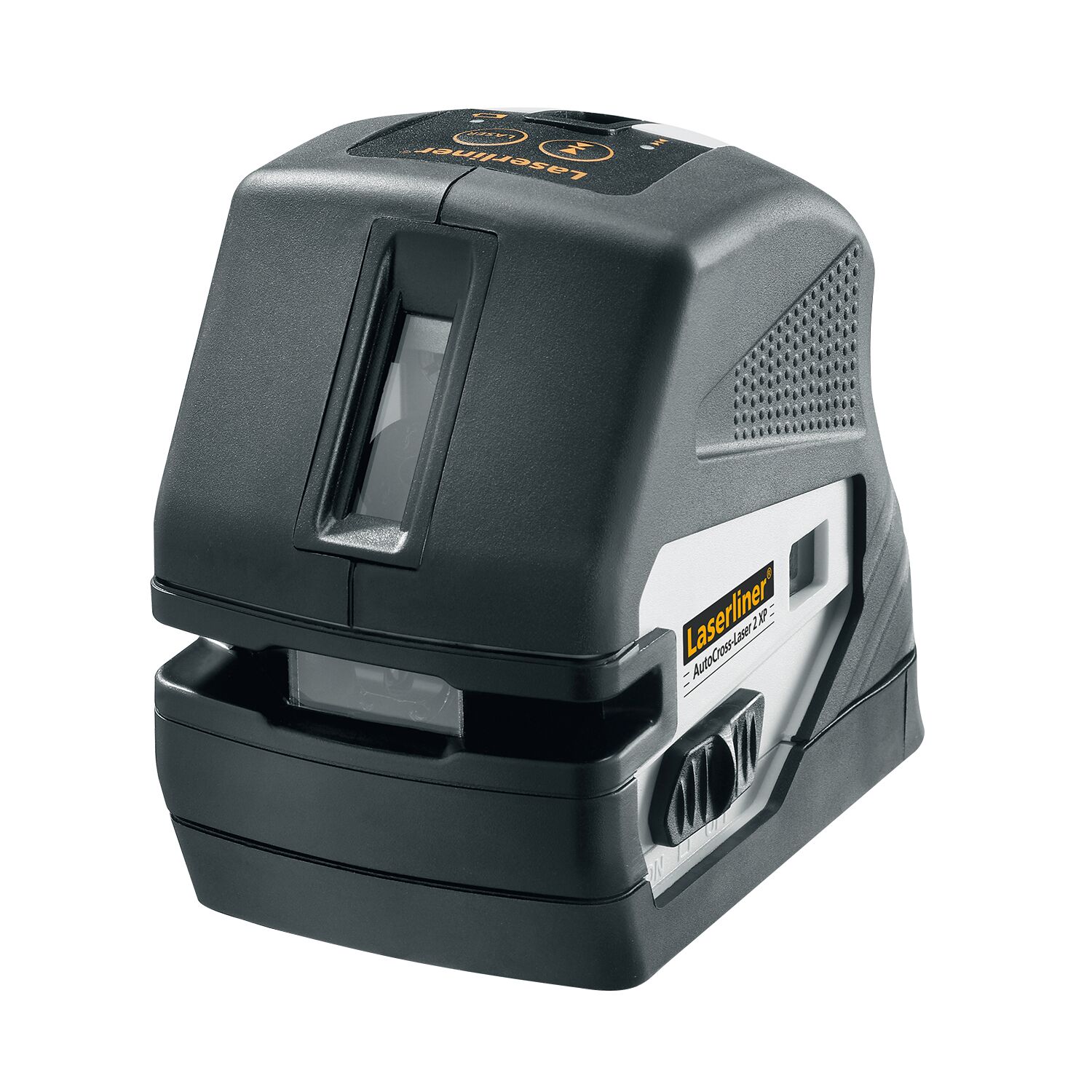

Cross-line and 5-point laser with hand receiver mode and magnetic wall bracket
Automatic laser level with 2 very visible, individually switchable laser lines and 5 laser points placed each at 90°. The plum and ceiling points allow markings to be easily transferred from the floor to the ceiling. Plus tilt mode which allows gradients to be laid out.
Includes magnetic wall bracket, ideal for mounting on walls and attaching to magnetic objects eg. on drywall construction profiles. Ideal for the alignment of tiles, wall studding, windows, doors, etc.
- Out-Of-Level: is indicated by optical and acoustic signals when the unit is outside its self-levelling range
- RX-Ready: an integrated hand receiver mode detects the laser lines with laser receiver RX (optional) up to a max. of 50 m radius – ideal for all interior and exterior applications
- Transport Lock: a pendulum lock protects unit during transport
Supplied with:
Introducing the
AutoCross-Laser 2
Cross-line & 5-point laser
2 very visible laser lines, plus 5 laser points at 90°.
Tilt Mode
Permits gradients to be laid out.
Use device as stand-alone, or in combination
The magnetic bracket allows the unit to be used as a stand-alone device or in combination with other devices – on walls and attached to magnetic objects.
Magnetic Wall Bracket
Ideal for mounting on magnetic construction profiles, makes the height and position of the device easily adjustable.
Key Features
-
2 very visible laser lines
-
5 laser points
-
Automatic level
-
Tilt mode as an additional feature
-
Ideal for mounting horizontally & vertically on drywall construction profiles
-
Individually switchable laser lines
-
Out-of-level indication
-
GRX-Ready: Optional laser receiver with a detection range of up to 50m – ideal for interior & exterior applications
-
Transport lock
| Electricians, HVAC | |
| Levelling accuracy ± 0,2 mm / m | Carpenters |
| Self-levelling range ± 3 ° | Plasterers |
| Battery type: 4 x 1.5V alkaline | Decorators, painters |
| Water & dust protection IP54 |
AutoCross
-Laser 2 XP
Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
