Laserliner CondenseSpot XP
Laserliner CondenseSpot XP £219.99 Price incl. VAT: £263.99
Back to products
GP 5000mAh GREEN GPACCMP05001
MP05MA 5000mAh GREEN Powerbank £19.00 Price incl. VAT: £22.80

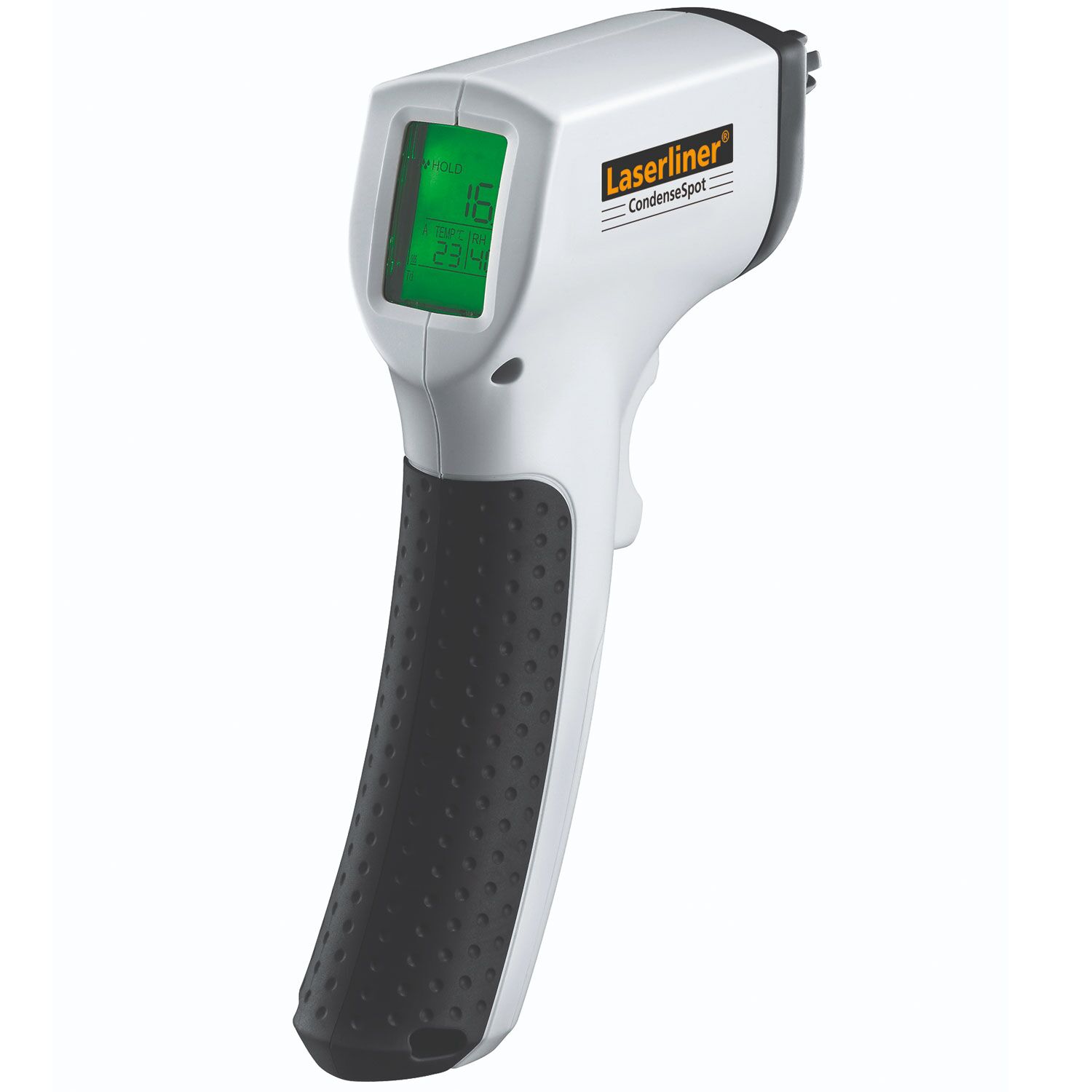

Laserliner CondenseSpot Laser Plus

£89.99 Price incl. VAT: £107.99

Non-contact infrared temperature meter, ideal for difficult to reach places. Integrated hygrometer finds relative air humidity and calculates dew point temperature. Enables localisation of thermal bridges and places endangered by the formation of condensation water

  • Surface temperature
  • Ambient temperature
  • Relative air humidity
  • Dew-point temperature

Supplied with:

  • CondenseSpot Laser
  • Type 9 V E block battery
  • 4 Year Warranty
Compare
Description

Non-contact infrared temperature measurement for preventing mould

  • Functions: -surface temperature – ambient temperature – relative air humidity – dew point temperature
  • Temperature measurement in difficult to reach places or in endangered measuring zones
  • The integrated hygrometer determines relative air humidity and calculates the dew point temperature
  • Localisation of thermal bridges and places endangered by the formation of condensation water
  • The 12-point laser circle pinpoints the measuring zone exactly
  • The multi-function display: provides sufficient space for all measured values
  • Condensation water indicator as bar graph display
  • Min/Max/Avg display: The smallest, largest or average measured value can be displayed, as needed
  • Adjustable emission coefficient (0.10 … 0.99)
  • Measurement display in °C or °F, selectable
  • Data-Hold: The most recent measured value is saved temporarily
  • LCD Backlight: Illuminated LCD

Supplied with:

  • CondenseSpot Laser
  • Type 9 V E block battery
  • 4 Year Warranty
Laserliner CondenseSpot Laser - illustrations
Laserliner CondenseSpot Laser - Localisation of Thermal Bridges

Localisation of Thermal Bridges

And places endangered by the formation of condensation water

Condensation

Condensation water indicator as bar graph display

Laserliner CondenseSpot Laser - Hard to Reach Places

Measure Temperature

Non-contact temperature measurement in difficult-to-reach places & in hazardous measuring zones

Laserliner CondenseSpot Laser - 12 Point Laser Circle

12 Point Laser Circle

For pinpointing. Optics 8:1 (8 m distance : 1 m measured spot)

Video Tutorial

Infrared Temperature Measure

Key Features

  • Temperature measurement in difficult to reach places
  • Multi-function, illuminated display
  • Integrated hygrometer for relative air humidity & dew point temperature
Overview Applications
Measurement Range:-30 °C – 350 °C Hard to reach or hazardous areas
Laser: 12 point laser circle Indicate condensation
OPTIC 8:1 (8 m distance : 1 m measured spot) Locate thermal bridges

CondenseSpot Laser
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Laserliner

Product Specification

Product Specification

CondenseSpot Laser
Infrared Measuring Range: -30°C… 350°C / -30°F…662°F
Accuracy:
± 1,5 °C + 0,1 °C/1 °C (-30 °C … 10 °C);
± 1 °C (10 °C … 30 °C);
± 1,5 °C or 1,5 % (30 °C … 350 °C)
Resolution: 0,1°C
Ambient Temperature: -10 °C … 60 °C (14 °F … 140 °F)
Accuracy: ± 2 °C
Hygrometer: 20% … 90% relative air humidity
Accuracy: ± 3%
Resolution: 1%
Dew Point Indicator: -20 °C … 60 °C
Resolution: 1 °C
Optics: 8:1 (8 m distance : 1 m measured spot)
Emission Coefficient: 0.10 – 0.99, adjustable
Optics: 30:1
(30 m distance : 1 m measured spot)
Emission Coefficient: 0,01 – 1,0 adjustable
Laser Wavelength: 650 nm
Laser Class: 2, < 1 mW
Power Supply: Type 9 V E block battery
Dimensions(W x H x D): 40 x 170 x 115 mm
Weight (incl. battery) : 200 g
