Laserliner Cubus Green 210 S Set 150cm

£709.00 Price incl. VAT: £850.80

Fully automatic green rotary laser with tripod, laser receiver and measuring staff.

  • Range 200m
  • 90° reference beam
  • Exact horizontal & vertical alignment
  • Functions can be controlled by remote up to 40m
  • Manual alignment of slopes

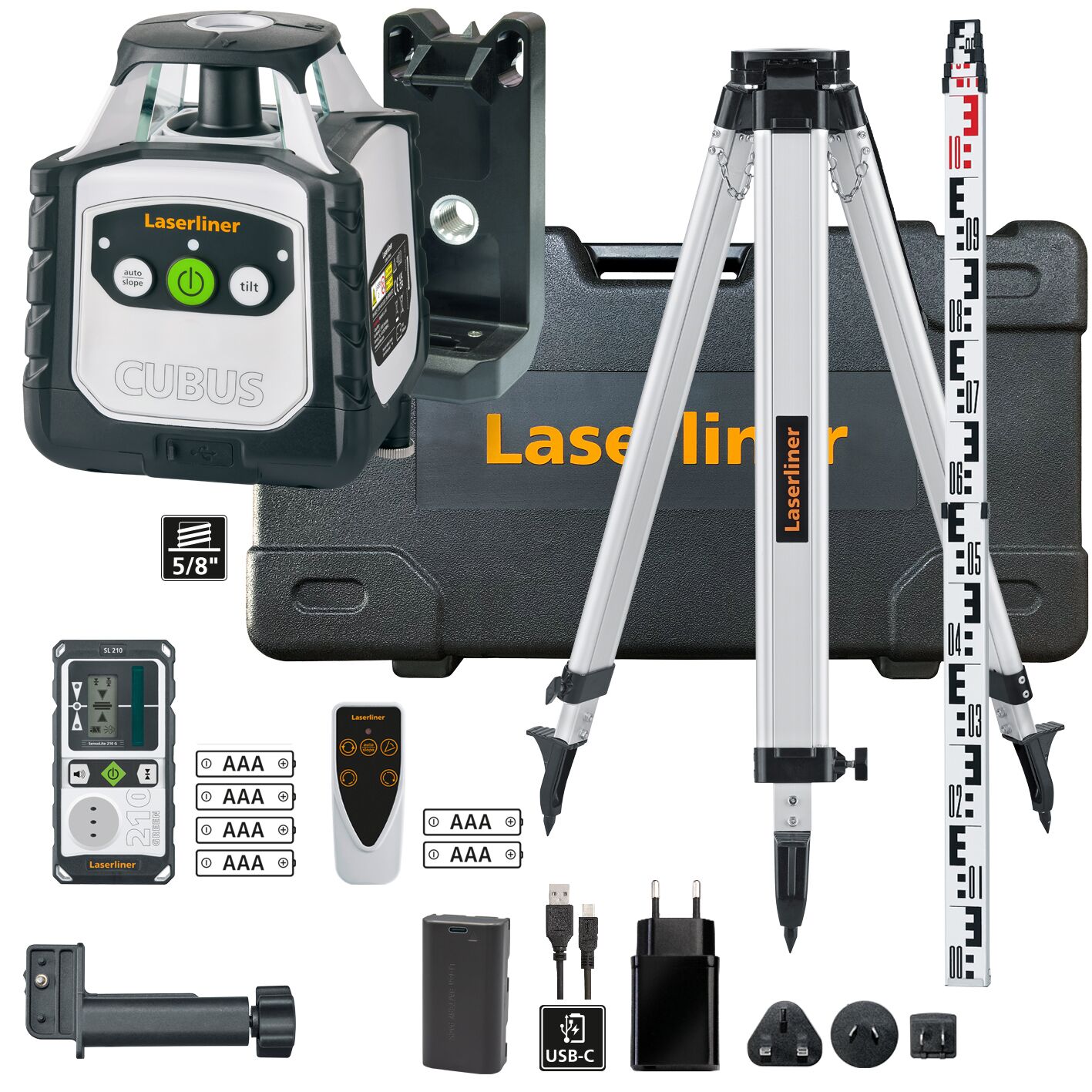

Supplied with:

  • Cubus G 210 S (052.305A)
  • SensoLite G 210 Receiver | Universal mount
  • Lightweight Tripod 150 cm | Wall Bracket | Universal Mount
  • Telescopic Levelling Staff 4M
  • Remote control | 2 x High Capacity Pack (Li-Ion)
  • Carrying strap | Hard carry case
Compare
Description

Fully automatic rotary laser with tripod, laser receiver & measuring staff

This long range, fully automatic rotary laser is ideal for excavation work. The robust device provides precise levelling of horizontals, verticals and slopes.

A 90° reference beam provides plumb-lining and aligning for partitions. Available modes include spot, scan, rotary and hand-held receiver. The combination of light-weight tripod, laser receiver and measuring staff is ideal for determining and working with reference dimensions. All functions can be easily controlled with the remote control up to a maximum distance of 40 metres. In the event of external influences, the device shuts down automatically to prevent measurement errors. The battery pack can be used and charged at the same time which means users can work without interruption.



Supplied with:

  • Laserliner Cubus Green 210 S
  • SensoLite G 210 Receiver
  • Remote Control | Batteries
  • Lightweight Tripod 150 cm | Wall Bracket | Universal Mount
  • Telescopic Levelling Staff 4M
  • 2 x High Capacity Pack (Li-Ion)
  • Network/charging device incl. international adapter
  • Carrying strap | Hard carry case
  • 4 Year Warranty

Can be vertically positioned on ground or tripod

Robust waterproof housing

With water & dust protection to IP 66

Fully automatic alignment

Via electronic positioning motors controlled by temperature-stable sensors

Automatic Sensor

With fully automatic alignment via electronic positioning motors controlled by temperature-stable sensors

Key Features

  • Range: 200m
  • Laser modes: spot, scan, rotary & hand receiver mode
  • Vertical reference beam: plumb & align
  • 4º self-levelling range
  • Laser receiver range: < 200m
  • Remote control: < 40m
  • Accuracy: ± 1.5 mm @ 10 m
  • Robust, construction site proof
  • Battery type: Lithium
Features Popular with
Range: < 40m (<200m with Sensolite G 210 Receiver) Electricians, HVAC
Levelling accuracy ±0.15 mm/m Carpenters
Self-levelling range ± 5 ° Plasterers
4 laser modes: spot, scan,rotary & hand receiver mode Decorators, painters
Protection class IP 56 (Sensolite G 210) IP 66 (Cubus G)
Battery type: Lithium
Operating time: approx. 20 hours (4 hrs charge)

Laserliner
Cubus G 210 S
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
BrandLaserliner
Product Specification

Product Specification

Range Range up to 40m* >200m with detector
Levelling accuracy ± 0.15 mm/m
Self-levelling range ± 4°
4 laser modes Spot, scan, rotary & hand receiver mode
Battery type Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating time approx. 20 hours (4 hrs charge time)
Protection class Cubus IP 66 (SensoLite 210 IP 56)
Dimensions 130 x 160 x 145 mm (with stand & wall bracket)
Weight with batteries 1.3 kg (with stand & wall bracket)
Tripod thread 5.8″
Warranty

Warranty

Video Tutorial

A robust & fully automatic rotary laser for accurate alignment of horizontals, verticals & slopes. All functions can easily be controlled with the remote control up to a distance of 40 m. An additional reference beam guarantees perpendicularity & alignment of partitions.



Video Tutorial

Video Tutorial

Video Tutorial

A robust & fully automatic rotary laser for accurate alignment of horizontals, verticals & slopes. All functions can easily be controlled with the remote control up to a distance of 40 m. An additional reference beam guarantees perpendicularity & alignment of partitions.
