Laserliner LaserRange-Master Gi5 - select functions

Click to enlarge

Laserliner LaserRange-Master Gi5 - Digital Spirit Level

Laserliner LaserRange-Master Gi5 - angled

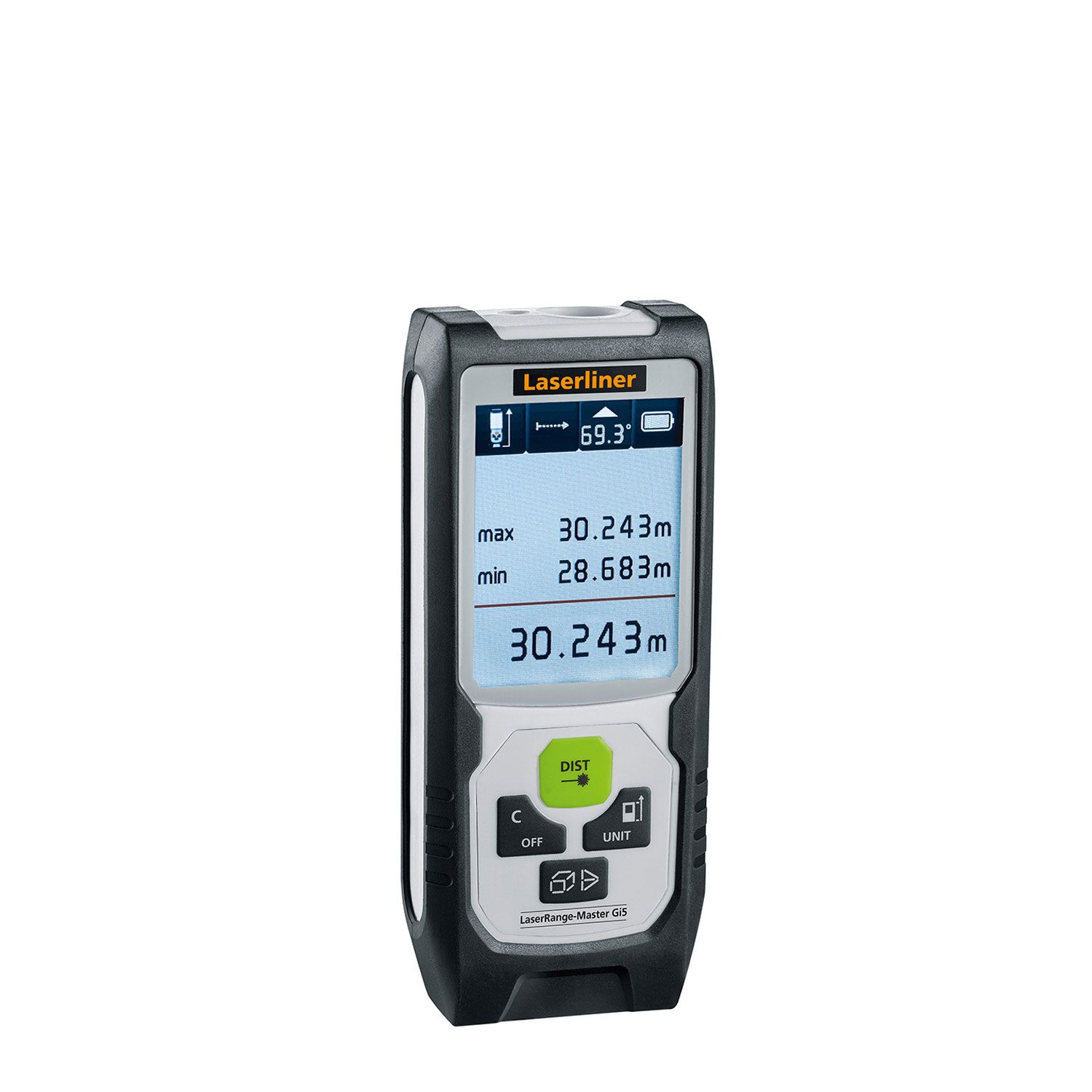

Laserliner LaserRange-Master Gi5

£124.99 Price incl. VAT: £149.99

Extremely bright GREEN laser technology
Point-precise measuring
Area & volume functions
Min/Max continuous measurement
Digital bubble level
360⁰ inclination sensor | Tilt sensor calibration
2 selectable reference points: front & rear
Iluminated 4 line LCD colour display

Supplied with:

Carry Case | Batteries
4 Year Warranty

Add to compare

Add to wishlist

Compare

SKU: 080.838A Category: Laser Distance Measures Tags: Green Laser, Laser Distance Meter, Laser Measure, LDM

Description

Laser distance meter – with GREEN DLD laser technology

Green laser technology
Extremely bright green laser cross at front in the DLD design achieves high-quality lines as well as a clean and clear and therefore easily visible line image
Point-precise measuring with laser to determine lengths exactly
The area and volume functions permit the acquisition of room sizes, for example, to calculate material quantities
Min/Max continuous measurement
Digital bubble level is used to align the measuring device
Tilt sensor calibration
360° inclination sensor for determining the horizontal and vertical distance
Measured value memory for 50 entries
High measuring accuracy up to 50 m: ± 2 mm*
Inside measurement range: 0,05 m to 50 m
2 selectable measurement reference points: front and rear
Illuminated 4-line colour LCD
Sturdy, ergonomically designed, rubberised casing

Supplied with:

Carry Case
2 x 1.5V Batteries

4 Year Warranty

DLD technology creates an extremely bright,
green laser point

LaserRange-Master Gi5 - continuous measurement

Min/Max continuous measurement

LaserRange-Master Gi5 - 50m - area and volume functions

Handy area & volume functions allow the acquisition of room sizes

LaserRange-Master Gi5 - digital bubble level

Protective rubber casing

Key Features

DLD Green Laser Technology creates an extremely bright, green laser point.
Area, volume & min/max functions
Indoor measurement range: 0.5 m to 50 m
Min/Max continuous measurement
Small, compact design – fits in any toolbox
Sturdy, ergonomic, rubberised casing

Overview	Applications
Green Laser DLD technology	Tradesmen
Min/max function	Painters & decorators
Area & volume functions	DIY Enthusiasts
2 selectable reference points: front & rear
Display: 4-line colour LCD
Automatic switch off: 30 sec laser, 3 min device
Selectable units: m
Range 0.5 – 50m (indoors)

LaserRange-Master Gi5
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner LaserRange-Master Gi5 – Datasheet

Additional information

Brand	Laserliner

Product Specification

Unit:	m
Accuracy:	± 2 mm (typical)*
Range:	0.5 – 50 m
Automatic switch off:	Laser: 30 sec Device: 3 min
Temperature:	Operating: -10°C … 40°C \| Storage: -20°C … 70°C
Laser:	Class 2 < 1mW
Laser wavelength:	650 nm
Power supply:	Batteries 2 x 1,5 V Typ AAA
Dimensions (W x H x D):	122 x 50 x 27 mm
Weight:	140g
