Compact digital electronic spirit level with Bluetooth interface.
- Display accuracy: 2 decimal places
- Reference function
- Calibration function
- Illuminated rotational display
- Hold function
- Strong magnetic attachment
- Length: 16cm
Laserliner BBQ-GasCheck
£24.99 Price incl. VAT: £29.99
Laserliner MultiFinder Pro
£79.99 Price incl. VAT: £95.99

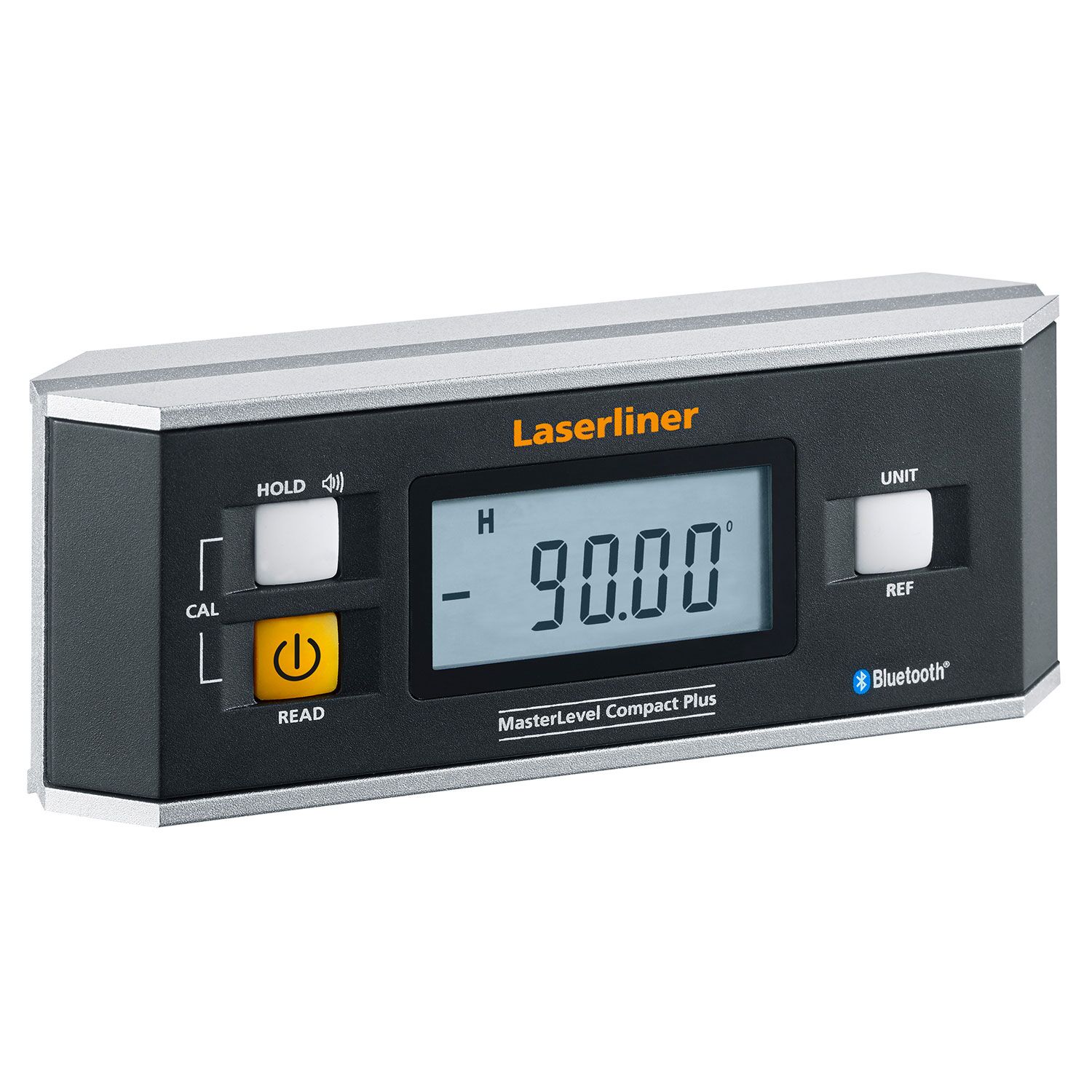

Laserliner MasterLevel Compact Plus
£119.99 Price incl. VAT: £143.99
Compact digital electronic spirit level with Bluetooth interface.
- Display accuracy: 2 decimal places
- Reference function
- Calibration function
- Illuminated rotational display
- Hold function
- Strong magnetic attachment
- Length: 16cm
Supplied with:
- Hard Carry Case | Battery
- 4 Year Warranty
Description
Additional features:
Supplied with:
Attachment
Strong magnets and v-grooves for pipes
Handy compact format
Illuminated flip display
Display automatically turns when overhead
Bluetooth interface
For measurement data transfer
Key Features
- Bluetooth interface for measurement data transfer
- Reference function for transferring angles
- FlipDisplay: the display automatically turns when overhead measurements are involved, so the illuminated display is readable under all conditions
- Calibration function to recalibrate the sensor and increase the measuring accuracy
| Overview | Applications |
|---|---|
| BLUETOOTH INTERFACE: For transferring angles | Construction |
| MEASUREMENT ACCURACY: electronic slope – ± 0,05° at 0° & 90°± 0,1° at 1° to 89° | Tradesmen |
| DISPLAY ACCURACY: 2 decimal places | DIY enthusiasts |
| POWER SUPPLY: 2 x 1,5V (Typ AAA / LR03) |
MasterLevel Compact Plus
Documentation
View and download this product’s brochure, datasheet, and manual in PDF format
Additional information
| Brand |
Laserliner |
|---|---|
| Please choose |
Plus 25cm ,Plus 40cm ,Plus 60cm ,Plus 80cm ,Plus 100cm ,Plus 120cm |
Product Specification
Product Specification
| MEASUREMENT PRECISION electronic slope: | ± 0,05° at 0° and 90° ± 0,1° at 1° … 89° |
| DISPLAY ACCURACY: | 2 decimal place |
| OPERATING CONDITIONS: | 0 to 50°C, 85%rH, no condensation, max. altitude 2000 m |
| STORAGE CONDITIONS: | -20 to 70°C, 85%rH, no condensation |
| RADIO MODULE OPERATING DATA: | Bluetooth LE 4.x interface; Frequency band: ISM band 2400–2483.5 MHz, 40 channels; Transmission power: max. 10 mW; Bandwidth: 2 MHz; Bit rate: 1 Mbit/s; Modulation: GFSK/FHSS |
| POWER SUPPLY: | 2 x 1,5V (Typ AAA / LR03) |
| DIMENSIONS (W x H x D): | 152 x 60 x 30 mm |
| WEIGHT with batteries: | 290 g |
