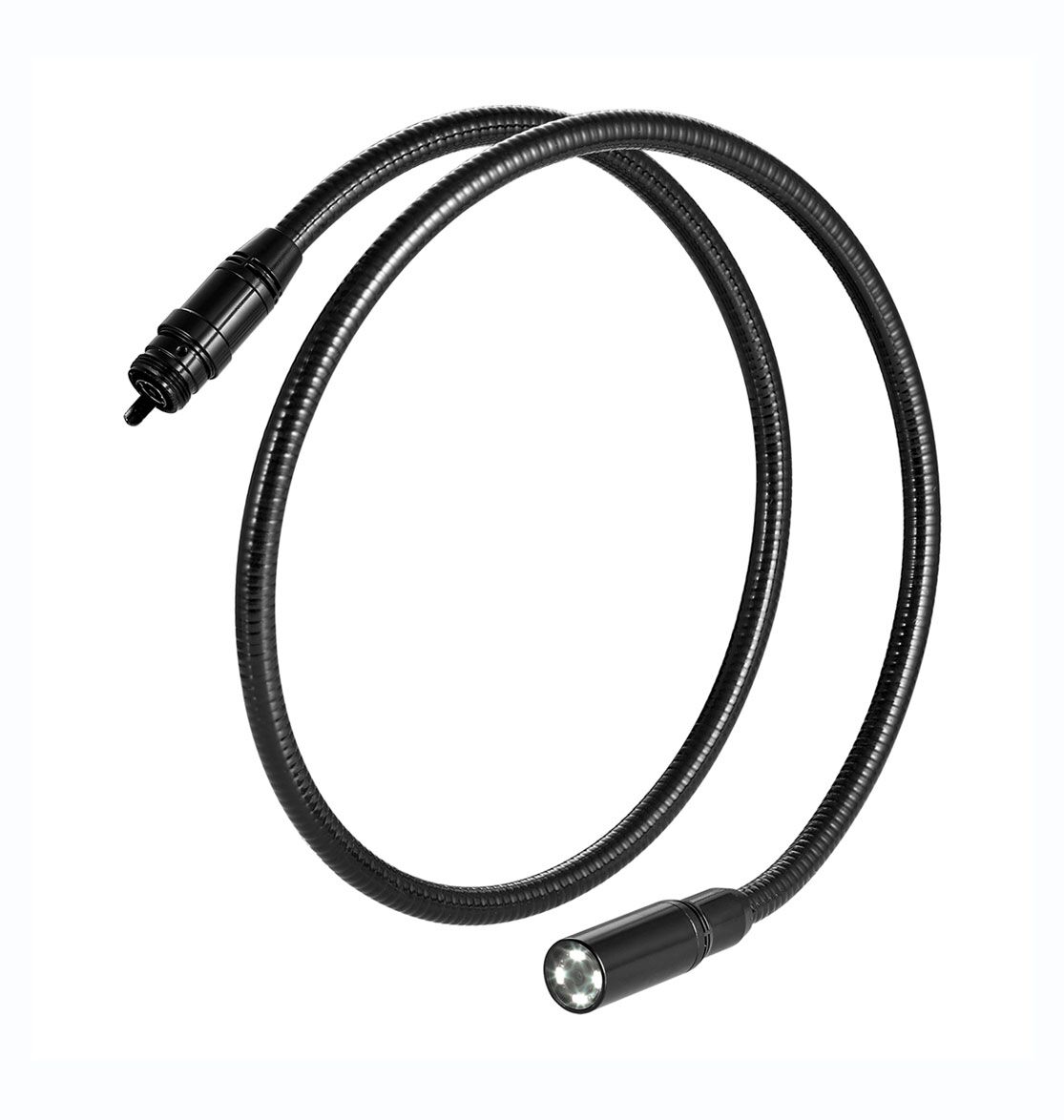

Laserliner MaxView Camera

£169.99 Price incl. VAT: £203.99

Camera unit for VideoFlex with large depth of field & high intensity LEDs

  • Large depth of field
  • 17mm head
  • Focus 2 – 30cm
  • IP67 rated

Supplied with:

  • 4 Year Warranty
Compare
Description

Camera unit for VideoFlex with large depth of field & high intensity LEDs

  • Camera unit for VideoFlex

  • Large camera head for good view due to large depth of field

  • 4 high-performance, high-intensity LEDs on the camera for powerful object lighting

  • For inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles

  • Waterproof camera head & cable

  • Compatible with G4

Supplied with:

  • MaxView Camera
  • 4 Year Warranty
Laserliner MaxView Camera - illustration 01
Laserliner MaxView Camera - illustration 02
Laserliner MaxView Camera - illustration 03
MaxView Camera - quick connection

Quick Connection

MaxView Camera - waterproof - camera head and cable

Waterproof camera head & cable

MaxView Camera - large depth of field

17mm measuring head

With large depth of field – 2 – 30 cm

Laserliner XXLCamera G3 - led lighting

Large camera head with LED-Lighting

Key Features

  • Large camera head with large depth of field giving good view
  • Powerful object lighting for inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles

  • Waterproof camera head & cable

  • Camera unit compatible with VideoFlex  G4

MaxView Camera
17mm camera head
Focal depth 2 – 30 cm
640 x 480 camera resolution
IP67 waterproof
Operating temperature 0 – 60°C

MaxView Camera
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Laserliner

Product Specification

Product Specification

Laserliner MaxView Camera
CAMERA TYPE CMOS Image Sensor
CAMERA HEAD  ø 17 mm, IP 67 (water resistant)
CAMERA HEAD LEDs 4
CAMERA RESOLUTION 640 x 480 pixels
FIELD OF VIEW (FOV) 57°
CAMERA FOCUS F2 cm – F30 cm
CABLE DIAMETER 9.5 mm
LENGTH OF FLEX CABLE 1.5m
MINIMUM BENDING RADIUS 75 mm
OPERATING CONDITIONS 0°C … 60°C, max. humidity 20 … 90% rH, no condensation, max. working altitude 4000 m above sea level
STORAGE CONDITIONS -20°C … 80°C, max. humidity 80% rH
DIMENSIONS 1580 mm x 18 mm x 18 mm
WEIGHT 298 g
