Laserliner PocketPlane-Laser 4G - Scope of Delivery

Click to enlarge

Laserliner PocketPlane-Laser 4G - Kit in Hard Case

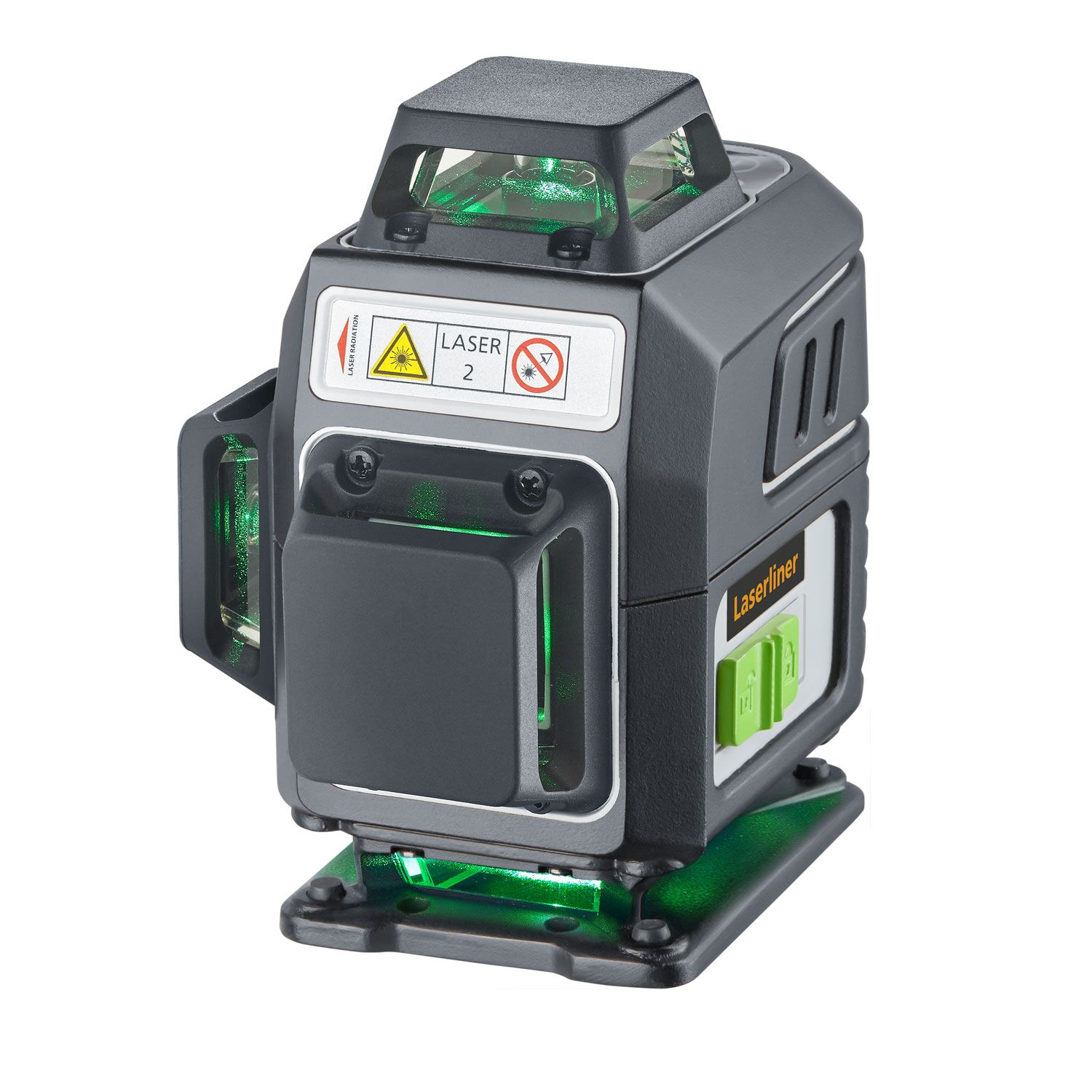

Laserliner PocketPlane-Laser 4G

£319.99 Price incl. VAT: £383.99

Two horizontal & two vertical laser circles
Particularly suited to applications close to the floor
Plumb function
Horizontal and vertical automatic levelling
Manual slope mode for gradients
Out-of-level indication
GRX-Ready: Optional laser receiver with a detection range of up to 40m

Supplied with:

Pocket Wall Holder | Tripod Adapter
Green Laser Glasses | Green Target Plate
PowerAdapter | Hard Case
4 Year Warranty

Compare

SKU: 036.705A Categories: Cross Line Lasers, Levelling & Line Lasers, Multi Line Lasers Tags: Laser levelling, Laserliner PocketPlane-Laser 4G, Layout Laser Level, Li-ion Battery Pack, Outdoor Laser Measure

Description

Three-dimensional, practical laser with two horizontal and two vertical green laser circles and a comprehensive range of accessories – particularly suited to alignment close to the ground

This three-dimensional, practical and highly visible green laser projects two horizontal and two vertical laser circles for precise alignment of objects. Thanks to the horizontal laser circle at the very bottom, the device is particularly suited to applications close to the floor, such as determining floor heights and aligning skirting boards. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is an extremely useful tool for demanding projects due its the comprehensive range of accessories. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread.

Supplied with:

PocketPlane-Laser 4G
Pocket Wall Holder | Tripod Adapter
Green Laser Glasses | Green Target Plate

PowerAdapter | Hard Case
4 Year Warranty

Laserliner PocketPlane-Laser 4G - 2 Horizontal and 2 Vertical Laser Lines

2 horizontal & 2 vertical laser circles

With green laser lines which are sharp, distinct and therefore clearly visible.

Laserliner PocketPlane-Laser 4G - Transport Lock

Multiple applications

With plumb function and manual slope mode for creating gradients.

Laserliner PocketPlane-Laser 4G - Laser Line Close to the floor

Ideal for applications close to the floor

Such as determining floor heights and aligning skirting boards.

Laserliner PocketPlane-Laser 4G Magnetic Mount

With PocketWallHolder

A multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread

Video Tutorial

Compact 360° laser level, specially designed for low-level & precise work. With a low positioned laser circle. it's ideal for determining floor levels & aligning skirting boards.

Laserliner
PocketPlane-Laser 4G
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner PocketPlane-Laser 4G – Datasheet

Laserliner PocketPlane-Laser 4G – Manual

Laserliner PocketWallHolder – Manual

Additional information

Brand	Laserliner

Product Specification

Visibility (Typical)*	Range up to 30m*
Accuracy	± 0.3 mm / m
Self-levelling range	± 3.5° (horizontal)
Levelling	Horizontal / vertical automatic
Power supply	Li-ion battery pack 3.7V / 4.0Ah / 14.8Wh
Operating time	with 3 laser levels: approx. 7 hours
Protection class	IP 54
Dimensions	103 mm x 106 mm x 76 mm
Weight	464 g (incl. battery pack)
Tripod thread	1/4″ & 5/8″
