Laserliner PowerPlane-Laser 3D Plus

£399.99 Price incl. VAT: £479.99

  • 3.5º self-levelling range

  • Tilt function for gradients

  • Optimised for working close to ceiling

  • Out of level indication, transport lock

  • RX-Ready: Optional laser receiver

  • Transport lock

Supplied with:

  • Clamp & Wall Bracket
  • Baseplate
  • Batteries & Mains Unit
  • Hard Case
  • 4 Year Warranty
Compare
Description

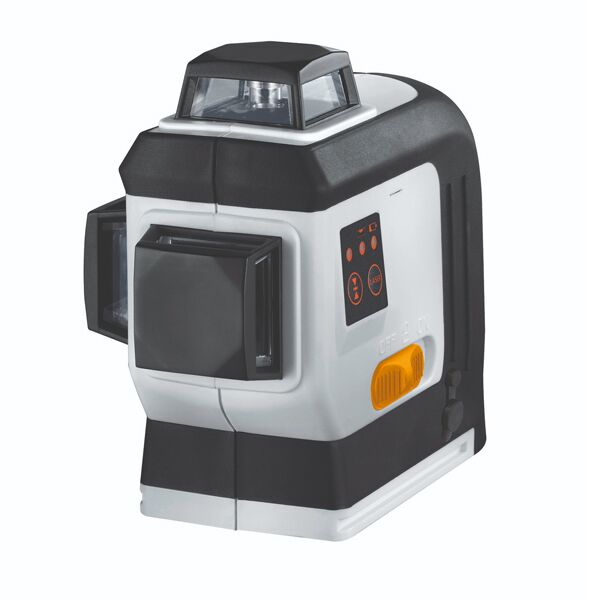

Three dimensional laser with three green 360º laser circles and magnetic clamp and wall bracket.

Automatic level, PowerBrightlaser with 3 extremely bright 360 degree laser lines and easy plumb function using laser crosses.

The magnetic clamp & wall bracket enables horizontal and vertical positioning. Ideal for mounting on drywall construction profiles optimised for work close to the ceiling

Can be used as a standalone device or combination. Tilt mode permits gradients to be laid out.

  • Out-Of-Level: Is indicated by optical and acoustic signals when the unit is outside its self-levelling range.
  • RX-Ready: The integrated hand receiver mode detects the laser lines with the optional laser receiver RX up to a max. of 40 m radius – ideal for all interior and exterior applications.
  • Mains operation possible using additional mains unit.
  • Transport lock: A pendulum lock protects unit during transport.

Supplied with:

  • Magnetic Wall Mount
  • Batteries
  • Hard Case
  • 4 Year Warranty
PowerPlane-Laser 3D Plus - laser lines
3 extremely bright 360 degree laser lines

PowerBright+ laser

3 extremely bright 360° laser lines.

Ideal for mounting horizontally & vertically on drywall profiles

Magnetic Wall Bracket

Ideal for mounting horizontally and vertically on drywall profiles.

Stand-alone device or in combination: clamp & wall bracket

Use device as stand-alone, or in combination

The magnetic bracket allows the unit to be used as a stand-alone device or in combination with other devices – on walls and attached to magnetic objects.

Optimised for work close to the ceiling

Magnetic Wall Bracket

Ideal for mounting on magnetic construction profiles, makes the height and position of the device easily adjustable.

Key Features

  • 3.5º self-levelling range

  • Tilt function for gradients

  • Optimised for working close to ceiling

  • Out of level indication, transport lock

  • RX-Ready: Optional laser receiver

  • Transport lock

Range: 20 m (up to 40 m with optional receiver) Electricians, HVAC
Levelling accuracy ± 0,2 mm / m Carpenters
Self-levelling range ± 2.5 ° Plasterers
Battery type: 4 x 1.5V alkaline Decorators, painters
Water & dust protection IP54

PowerPlane
-Laser 3D Plus
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Laserliner

Product Specification

Product Specification

Cross-line laser 3 extremely bright 360° laser lines
Levelling accuracy ± 2 mm  / 10m
Self-levelling range ± 2.5°
Laser wavelength 635 nm, class 2
Battery type 4 x 1.5V alkaline batteries
Operating time 3 lines 4 hrs | 2 lines 10 hrs | 1 lines 25 hrs
Protection class IP 54
Dimensions (ACL 2 XP) 85 x 130 x 155 mm (W x H x D)
Weight with batteries 875 g (without wall bracket)
Tripod thread Lino 1/4″ &  5/8″
