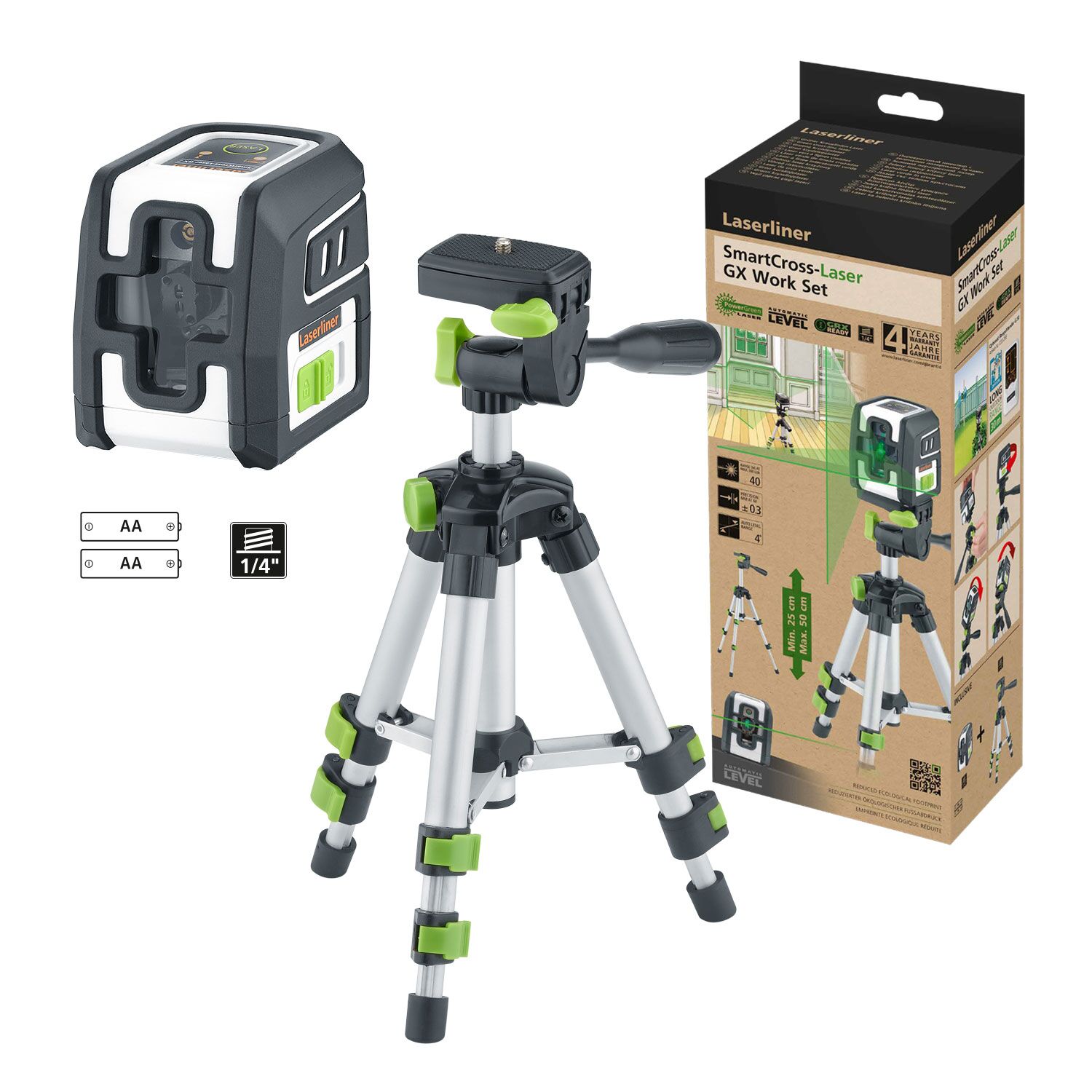

Laserliner SmartCross-Laser GX Work Set - Scope of Delivery

Click to enlarge

Laserliner SmartCross-Laser GX - Cross Line Laser

SmartCross-Laser GX Work Set

Name: SmartCross-Laser GX Work Set
Brand: Laserliner
SKU: 036.733E
Availability: InStock

£89.99 Price incl. VAT: £107.99

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. With automatic levelling, & manual slope function.

Supplied with:

SmartCross-Laser GX
45 cm Compact Tripod
2 x AA Batteries
Hard Case
4 Year Warranty

Add to Wishlist

Compare

Add to wishlist

Compare

SKU: 036.733E Categories: Cross Line Lasers, Levelling & Line Lasers Tags: Cross Line Laser, Laser levelling, Layout Laser Level, Outdoor Laser Measure, SmartCross-Laser GX, SmartCross-Laser GX Work Set

Description

Handy, green cross-line laser with excellent visibility, 1/4” thread, and a 45 cm compact tripod – recycled material is used for sustainability

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for easy creation of gradients and a ¼” thread for mounting on the 45 cm compact tripod supplied, making it ideal for low-to-the-ground use. It has multi-section telescopic legs and a three-way tripod head for inclining, lowering, and tilting. The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode. The housing of the laser is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic
Accurate horizontal and vertical alignment of objects
Good visibility through green laser technology
Easy alignment of slopes with manual tilt function
Light and robust compact 45 cm tripod, ideal for ground level applications
3-way tripod head for inclining, lowering and rotating the measuring tool

Supplied with:

SmartCross-Laser GX
45 cm Compact Tripod
2 x AA Batteries

Hard Case
4 Year Warranty

Video Tutorial

Cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. Comes with 45 cm compact tripod supplied, making it ideal for low-to-the-ground use.

Laserliner SmartCross-Laser GX - Projects Green Laser Cross

Highly Visible Laser Lines

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for easy creation of gradients

Laserliner SmartCross-Laser GX - Automatic Level

Easy alignment of slopes

Permits gradients to be laid out.

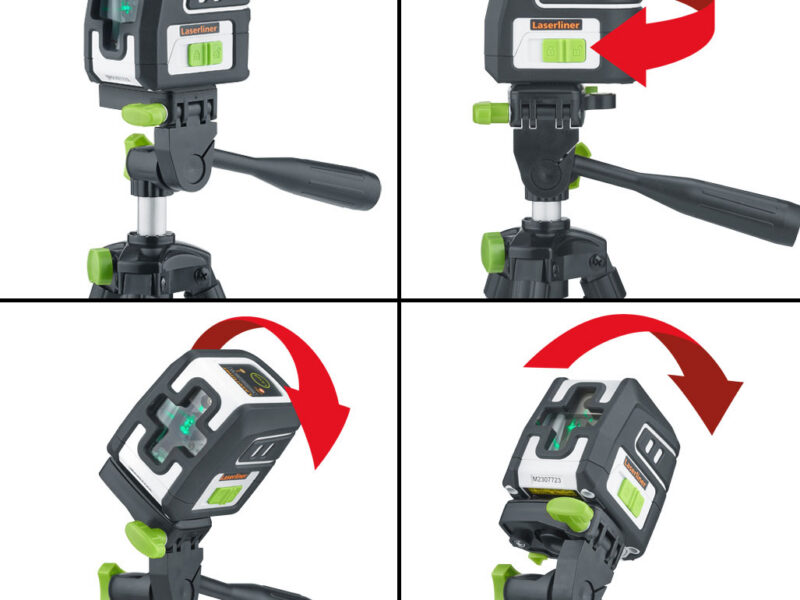

Laserliner SmartCross-Laser GX - Three Way Tripod Head

Supplied with versatile 45 cm compact tripod

Making it ideal for low-to-the-ground use. It has multi-section telescopic legs and a three-way tripod head for inclining, lowering, and tilting.

Optional RangeXtender

The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode.

Laserliner SmartCross-Laser GX Work Set

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner SmartCross-Laser GX Work Set – Datasheet

Laserliner PocketCross-Laser 2G – Datasheet

Additional information

Brand	Laserliner

Product Specification

Self-Levelling	Range ± 4° (horizontal)
Accuracy	± 0.3 mm / m
Levelling	Automatic
Visibility	(Typical)* 40 m
Laser Wavelength	515 nm
Laser Class	2 / < 1 mW (EN 60825-1:2014/ A11:2021 / EN 50689:2021)
Power Supply	2 x 1.5V LR6 (AA)
Operating Time	approx. 6 hours
Operating Conditions	-10°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage Conditions	-20°C … 70°C, max. humidity 85% rH
Dimensions (W x H x D)	84 mm x 76 mm x 62 mm
Weight	276 g (incl. battery)
