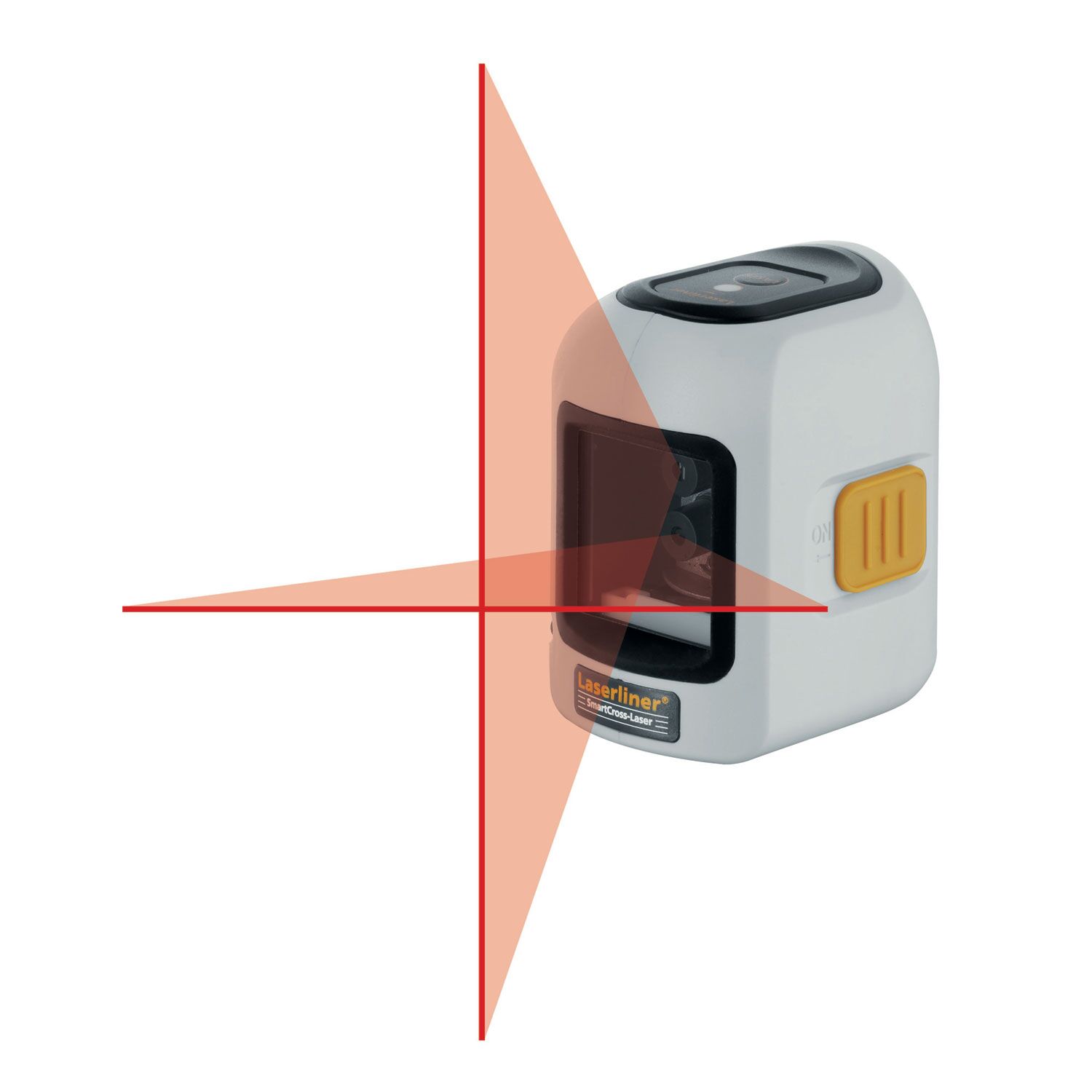

Automatic cross-line laser with additional slope function
- This unit produces 2 very visible laser lines which make it outstanding for the alignment of tiles, wall studding, windows, doors, etc.
- Automatic Level: automatic alignment by virtue of a magnetic pendulum system.
- Individually switchable laser lines
- Additional slope mode to align angled surfaces.
- RX-Ready: The integrated hand receiver mode detects the laser lines with the optional laser receiver RX up to a max. of 30 m radius
- Ideal for all interior and exterior applications.
- Out-Of-Level: is indicated by optical signals when the unit is outside its self-levelling range.
- Transport Lock: a pendulum
Supplied with:
Automatic cross line laser with additional slope function
Key Features
- Transport Lock: a pendelum lock protects unit during transport
- Individually switchable laser lines
- Automatic alignment by magnetic pendulum system.
- Slope mode to align angled surfaces
Overview | Applications |
---|---|
Automatic level | Tradesmen |
2 very visible, individually switchable laser lines | Painters & decorators |
Slope mode & out of level indication | DIY Enthusiasts |
Self-levelling range ± 5° | |
Accuracy ± 0.5 mm / m | |
Operating time: 15 hours (alkaline batteries) | |
Range 10m (indoors) |
SmartCross Laser
Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
