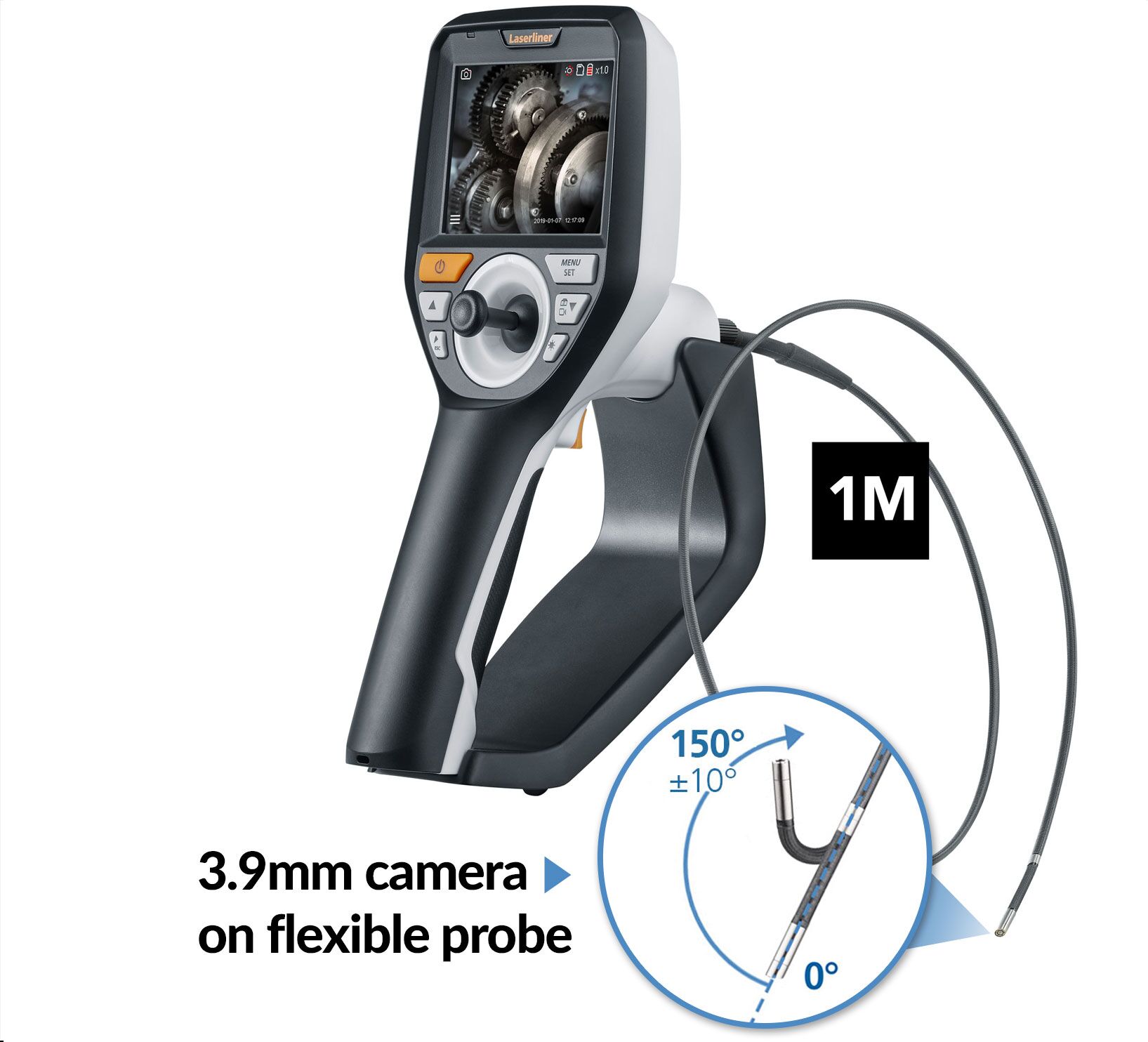

Laserliner VideoInspector 3D Micro

£3,299.00 Price incl. VAT: £3,958.80

Professional video inspection system with individually movable, extremely compact camera head for confined areas – 1m snake length

  • Manual 3D control | 3.9mm flexible camera | 1m snake length
  • REC function | HOLD function | Micro USB port | Rechargeable

Supplied with:

  • Li-ion battery pack | USB charge cable | HDMI cable
  • 8 GB micro-SD card | Card reader | Magnetic mount | Hard Case
  • 4 Year Warranty
Compare
SKU: 082.277A Category: Tag:
Description

Professional video inspection system with individually movable, extremely compact camera head for confined areas

The professional video inspection system with extremely compact camera head is ideal for precise visual inspections of small openings, for example in motor vehicles or machines. The watertight, movable camera head can be optimally adjusted for the location using the 3D control. Thanks to the object illumination with six high-performance ceramic LEDs, clear images can be achieved even under the worst conditions. The high-contrast TFT display rotates the image in 90° steps. The REC function can be used to record still images and videos for later analysis.

  • Extremely small camera head diameter – perfect for small openings
  • Easy problem localisation behind or in objects, walls, pipes, cavities
  • Clear images even under the worst conditions
  • Manual 3D control of titanium camera head which moves through max. 160°
  • Sturdy, durable adjustment mechanism
  • Powerful object lighting thanks to 6 high-performance ceramic LEDs
  • Image rotation in 90° increments
  • Image and video REC function on SDHC memory card
  • High-grade, long-life flexible tungsten tubing
  • Multilingual On-Screen-Display

Supplied with:

  • 1m snake
  • Magnetic Mount
  • Li-ion Battery Pack
  • USB charge cable
  • HDMI cable
  • 8 GB micro-SD card
  • Card reader
  • Screwdriver
  • Hard case
  • 4 Year Warranty
Laserliner VideoInspector 3D Micro 1m - Manual 3D Control
Laserliner VideoInspector-3D-Micro-One Handed Manual Controls

One handed manual 3D control

Manual 3D control of titanium camera head which moves through max. 210°

Laserliner VideoInspector 3D Micro - inspect hard to access areas

Ideal for difficult accessibly areas

Thanks to the very small measuring head (ø 6 mm)

Laserliner VideoInspector 3D Micro - very small measuring head

Very small measuring head (6 mm)

Find what is behind or in objects, walls circuits or cables etc

Laserliner VideoInspector 3D Micro - Magnetic Mount

Handy magnetic mount

And sturdy construction with durable adjustment mechanism

Laserliner VideoInspector 3D Micro - Video Tutorials

VideoInspector 3D Micro
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Laserliner

Product Specification

Product Specification

Camera head: Diameter Camera Head 3.9 mm
Illumination: 10 brightness levels
Camera focus: Depth of Focus (DOF) 3 … 10 cm
Camera focus: Field of View (FOV) 120°
Screen type: Screen Type 3,5″ TFT display
Camera resolution: Camera Resolution 960 x 720 pixels
Memory Micro-SD memory card up to 8GB
Resolution display: 640 x 480 pixels
Image Format: JPEG
Digital Zoom: 10 zoom levels
Length of flex cable: 1 m
Ports: Micro USB | Power supply 5V / DC
Power supply: Li-ion battery pack 3.7V / 3.2Ah
Operating temperature: -10 – 50°C
Storage temperature: -20 – 60°C
Weight (inc battery pack & flex cable / without mount): 0.625 kg
Warranty

Warranty

4 Year Manufacturer’s Warranty

Sales & Warranty Centre
Summary of Laserliner Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

Laserliner
All Laserliner products are covered by the manufacturers Warranty as stated with each item. Full details are included with the purchased goods, or available upon request. The purchaser is responsible for all carriage and other additional charges incurred when returning the goods to the company under any warranty arrangement.

Limitation of liability

The company shall not be held liable in respect of any loss or damage whether suffered by the purchaser or any customer of the purchaser and whether direct, indirect, consequential, or however else arising. In addition the company cannot be held liable for any loss or damage from defects arising after the goods have been accepted and checked by the purchaser, nor can the company be held liable for incidences of misuse, incorrect storage or improper handling. Any dates specified for the availability of the goods are approximate only and the company shall not be liable for any losses, costs, damages, charges or expenses caused by any delay in delivery of the goods.
