Leica DA300 – 1 Watt Smart Transmitter

£622.00 Price incl. VAT: £746.40

  • For use with DD300 Locator
  • Power Output up to 1 Watt max.
  • IP67 Rated
  • Transmitter modes: 131kHz / 83kHz / 33kHz / 8kHz / 512 Hz / 640 Hz / Auto
  • Battery 4 x LR20 Alkaline – Li-Ion as optional
  • Battery operating time 15 h

Supplied with:

  • DA300 Signal Transmitter
  • 3 year warranty
Compare
Description

 Handheld multi-frequency underground service locator

The Leica DD300 CONNECT utility locator uses industry-leading digital signal processing to identify underground assets deeper, faster and more accurately than any other system. Use the DD300 Cable Locator in conjunction with the DA300 Signal Transmitter.  The Leica DD300 CONNECT utility locator solution allows basic to expert users in the detection of underground pipes with ease-of-use, speed and accuracy, to improve safety by mitigating risks associated with anyone who is working on construction sites.

The Leica DD300 CONNECT offers a wide range of standard frequencies inclusing 83kHz, which bridges the gap from 33kHz to 131kHz.

Supplied with:

  • DA300 Signal Transmitter
  • 3 year warranty

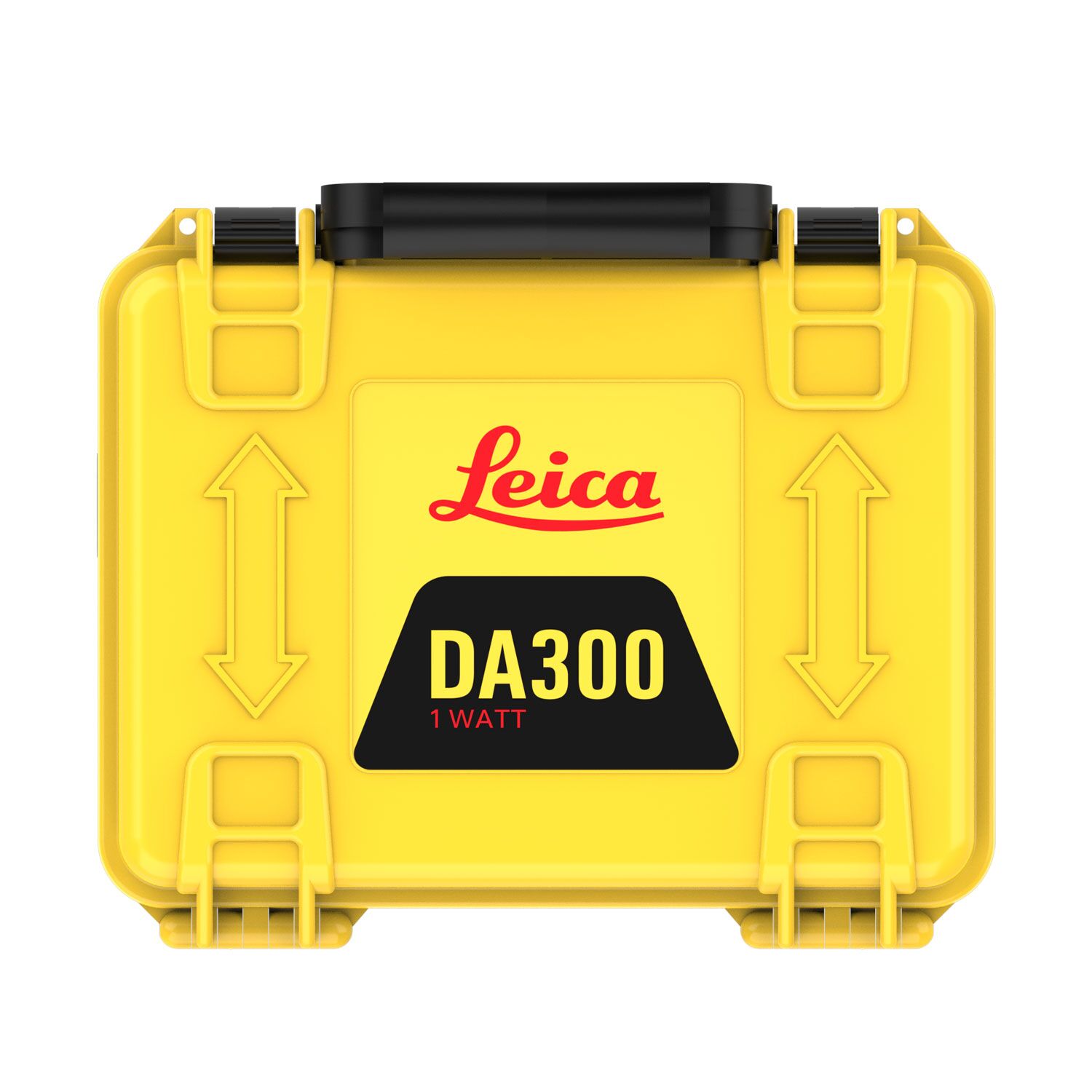

Leica DA300 Signal Generator - Front
Leica DA300 CONNECT - Application

Greater confidence with the DD CONNECT Utility Locator Solution

Connect and download data stored in the DD CONNECT utility locators’ internal memory, including GPS positioning and transfer it back to the DX Shield software for analysis. USB connectivity provides a convenient connection to DX Office Shield for product configuration, maintenance and data analysis.

Leica DD CONNECT Utility Locator Solution

The Leica DD CONNECT utility locators and DX Shield software open the door to a connected world, anywhere, anytime. Leica DD CONNECT utility locators detect underground assets deeper, faster and more accurately. Understand site activity and utility locator use in greater detail with DX Shield software. The DD300 CONNECT locator is scalable and designed with the latest Bluetooth technology, providing a wire-free connection to mobile devices.

Leica DD SERIES Video Tutorials

Leica DD300 CONNECT Utility Locator Solution
Leica DD SMART Utility Locators Solution
Leica DD SMART – Intro Video
Leica DD SMART Utility Locators Solution – Health Check
Leica DD SMART Utility Locators Solution – Transmitter connection
Leica DD SMART Utility Locators Solution – Sonde
Leica DD SMART Utility Locators Solution – Transmitter Induction

Leica DX SMART Locator

View and download this product’s brochure, datasheet, and manual in a PDF format

What is a Cable Locator and why do I need one?

HSE - Health & Safety Executive

HSG47: Avoiding danger from underground services

By law, breaking ground requires the use of a cable locating device to obtain accurate information about the location of buried utilities in order to protect employees and equipment during any excavation project.

Cable strikes result in unnecessary costs, reduces profit potential and introduces project delays.

This publication updates the guidance contained in the previous edition of HSG47 Avoiding danger from underground services. It outlines the dangers which can arise from work near underground services and gives advice on how to reduce the risk.

Additional information
Brand

Leica Detection

Product Specification

Product Specification



MODE

DD300 CONNECT

Power

50 / 60 Hz

Radio

15kHz to 60kHz

Auto

Power, Radio, 33kHz

Transmitter Modes

131.072 (131) kHz
83.078 (83) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz
640 Hz

Depth Range

Line 0.1m to 7m
4 inches to 23 feet
Sonde 0.1 to 10m
Sonde 4 inches to 32.8 feet

Depth Accuracy*

5%

Environmental Standard

IP65

Operating Temperature

-20 °C to +50 °C
-4 °F to +122°F

Battery

4 X LR20 Alkaline Battery – Li-Ion as Optional

Battery operating time ***

10 h

Dimensions (HxWxD)

765×290 x93mm
30.12 x11.42×3.66 inches

Weight with batteries

2.86Kg
6.3 lbs

Bluetooth

Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)

GPS

Chipset (1): u-blox®GPS
Receiver Type: GPS L1C/A, SBAS L1C/A,
QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s
typical, Hot 1 s typical

Memory capacity

8 GB internal memory

*Depth to an undistorted signal
*** Constant use at 20°C/68°F

MODE

DA300

Induction Mode Frequencies

32.768 (33) kHz / 8.192 (8) kHz

Power Output

Up to 1 Watt max.

Direct Connection Mode Frequencies

131.072 (131) kHz / 83.078 (83) kHz / 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz

Environmental Standard

IP67

Operating Temperature

-20 °C to +50 °C / -4 °F to +122°F

Storage Temperature

-40°C to +70°C, / -40°F to +158°F

Battery

4 x LR20 Alkaline Battery – Li-Ion as optional

Battery Operating Time

15 h

Dimensions (HxWxD)

250 x 206 x 113 mm / 9.84 x 8.11 x / 4.45 inches

Weight with batteries

2.46Kg / 5.42 lbs
