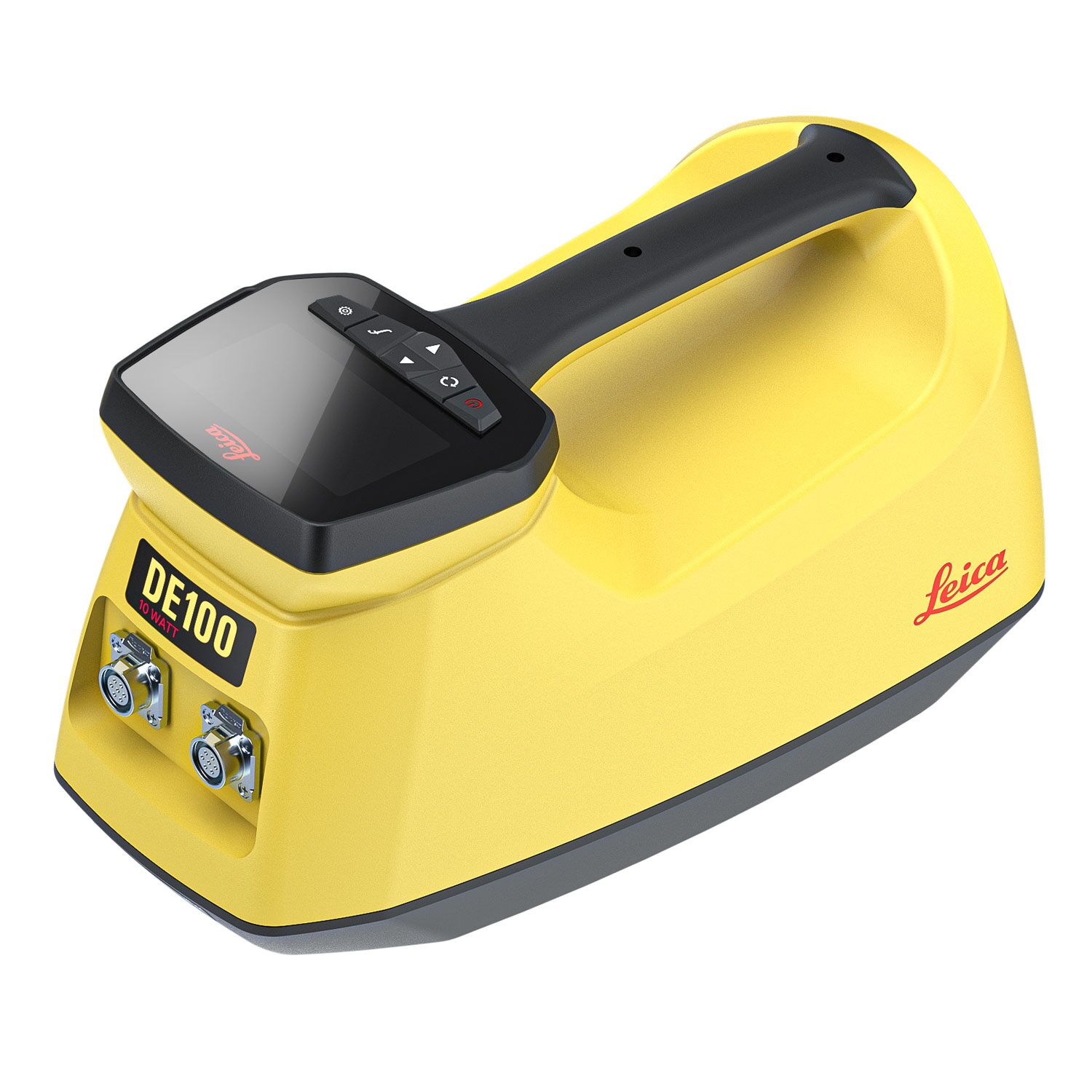

Leica DE100 – 10 Watt Signal Transmitter
- For use with DT100 Locator
- Power output up to 10 watt max. (1 watt above 45kHz)
- IP65 Rated
- Frequency range: 256Hz – 200kHz
- Battery 8 x LR20 Alkaline – Li-Ion Battery Pack 6400 mAh
- Battery operating time (lithium): 17 hours continuous
Supplied with:
- DE100 Locator
- 3 year warranty
Description
Leica DT100 & DE100 Video Tutorials
Leica DT100 system is integrated with the DE100, a 10-watt signal transmitter capable of delivering up to 1A of maximum current, enhancing signal transmission along utilities. It features dual output ports, allowing for the connection of two accessories simultaneously. The preferred accessory can be selected with the press of a single button.
Furthermore, thanks to the information showed on the embedded display, it is possible to immediately evaluate whether the signal flow correctly whithin the utility.
Everything you need, is in one bag
The new Leica DT100 and DE100 system is equipped with all the accessories necessary to carry out field work.
From the connections leads with removable head, to the availability of 2 different earth poles, passing through a clamp that can be used both as a transmitter clamp and as a receiver clamp, there is everything you need to be able to carry out your construction site activities without worrying about carrying other instruments in the field.
OPTIONAL ACCESSORY FOR USE WITH THE DT100:
Leica Zeno FLX100 plus Smart Antenna
GNSS ANTENNA FOR MAPPING
Aim for accurate location on iOS, Android and Windows with the compact Leica Zeno FLX100 plus Smart Antenna.
Capture spatial data in a simple and flexible way. Use the setup that fits your workflow: be it on a survey pole for high accuracy data or with the Universal Handheld tray. The FLX100 plus can be paired with your own smartphone or tablet providing freedom of choice to work the way you want.
CONTACT US TO FIND OUT MORE:DT100 & DE100 - Precision Locator Solution
View and download this product’s brochure, datasheet, and manual in a PDF format
What is a Cable Locator and why do I need one?
Cable strikes result in unnecessary costs, reduces profit potential and introduces project delays.
This publication updates the guidance contained in the previous edition of HSG47 Avoiding danger from underground services. It outlines the dangers which can arise from work near underground services and gives advice on how to reduce the risk.
HSG47: Avoiding danger from underground services
By law, breaking ground requires the use of a cable locating device to obtain accurate information about the location of buried utilities in order to protect employees and equipment during any excavation project.
Additional information
| Brand |
Leica Detection |
|---|
Product Specification
Product Specification
|
MODE |
DT100
|
|---|---|
|
Factory Standard Frequencies |
– Power: 50,60, 150, 180, 450, 540 – Grouped Power: 50,60 (+odd harmonics up to ~1.1kHz) – Cathodic: – 120Hz for 60Hz – 100Hz for 50Hz – Active: 256, 263, 440, 512, 560, 577, 640, 815, 870, 940, 1.02k, 1.17k, 3.14k, 4.1k, 8.01k, 8.19k, 9.82k, 12.1k, 16.3k, 22.5k, 29.4k, 32.8k, 44.5k, 66.1k, 88.8k, 99k, 132k, 200k – Sonde: 512, 640, 8.19k, 32.8k |
|
Radio |
3kHz – 28kHz
|
|
Frequency Range |
50Hz – 200kHz |
|
Sensitivity |
33kHz (1μA at 1m)
|
|
Dynamic Range |
117dB |
|
Max Automatic Depth |
6m / 20ft
|
|
Max Pushbutton Depth |
11m / 36ft |
|
Locate Accuracy |
±5% depth
|
|
Dynamic Overload Protection |
60dB (automatic) |
|
Depth Accuracy |
– In line ±5% to 3m / – In line ±5% to 10ft
|
|
Locate Direction |
Any frequency from 256Hz to 10kHz |
|
Fault-finding DE based |
263Hz
|
|
Active Locate Mode |
Twin | Single Peak | Null | Twin Sweep (Omnidirectional) | Single Sweep (Omnidirectional) |
|
Gain Control |
Manual gain using “↑” or “↓” buttons
|
|
Alerts |
Strike Alert | Swing Warning | Overead Cable |
|
Frequency Analyzer |
Determines the best frequency option based on environmental interference
|
|
Autoshutdown |
Selectable via settings menu |
|
Fault-finding DE based |
263Hz
|
|
Locate Direction |
Any frequency from 256Hz to 10kHz |
|
Backlight |
Selectable via settings menu
|
|
Environmental Standard |
IP65 Waterproof |
|
Operating Temperature |
-20 °C to +50 °C
|
|
Battery |
Li-Ion Battery Pack 3200mAh – 11.1V, 35.5Wh 6 X AA Alkaline Battery |
|
Battery operating time *** |
– With Lithium: 15 hours continuous – 30 intermittent
|
|
Dimensions (HxWxD) |
68×14.7×32.6 cm – 26.7×5.8×12.7 in |
|
Weight with batteries |
2.1kg – 4.8lbs
|
|
Bluetooth |
Bluetooth low energy (BLE) |
|
GPS |
Chipset (1): u-blox®GPS
|
|
Memory capacity |
8 GB internal memory |
|
MODE |
DE100 |
|---|---|
|
Frequency Range |
256Hz – 200kHz |
|
Power Output |
Up to 10 Watt with Li-Ion battery (1Watt above 45kHz) |
|
Current Max. |
1A – (0.5A Above 45kHz) |
|
Voltage Max. |
90 V rms |
|
Factory Standard Frequencies (Hz) |
– Direct Connect and Clamp: 256, 263, 440, 512, 560, 577, 640, 815, 870, 940, 1.02k, 1.17k, 3.14k, 4.1k, 8.01k, 8.19k, 9.82k, 12.1k, 16.3k, 22.5k, 29.4k, 32.8k, 44.5k, 66.1k, 88.8k, 99k, 132k, 200k – Induction: all listed above starting at 3.14kHz |
|
Modes |
Direct Connect, Clamp and Induction |
|
Multimeter Function |
Watts, Current, Ohms and Volts |
|
Output |
Dual Output for Clamp and Direct Connect |
|
Locate Direction |
User enabled. Any frequency up to 10 kHz |
|
Protection & Warnings |
High voltage isolation |
|
Environmental Protection |
IP65 |
|
Operating Temperature |
-20 °C to +50 °C / -4 °F to +122°F |
|
Battery |
Li-Ion Battery Pack 6400 mAh – 14.8V , 94.7Wh 8 x LR20 Alkaline |
|
Battery Life |
– Lithium: 17 hours continuous – 34 hours intermittent |
|
Dimensions (HxWxD) |
21×19.3×38.1 cm – 8.3×7.6×15 in |
|
Weight with batteries |
3.6kg – 7.9lbs |
