Leica DSX Utility Detection Solution

£14,995.00 Price incl. VAT: £17,994.00

Leica DSX ground penetrating radar (GPR) system, utility detection solution with cutting-edge software that automates data analysis and creates a 3D utility map on the field.

CALL FOR PRICE OPTIONS:
0800 292 2188
FREEPHONE

Includes:

  • DSX Utility Detection System
  • CT1000 LTE Controller
  • CMS1000 Controller Mount System
  • LAN Cable | AB1000 Accessory Bag
  • GEB242 Battery | GKL312 Charger
  • GEV192-9 AC/DC Adaptor
  • GAS1000 Grid Assistance Square
Compare
Description

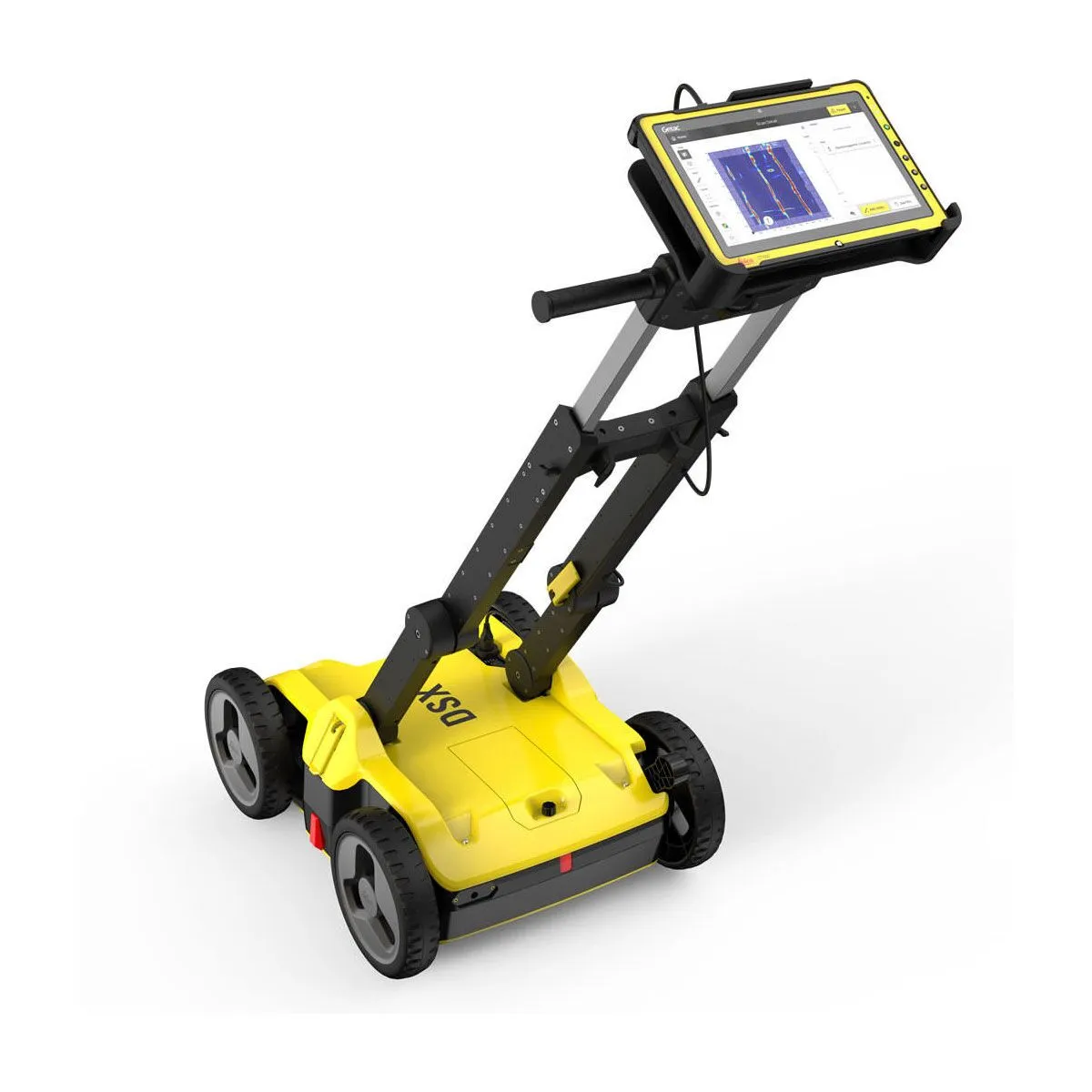

Introducing the Leica DSX Utility Solution

Reliable utility detection for everyone – simple detection workflow and results that anyone can understand

For utility repair and maintenance, civil engineering and surveying companies, the Leica DSX utility detection solution, consisting of a portable hardware with intuitive software allows to easily locate, visualise and map utilities. Unlike any other ground penetrating radar (GPR) system, the Leica DSX maximises productivity with cutting-edge software that automates data analysis and creates a 3D utility map on the field.

Leica DSX Utility Detection Solution - Screenshots

Ease of Use

  • Ensure smooth and accurate underground utility detection without expert knowledge
  • Complete utility detection and mapping in just a few steps through intuitive user interface
  • Scan anywhere and at any time, even in narrow areas and under severe conditions

Reliable Detection Results

  • Detect all types of underground utilities in high resolution to assure reliable avoidance zones
  • Verify detected utilities with support of smart algorithm
  • Import of POI’s and utility records to help you make better decisions

Instant 2D/3D Utility Map

  • Save your time on site by mapping underground utilities in just minutes
  • Export utilities in CAD or BIM-read formats for further usage
  • Create professional reports on site to be used and shared immediately

Integrated Solution

  • Offer a complete workflow from acquire to excavate
  • Locate underground utilities with survey-grade accuracy
  • Generate utility maps, compatible with all coordinate reference systems
  • Export, store, share and access data on major Cloud service providers
  • Maximize troubleshooting efficiency by sharing diagnostics data in real time

What’s new

B-Scan View

B-Scan View

Verify ground conditions, identify and mark ground anomalies, facilitate data interpretation and add additional layer of information to your detection project.

Quick Scan Mode

Quick Scan Mode

Use Quick Scan mode for a quick utility, anomaly and ground conditions check before a Grid Scan project.

Positioning System Integration

Positioning System Integration

Add positioning information to your detection projects, making them easier to integrate to plans and records, as well as export to machine control solutions.

Leica DSX Video Tutorials

Collect Information

Start by collecting utility records from utility company or local municipality. Upload them into DXplore. If possible, go to the site before the job to perform a visual inspection.

Map Utilites

Set up the grid in the area of interest and collect information about all underground utilities with Leica DSX and take advantage of automated and supported post-processing.

Excavate Safely

Mark out utilities in the field based on the map or, for even more efficiency, send the utility map directly to an excavator with Leica MC1 software or other Leica software.

Marking Utilities – Adding POI’s

Did you know that you can enhance your DSX project by adding Points of Interest (POIs), such as EML survey points, trenches, manholes and others?

Marking Utilities

With Leica DSX you can mark directly the utilities on the spot. Detect all types of underground utilities in high resolution.

Data Acquisition

Did you know that with Leica DSX can be guided through data acquisition in real-time when used with a GNSS antenna or a total station?

Leica DSX Utility Detection Solution

View and download this product’s brochure, datasheet, and manual in a PDF format

What is a Cable Locator and why do I need one?

HSE - Health & Safety Executive

HSG47: Avoiding danger from underground services

By law, breaking ground requires the use of a cable locating device to obtain accurate information about the location of buried utilities in order to protect employees and equipment during any excavation project.

Cable strikes result in unnecessary costs, reduces profit potential and introduces project delays.

This publication updates the guidance contained in the previous edition of HSG47 Avoiding danger from underground services. It outlines the dangers which can arise from work near underground services and gives advice on how to reduce the risk.

Additional information
Brand

Leica Detection

Options

DD120 Locator

,

DD120 DA220 Kit

Product Specification

Product Specification

HARDWARE SYSTEM

DSX Utility Detection System CT1000 Tablet
Central Frequency 600 MHz Display 11.6″
Detection Depth Up to 2.40m / 7.87ft Processor Intel® Core™ i3-7100U
Acquisition Speed Up to 7km/h or 4.3mph Memory RAM 4GB, 128GB SSD
Scan Interval (Grid Scan) 0.50m / 18in Operating System Windows 10 Professional
Positioning 2 encoders on wheels; GNSS antenna
integration (Surveyor kit only)
Positioning GPS (GlobalSat)
Environmental IP65 Environmental Sunlight readable display (LCD + Touchscreen
+ Hard Tip stylus)
IP65 / MIL-STD-810G
Weight 23kg (without battery and tablet) Weight 1.39Kg
Battery Li-ion 14.8V / 5800mAh
up to 8 hours operating time
Battery Li-Ion 11.4V / 2160mAh
Operating Temperature –10°C to +40°C / 14°F to 104°F Communications WiFi, Bluetooth v4.2, 4G LTE
(Model 880920)
RJ45 – connection to DSX
Warranty 2 years (extension CCPs available) Warranty 2 years Global Warranty Battery – 1 yr

SOFTWARE SYSTEM

DXplore Build Survey
Setup Animation tutorials
Status check (connection, battery level, etc.)
Project and draft management
GNSS and TPS connection wizard
GNSS/TPS aided project and grid definition workflow
Project management
Acquisition Grid Scan mode
DSX cart precise alignment mode
Quick Scan mode
Radar sensor control (scan and pause, etc.)
DSX cart position and scan trajectory displayed in 3D
Real-time scan trajectory from GNSS/TPS
Positioning Location from wheel encoders
Google Maps and current location support
Local coordinate system support
GNSS antenna and TPS support
Accuracy check in all screens
Geoid corrections
Process & Analysis On-site radar tomography generation
B-scan review and marking
3D tomography
POI support
Utility marking
Semi-automatic utility verification
Measure distance (Point to Point)
Utility depth calibration with user input
Georeferencing with positioning data
View Animation on tomography slices
Configure depth slices
2/3D view
Horizontal/Vertical scans
Contrast Slider
Back to utility
Lead to utility viewer
Import Utility records in DXF, DWG and ESRI shape file
Multiple layer support
Export Report in PDF format
PDF report configuration
Detected utilities in DXF format
Tomography in png, jpg, tiff, bmp, and gif format
B-scan
3D DXF/DWG
Output in selected local coordinate systems
MC1 (.lok supported)
WGS84 ellipsoid, reference ellipsoid, orthometric height
Warranty

Warranty

Leica Sales & Warranty Centre

3 Year Manufacturer’s Warranty

Summary of Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

LEICA Geosystems AG (LEICA Geosystems), warrants to the original end user (Customer) that this Product will be free from defects in workmanship and materials, under normal use two (2) years shall apply, and (ii) batteries for which ninety (90) days shall apply, unless such warranty period has been extended by LEICA Geosystems, and provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product.

The warranty period begins on the proved purchase date (or if applicable, date of delivery or date of acceptance report). LEICA Geosystems sole obligation under this express warranty shall be, at LEICA Geosystems sole option and expense, to replace or repair the Product or part, or refund the purchase price paid for the Product. LEICA Geosystems warrants any repaired or replaced Product or part for a period of ninety (90) days from shipment, or through the end of the original warranty, whichever is longer. All Products or parts that are replaced become the property of LEICA Geosystems. This express warranty does neither cover consumables, such as reflectors, bulbs and fuses, nor third party products.
For full details contact Leica Geosystems.

Limitation of liability

Leica Geosystems also excludes any liability, whether based in contract or tort (including negligence), for incidental, consequential, indirect, special, or punitive damages of any kind, or costs of procurement of substitute products by customer, or for the loss of revenue or profits, loss of business, loss of information or data, or other information or financial loss arising out of or in consequence with the sale, installation, maintenance, use, performance, failure, or interruption of this product, even if Leica Geosystems or its distributors have been advised of the possibility of such damages, and limits its liability to replacement, repair, or refund of the purchase price paid, at Leica Geosystems option. This limitation of liability for damages will not be affected if any remedy provided herein shall fail of its essential purpose.

HOW TO REGISTER YOUR PRODUCT

To claim your 3 year warranty you can register on the Leica Geosystems website.

Leica Approved Sales, Warranty & Repair Centre

As a main Leica Geosystems agent and warranty centre in the UK we can offer training, specialist product and advice and demonstration and trial of moisture measuring and surveying.

We also offer comprehensive telephone support and training including advice on which product would deliver the best value to you organisation and organizations business requirements.  We have a number of sales agents that are on the road visiting customers up and down the UK and these are available for onsite trial and demonstrations.
