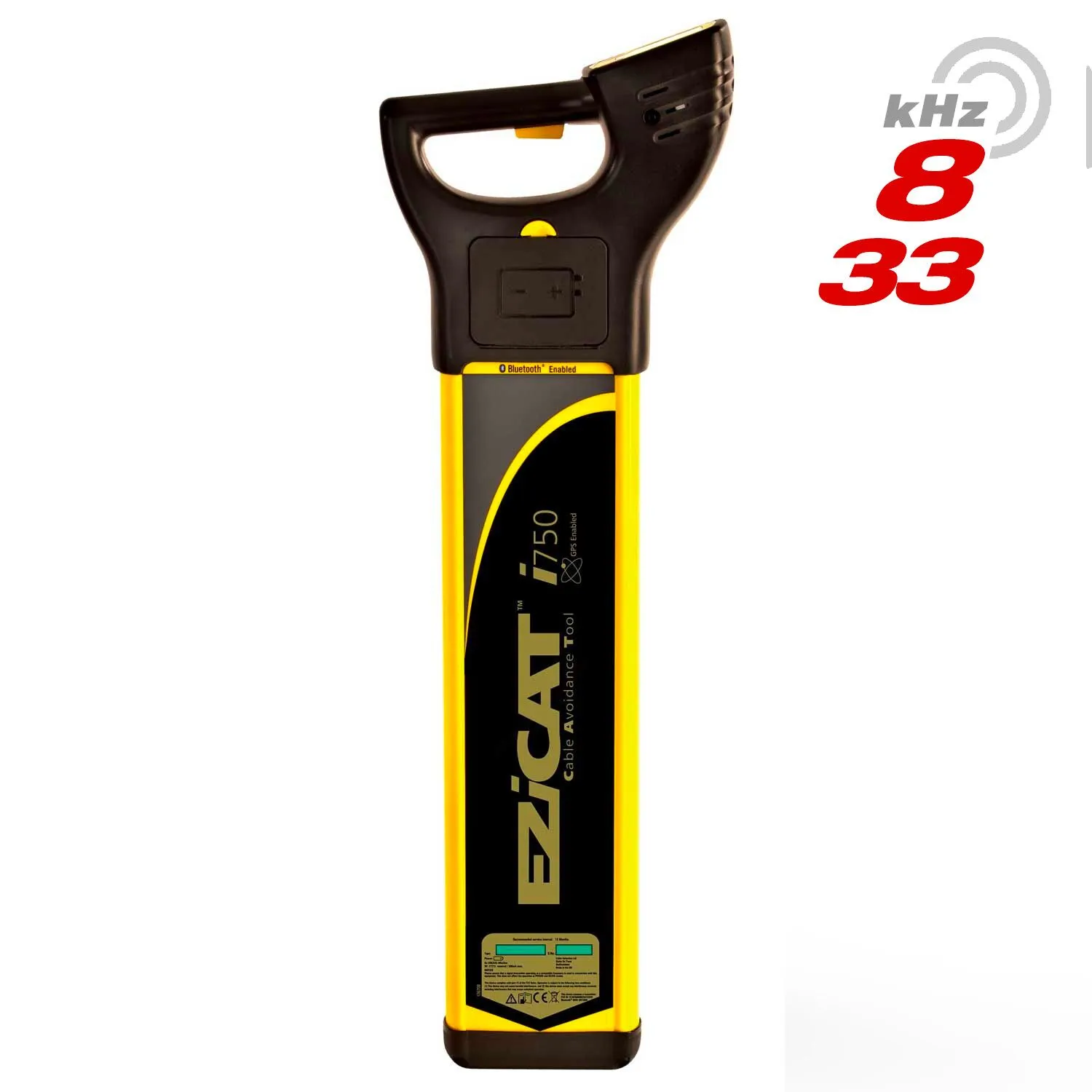

Leica EZiCAT i750

£812.50 Price incl. VAT: £975.00

SMART Technology: Depth Indication | Data Logging | GPS
8GB internal memory
Analyse data with LOGiCAT VU software
Depth Detection: 3m (9.99m with sonde)
IP66 Rated

Supplied with:

EZiCAT i750
2 year warranty

Compare

Add to wishlist

Compare

SKU: 813356 Categories: Cable & Pipe Locators, Leica Cable Locators Tags: Bluetooth, Cable Locator, EZiCAT i750, GPS, Smart Ready, Utility Locator

Description

World’s first SMART READY Cable Locator

Most advanced GPS locators delivering the where

Accurately locating underground utilities has never been so straightforward. The EZiCAT SMARTREADY locator delivers a true digital platform enhanced with GPS technology, data logging and Bluetooth® connectivity. Document where, when and how it has been used.

The highly intelligent EZiCAT i750 and EZiCAT i750xf locators have fully integrated GPS technology and data logging capability, smart information wherever, whenever you need. Identify skill gaps, increase user knowledge and reduce utility damage through the analysis of locator data.

Supplied with:

EZiCAT i750

2 Year Warranty

Leica EZiCAT i750 - features at a glance

GPS Positioning:

Every second the data logging feature records the locator’s activity tagged with a geographical position. The recorded data can be uploaded in the field through a mobile device and sent back to the office for post processing analysis.

Analyse with LOGiCAT VU:

LOGiCAT VU software offers a powerful tool for monitoring site operations. Analyse captured data; improve future use and team performance; and ultimately reduce costs and danger associated with utility damage.

Bluetooth Connectivity

Bluetooth wireless connectivity allows the EZiCAT i750 to integrate seamlessly with mobile mapping technology to log survey data, in addition to enabling wireless Bluetooth data transfer.

Data Logging

Record and store up to 80 hours of records. These logs can be transferred via Bluetooth to a PC for analysis. The locators are capable of storing approximately 80 hours of records.

Hazard Zone

The new feature which indicates the presence of a shallow buried service in power, 8 & 33 kHz modes, (within approximately 30cm) alerting users to the increased risk.

Power Mode (Default Mode)

Starts in Power Mode – ensuring the most potentially dangerous current carrying services are detected first for maximum operator safety.

Auto Mode

Automatically locates power or radio signals, helping to confirm the presence of services upon initial site occupation making cable detection easier and safer!

Radio Mode

Traces signals originating from distant radio transmitters. These signals penetrate the ground and are reradiated by buried conductive services.

Leica EZiCAT i750 Video Tutorials

Getting started with Cable Detection

Important points to consider before you start locating buried cables and pipes.

How to find underground utilities not giving off a signal

Using a signal transmitter to apply a signal to the utility in order to locate it with the CAT.

How to do a sweep search to locate underground cables and pipes

The most reliable way of detecting and pinpointing any buried cables or pipes.

How to locate & trace buried non-metallic cables & pipes using a Sonde

Non-metallic pipes don’t give off a detectable signal; this demonstrates the use of a sonde to trace the location of a utility.

How to locate or trace a specific buried cable or pipe

In areas where buried utilities are highly congested (e.g. city centres) this is a safe and easy method to identify what utility is running where.

Capture with GPS/GNSS

Every second the data logging feature records the locators’ activity tagged with a geographical position. The recorded data can be uploaded in the field through a mobile device and sent back to the office for post processing analysis.

Extract with Bluetooth

Seamless integration with 94% of mobile devices, reducing restriction of use & strengthening fleet utilisation.

Analyse with LOGiCAT VU

Analyse captured data using LOGiCAT VU software improving future use, team performance and ultimately reducing costs and danger associated with utility damage.

Key Features

Depth Indication
Data Logging
GPS positioning
8GB internal memory
Bluetooth DATA export
Depth Detection: 3m (9.99m with sonde)
IP66 Rated
Transmitter modes: 33kHz, 8kHz

Features	Popular with
Easily locate & trace utilities	Excavation contractors
SMART Technology: Depth Indication \| Data Logging \| GPS	Utility installation & repair contractors
Depth Detection: 3m (9.99m with sonde)	General contractors
Dust & water protection to IP66	Builders
Analyse data with LOGiCAT VU software	Gas & electricity companies
Highly visible digital LCD display	Cable TV companies
Robust light weight design	Pipe laying contractors

Leica EZiCAT i750 SMARTREADY

View and download this product’s brochure, datasheet, and manual in a PDF format

Leica EZiCAT i750 Data Sheet

Leica EZiCAT i750 Technical Data Sheet

Cable Avoidance User Training Handbook

What is a Cable Locator & why do I need one?

HSG47: Avoiding danger from underground services

By law, breaking ground requires the use of a cable locating device to obtain accurate information about the location of buried utilities in order to protect employees and equipment during any excavation project.

Download the official guidance >>

Cable strikes result in unnecessary costs, reduces profit potential & introduces project delays.

This publication updates the guidance contained in the previous edition of HSG47 Avoiding danger from underground services. It outlines the dangers which can arise from work near underground services & gives advice on how to reduce the risk.

Additional information

Brand	Leica Geosystems

Product Specification

FEATURES	EZiCAT 700 i-Series (i700 & i750)	EZiCAT 750xf
Frequency/ mode	Power 50 Hz or 60 Hz, Radio 15 kHz to 60kHz, Transmitter 8 kHz and 33 kHz, Auto = Power + Radio modes	Power 50 Hz or 60 Hz, Radio 15 kHz to 60kHz, Transmitter 8 kHz, 33 kHz, 512 Hz & 640 Hz Auto = Power + Radio modes
Depth estimation	Available on the i750 only 10% of depth in line or sonde mode Line & sonde modes – 0.3m – 3m depth range	10% depth in line or sonde mode Line mode – 0.3m – 3m Sonde mode – 0.3m to 9.99m
Typical depth detection range	Power mode to 3m, Radio mode to 2m, Transmitter mode – dependant on transmitter or sonde type
Radio	15kHz to 60kHz
Batteries	6 x AA alkaline (IEC LR6), supplied
Battery life	40 hours intermittent use (at 20°C)
Weight	2.7kg including batteries
Dimensions	760mm (H) x 85mm (D) x 250(W)
Protection	Conforms to IP54
Memory Capacity	8 GB internal memory
Environmental Standard	IP66
Bluetooth	Enabled
Compatibility	CSV file compatibility program
Memory size	64 MB memory
GPS type	Chipset*: u-blox®GPS, Technical Data: Type: L1 frequency, C/A code
GPS accuracy**	Position 2.5m CEP, SBAS 2.0m CEP
GPS start time	Cold 34s typical, Warm 34s typical, Hot 1s typical

*All data/information according to manufacturer u-blox®GPS; Cable Detection does not assume any liability whatsoever for such information

** Accuracy is dependant upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
