Description

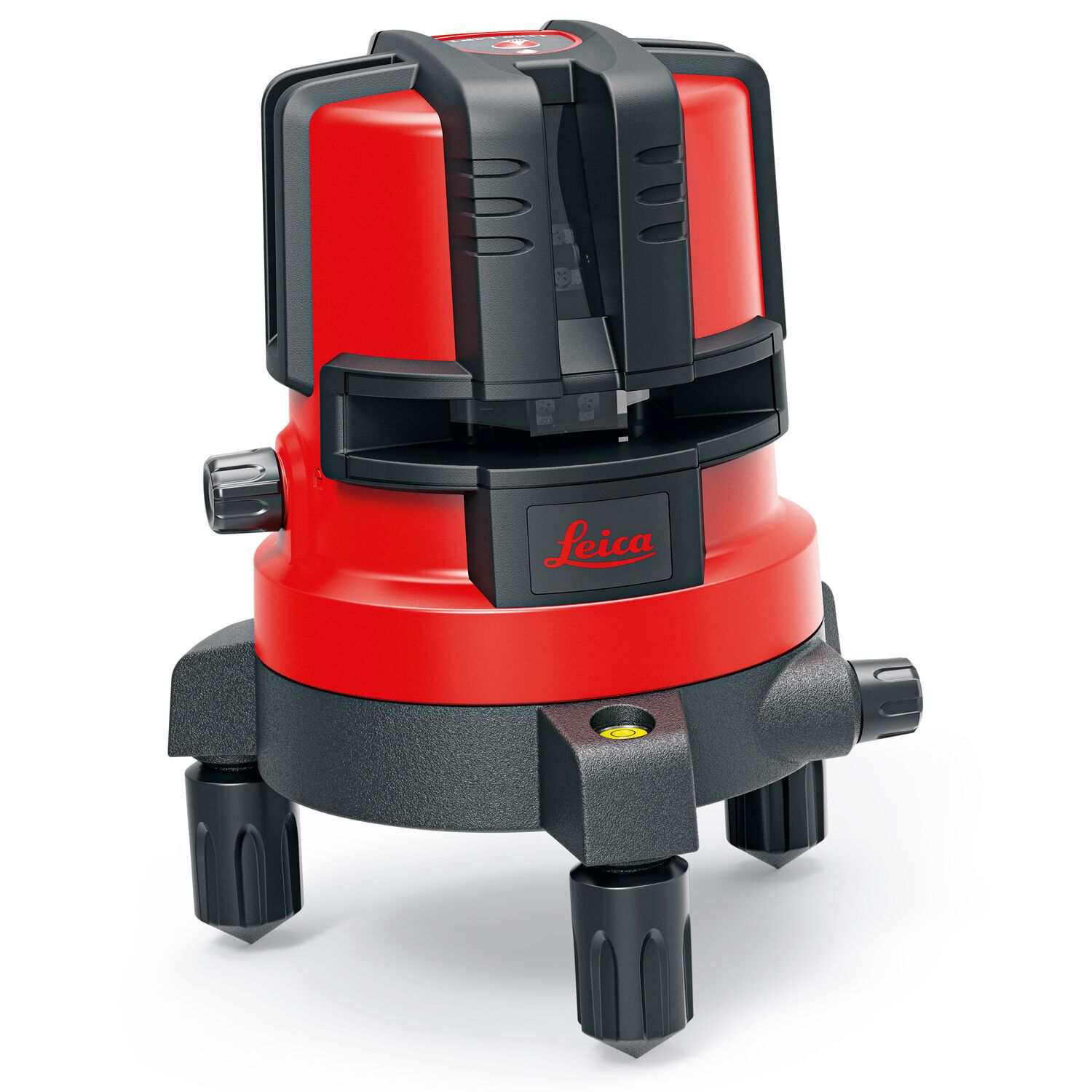

Powerful multi-line laser for precise high-speed layouts

Projects long, bright and fine lines. 5 point precision with 180° vertical/horizontal lines and handy plumb laser for easy floor to ceiling point transfer. Also ideal for simple 90° layout. For interior applications.

Supplied with:

  • Target Plate | Hard Case
  • Alkaline 4 x AA, 1.5V
  • Rechargeable NiMH Battery Pack | Charger
  • 3 Year Warranty
  • Range up to 15m > 80m with receiver
  • 4 red laser lines – horizontal & vertical – exact 90° angle
  • 1 red laser dot – exact 90° angle
  • Accuracy: ± 0.7 mm @ 10 m
  • Robust spray proof / dust protected IP54
  • Operating time: < 12h
  • Battery type: Lithium & Alkaline
Leica Lino L4P1 - at a glance
Leica Lino L4P1 - 24h battery life

24h battery life

On a single charge, so there’s no interruption of your workflow for battery charging. Plus the rechargeable Li- Ion saves you money.

Leica Lino L4P1 - 360 degree rotation base

360° rotation base for high-speed layouts

The L4P1 can be rotated 360° over a selected point. The precise fine adjustment supports quick targeting of the vertical laser Lines for high-speed layouts of whole rooms.

Leica Lino L4P1 - Smart Power

Smart Power

Li-Ion exchangeable with Alkaline, so you can easily exchange to standard Alkaline batteries if you forget to charge.

Leica Lino L4P1 - vertical and horizontal lines

180° vertical & horizontal line & 5 layout points

5 laser points, precisely aligned at 90°, make it easy to plumb, set out and transfer measured points. A large emergence aperture projects long lines.

Key Features

  • 180° vertical & horizontal line
  • 5 point precision
  • Handy plumb laser for easy floor to ceiling point transfer
  • Projects long, bright & fine lines
  • Precise projection of 90° angles
  • Line laser for interior use
  • 4 red laser lines – exact 90° angle
  • 5 red laser dots
  • Accuracy: ± 0.2 mm @ 1 m
  • Dust & spray water protected to IP 54
  • Battery type: Lithium & Alkaline
Features Popular with
Range up to 15m > 80m with receiver Electricians, HVAC
Levelling accuracy ± 0.2mm @ 1m Carpenters
Self-levelling range ± 3 ° Plasterers
Beam direction – vertical, horizontal Decorators, painters
Robust, construction site proof – protection class IP 54
Battery type: Lithium & Alkaline
Operating time: Lithium up to 24h

Leica Lino L4P1 Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Leica Geosystems

Product Specification

Product Specification

Range Range up to 20m* >100m with detector
Levelling accuracy ± 0.7 mm  / 10m
Self-levelling range ± 3°
Self-levelling time < 10 s
Number of laser lines 4 red laser lines – horizontal & vertical – exact 90° angle
Number of laser points 1 laser point – down
Fan angle 120°
Battery type Lithium & Alkaline
Operating time 10 hrs (Alkaline) 12 hrs (rechargeable)
Protection class IP 54
Dimensions 250 x 159 x 230 mm
Weight with batteries 2200 g
Tripod thread Lino 1/4″
Warranty

Warranty

Leica Sales & Warranty Centre

3 Year Manufacturer’s Warranty

Summary of Leica DISTO Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

3 year warrantyLEICA Geosystems AG (LEICA Geosystems), warrants to the original end user (Customer) that this DISTO Product will be free from defects in workmanship and materials, under normal use three (3) years shall apply, and (ii) batteries for which ninety (90) days shall apply, unless such warranty period has been extended by LEICA Geosystems, and provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product.

The warranty period begins on the proved purchase date (or if applicable, date of delivery or date of acceptance report). LEICA Geosystems sole obligation under this express warranty shall be, at LEICA Geosystems sole option and expense, to replace or repair the Product or part, or refund the purchase price paid for the Product. LEICA Geosystems warrants any repaired or replaced Product or part for a period of ninety (90) days from shipment, or through the end of the original warranty, whichever is longer. All Products or parts that are replaced become the property of LEICA Geosystems. This express warranty does neither cover consumables, such as reflectors, bulbs and fuses, nor third party products.
For full details contact Leica Geosystems, or go to www.disto.com/warranty

Limitation of liability

Leica Geosystems also excludes any liability, whether based in contract or tort (including negligence), for incidental, consequential, indirect, special, or punitive damages of any kind, or costs of procurement of substitute products by customer, or for the loss of revenue or profits, loss of business, loss of information or data, or other information or financial loss arising out of or in consequence with the sale, installation, maintenance, use, performance, failure, or interruption of this product, even if Leica Geosystems or its distributors have been advised of the possibility of such damages, and limits its liability to replacement, repair, or refund of the purchase price paid, at Leica Geosystems option. This limitation of liability for damages will not be affected if any remedy provided herein shall fail of its essential purpose.

HOW TO REGISTER YOUR PRODUCT

To claim your 3 year warranty you can register your DISTO on the Leica Geosystems website. The warranty extension is valid only if the device has been registered with www.disto.com/warranty  within 8 weeks of purchase
