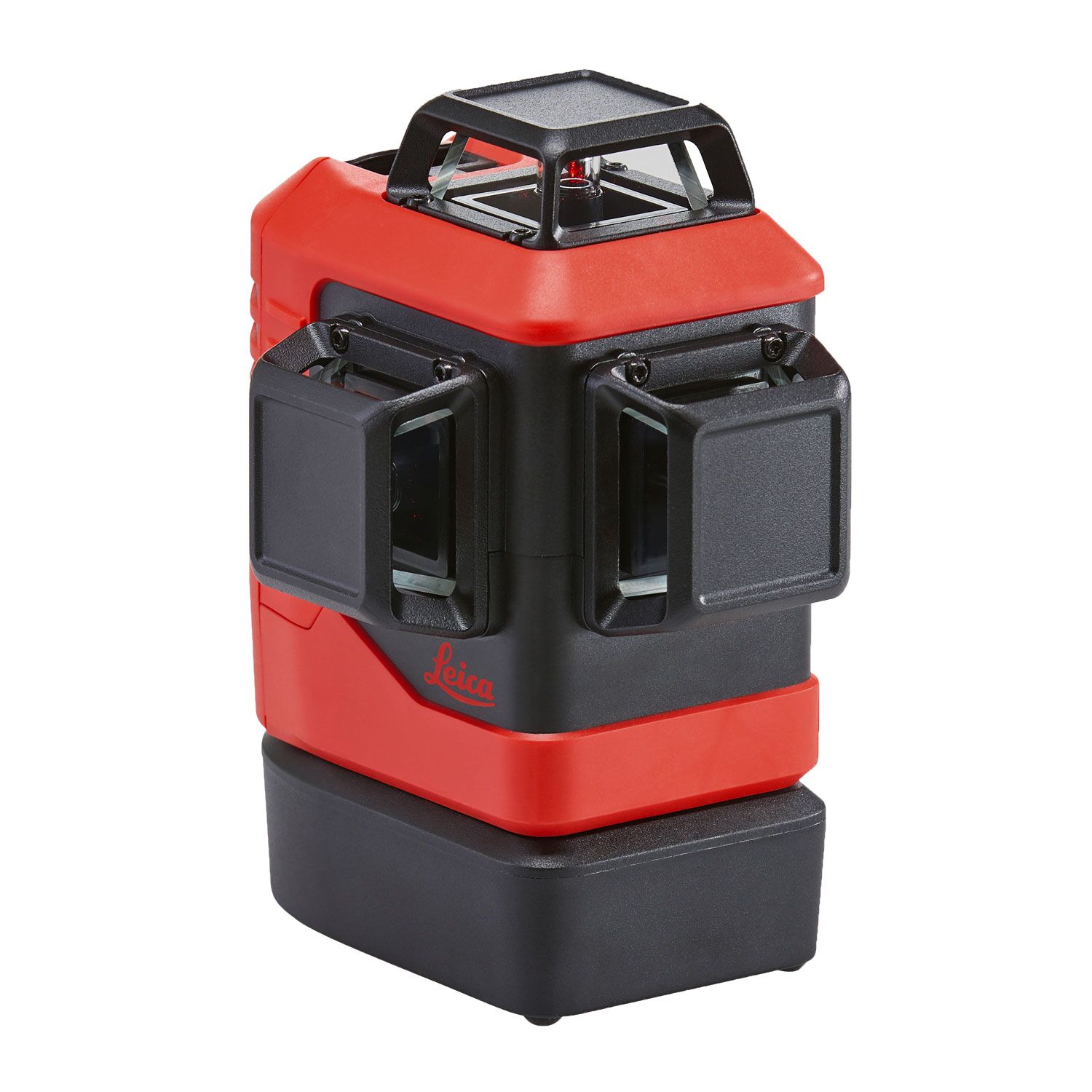

Leica Lino L6R
£360.00 – £625.00
- Range up to 25m (70 m with receiver)
- Horizontal & 2 vertical 360° red laser lines
- Self-levelling | Accuracy: ± 0.2 mm/m
- Robust spray proof / dust protected IP54
- Up to 36h operating time
- Battery type: alkaline/li-ion
Description
Continuous Working
Run your laser with Li-Ion, Alkaline or connect it to the power supply. Continue working with the smart triple power concept.
Leica Lino L6R Video Tutorials
Contents of the new Lino L6R Kit
Leica L6 vs Dewalt
Leica L6R vs L6G
Easy set up
The vertical laser lines projected to walls and ceilings are easily adjusted once the plumb point is set. The integrated base of the line laser allows you to position the cross section (plumb point) of the two vertical laser lines where required and then adjust the laser lines by ± 10° while keeping the position of the plumb point.
Magnetic adapters
Magnetic adapters allow you to position the instrument quickly and with absolute precision. Set-up the rotatable adapters over edges and profiles, attach it to iron pipes or various tracks and bars. The triple power concept allows for continuous operation of the line laser. It can be operated with Li-Ion and Alkaline batteries or alternatively with its charger.
Key Features
- 3 x 360° laser lines – thin, crisp & clearly visible
- Easy positioning & self-levelling (± 4°)
- Vertical laser lines rotate around set plumb point (± 10°
- Impact resistant rubber housing
- Twist 250 magnetic bracket
- UAL 130 wall-mount adapter
- Dust & spray water protected to IP 54
- Triple power option
| Features | Popular with |
|---|---|
| Range up to 25 m* (70 m with receiver) | Kitchen and bathroom fitters |
| Levelling accuracy ± 0.2mm @ 1m | Floor and wall tilers |
| Self-levelling range ± 4 ° | HVAC & plumbers |
| Beam direction – vertical, horizontal | DIY enthusiasts |
| Robust, construction site proof – protection class IP 54 | General construction |
| Battery type: Li-ion / Alkaline | |
| Operating time: up to 36 h |
Leica Lino L6R Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
Additional information
| Brand |
Leica Geosystems |
|---|---|
| OPTIONS |
Lino L6R Kit ,Lino L6RS Starter Kit |
Product Specification
Product Specification
| Range | up to 25 m* (70 m with receiver) |
| Levelling accuracy | ± 0.2 mm / m |
| Self-levelling range | ± 4 ° |
| Self-levelling time | < 3 s |
| Intersectional points | up, down, right, left, front, back (90° / 180°) |
| Beam direction | Horizontal 360° | Vertical 2 x 360° |
| Laser line width at 5m | < 2 mm |
| Laser type | 635 nm / class 2 (red) |
| Battery type | Lino Li-Ion battery pack 5200 mAh / 18.7 Wh or 3xAA Alkaline |
| Operating time | < 36h |
| Protection class | IP 54 |
| Dimensions |
110 × 60 × 100 mm |
| Weight with batteries |
781 g |
| Tripod thread Lino | 1/4 in (5/8 in with adapter) |
Warranty
Warranty
3 Year Manufacturer’s Warranty
Summary of Leica DISTO Manufacturers Warranty
EXPRESS WARRANTY FOR HARDWARE
LEICA Geosystems AG (LEICA Geosystems), warrants to the original end user (Customer) that this DISTO Product will be free from defects in workmanship and materials, under normal use three (3) years shall apply, and (ii) batteries for which ninety (90) days shall apply, unless such warranty period has been extended by LEICA Geosystems, and provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product.
The warranty period begins on the proved purchase date (or if applicable, date of delivery or date of acceptance report). LEICA Geosystems sole obligation under this express warranty shall be, at LEICA Geosystems sole option and expense, to replace or repair the Product or part, or refund the purchase price paid for the Product. LEICA Geosystems warrants any repaired or replaced Product or part for a period of ninety (90) days from shipment, or through the end of the original warranty, whichever is longer. All Products or parts that are replaced become the property of LEICA Geosystems. This express warranty does neither cover consumables, such as reflectors, bulbs and fuses, nor third party products.
For full details contact Leica Geosystems, or go to www.disto.com/warranty
Limitation of liability
Leica Geosystems also excludes any liability, whether based in contract or tort (including negligence), for incidental, consequential, indirect, special, or punitive damages of any kind, or costs of procurement of substitute products by customer, or for the loss of revenue or profits, loss of business, loss of information or data, or other information or financial loss arising out of or in consequence with the sale, installation, maintenance, use, performance, failure, or interruption of this product, even if Leica Geosystems or its distributors have been advised of the possibility of such damages, and limits its liability to replacement, repair, or refund of the purchase price paid, at Leica Geosystems option. This limitation of liability for damages will not be affected if any remedy provided herein shall fail of its essential purpose.
HOW TO REGISTER YOUR PRODUCT
To claim your 3 year warranty you can register your DISTO on the Leica Geosystems website. The warranty extension is valid only if the device has been registered with www.disto.com/warranty within 8 weeks of purchase
