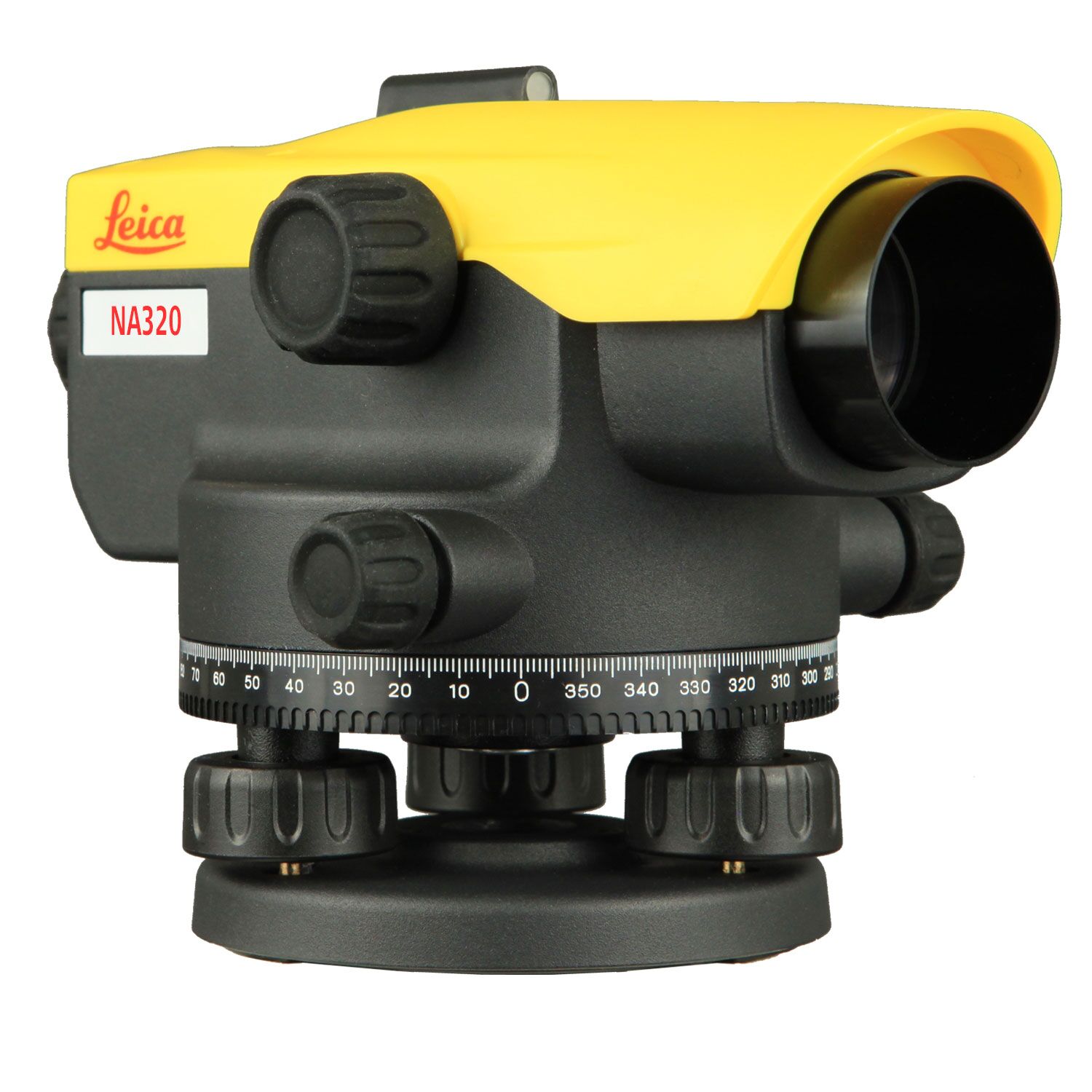

Leica NA300 Automatic Levels

£139.00£177.00

With the new, unique protective shape, the NA300 Series of rugged automatic (optical) builders levels are extremely robust and designed for the most challenging of site conditions. Leica NA300 Series levels have been engineered for daily levelling tasks. Whatever the need, these levels measure with the highest precision and accuracy.

Ensure you receive the highest quality results at the best price value!

  • Magnifcation options: 20 x / 24 x / 32 x
  • Easy & precise targeting
  • Horizontal circle with 360 division

Compare
Description

With the new, unique protective shape, the NA300 Series of rugged automatic (optical) builders levels are extremely robust and designed for the most challenging of site conditions. Leica NA300 Series levels have been engineered for daily levelling tasks. Whatever the need, these levels measure with the highest precision and accuracy.

Ensure you receive the highest quality results at the best price value!

  • Magnifcation options: 20 x / 24 x / 32 x
  • Easy & precise targeting
  • Horizontal circle with 360 division
Leica NA320 & Carry Case
Leica NA300 Series Application

  • Quick & accurate measurements
  • Easy & precise targeting
  • Minimum focus distance: < 1m
  • Horizontal circle with 360° division
  • Adjustable fine drive mechanism for easy, accurate targeting
  • Magnification: 20x
  • Unique protected shape & ergonomic design
  • Robust with water & dust resistant: IP54 protected
  • Designed for the most rugged sites & harsh conditions

Key Features

  • Easy to use
  • Quick & accurate measurements
  • 20x magnification options
  • Protected shape & ergonomic design
Features Popular with
Unique protected shape for rugged construction site use General contractors
Quick and easy measurements, perfectly engineered for daily levelling tasks Road constructors
Increased ergonomic handling Landscaper designers
Highly precise & accurate Carpenters
Ideal for the most rugged sites & the harshest conditions Scaffolders
Water resistant (IP54) outdoor use All structural workers
Budget-priced – high quality Formworkers

NA300 Series Documentation

View and download this product’s brochure, datasheet, & manual in a PDF format

Additional information
Brand

Leica Geosystems

NA300 options

Leica NA320 Automatic Level

,

Leica NA324 Automatic Level

,

Leica NA332 Automatic Level

Product Specification

Product Specification

Technical data Leica NA320 Leica NA324 Leica NA332

Standard deviation for 1 km double levelling (ISO17123-2)

2.5 mm

2.0 mm

1.8 mm

TELESCOPE Leica NA320 Leica NA324 Leica NA332

Telescope image

Upright

Magnification

20 x

24 x

32 x

Objective aperture

36 mm

Shortest target distance from instr. axis

<1.0 m

Field of view at 100 m

<2.1 m

Multiplication factor

100

Additive constant

0

COMPENSATOR Leica NA320 Leica NA324 Leica NA332

Working range

-± 15’

Setting accuracy (standard deviation)

<0.5’’

Sensitivity

8’/2 mm

HORIZONTAL CIRCLE Leica NA320 Leica NA324 Leica NA332

Graduation

360°

Graduation interval

Weight (net)

1.5 kg

Operating temperature range

–20° C to +40° C

Protection

IP54

Warranty

Warranty

PROTECT by Leica Geosystems

Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest  jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:

  • Lifetime manufacturer’s warranty
  • Certified quality
  • No cost period for repair and service
  • Swiss technology

The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems
