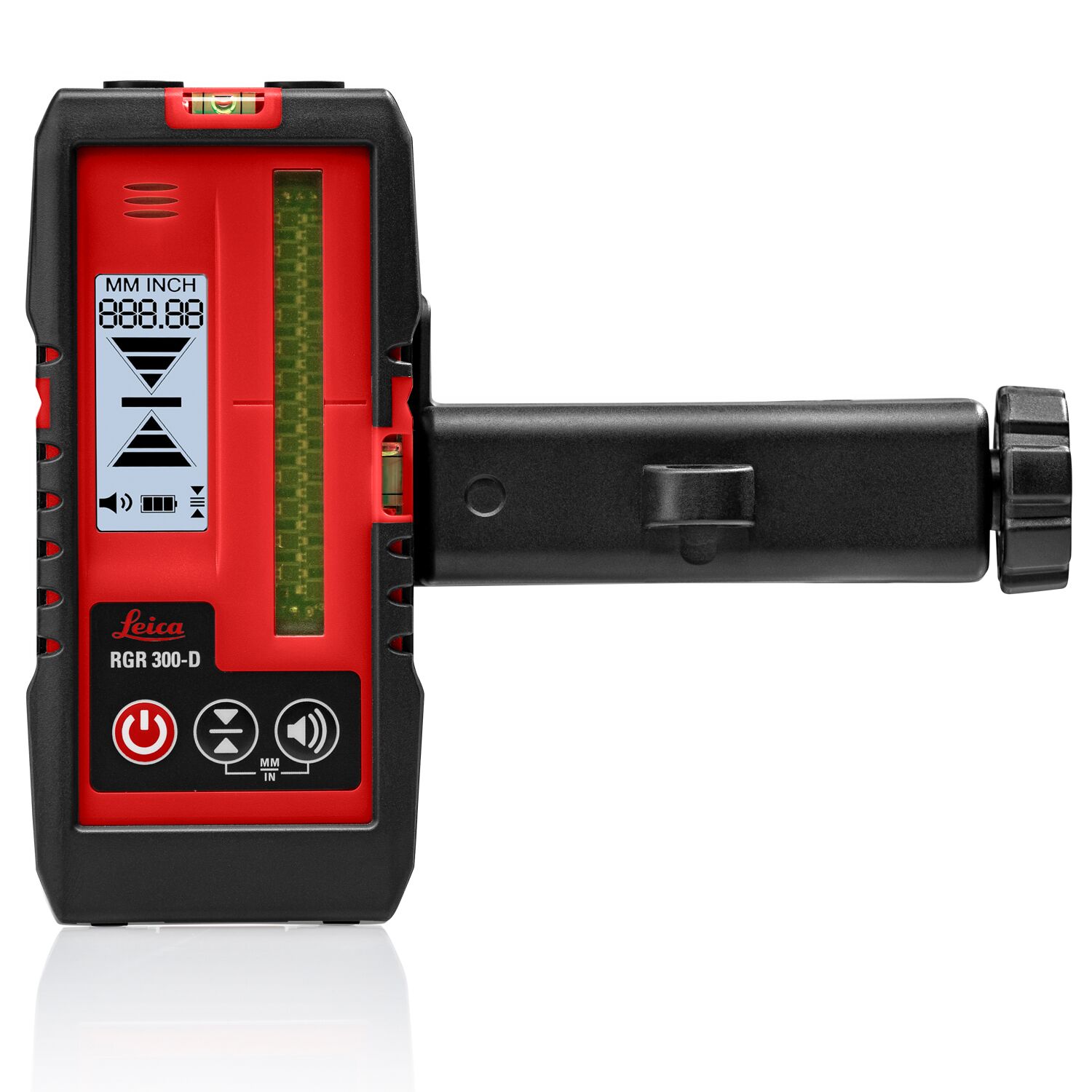

Leica RGR 300-D Receiver

  • Receiver for Red and Green Lasers
  • Extends distance range and wide coverage area of laser
  • Easy to set up and operate
  • Dual screens ensure an optimal view
  • Clear mm or inch guidance
  • Rugged, robust and waterproof
  • Battery powered and 3-year warranty
  • Compatible with L2, L2G, L2P5, L2P5G, L6R, L6G
Compare
Description
Digital Line Laser Receiver

Introducing the Leica LINO RGR 300-D Digital Line Laser Receiver

Receiver with digital read-out in mm or inch
◼ Increase range of Line Laser to 80 m
◼ Supports red as well as green laser models
◼ Two illuminated displays to allow reading from backside
◼ Large detecting area
◼ Compatible with all red and green line lasers operating at a 10kHz frequency,
ideally designed for use with Leica Lino L2, L2P5, or L6
◼ Acoustic feedback
One receiver for all! This versatile receiver detects red and green laser beams. With a range of up to 80m, front/back and side display. It’s also fully waterproof with Ip65 rating.

Compatible with L2, L2G, L2P5, L2P5G, L6R, L6G lasers.

Digital read-out in mm/inch

Clear guidance in millimetres or inches saves time and consistently ensures perfect accuracy.

Illuminated back and front LCD display

Our dual-screen system offers the flexibility to select the most convenient perspective, ensuring that the laser beam remains completely unobstructed.

Built-in magnets free your hands

The receiver’s built-in magnets enhances productivity with quick and secure attachment to any metallic surface.

Working range of up to 80 m

In large spaces, the Leica RGR 300-D minimises the need to reposition the laser by offering an extended laser range of up to 80 metres.

Designed for rough construction sites!

The Leica RGR 300-D ensures reliable performance in harsh conditions. It can withstand a drop of 1.2 metres and features an IP65 rating for dust and water resistance.

Leica 300-D Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Dimensions 115 × 43 × 23 cm
Brand

Leica Geosystems

Technical Specification

Technical Specification

Working range* 2 m – 80 m (6.6 ft – 262 ft)
Accuracy (switchable) ± 0.5 mm (± 0.02 in) / ± 2.0 mm (± 0.08 in) / ±5.0 mm (±0.19 in)
Detection window 85 mm (3.3 in)
Digital window range 60 mm (2.4 in)
Digital display range ± 25 mm (± 1 in)
Detection angle 45° @ 10 m (33 ft)
Detectable spectrum 635 ± 5 nm (red) / 525 ± 5 nm (green) class 2 acc. IEC 60825-1
Illuminated display front & back Acoustical signal 90 dB / 70 dB / 0 dB
Protection class IP65 (IEC 60529) dust and jet water
Drop resistance 1.2 m (3.9 ft)
Battery type/life 2 x AA 1.5 V / 24 hours
Low power alert digital display
Dimensions (L x W x H) 158 x 73 x 26 mm (6.22 x 2.87 x 1.02 in)
Weight with batteries 265 g (0.58 lbs)
Automatic shut-off 30 min. without detection
Operating temperature -10… +50 °C (+14… +122 °F)
Storage temperature -25… +70 °C (-13… +158 °F)

* Depending on lighting conditions
