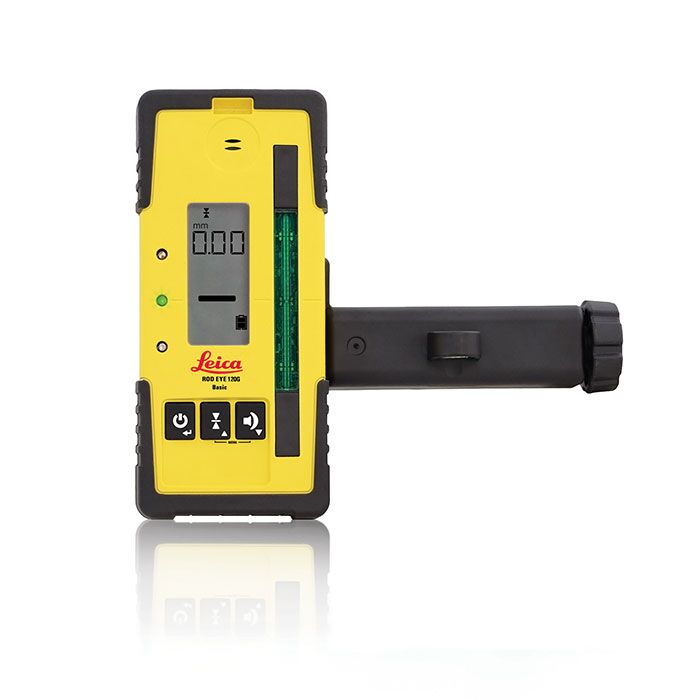

Leica Rod Eye 120G Digital

£209.00 Price incl. VAT: £250.80

Range: 400m
Strobe rejection
Digital readout
LCD/audio indication front and back
IP67 Waterproof
Detection window: 70mm
3 year warranty

Add to compare

Add to wishlist

Compare

SKU: 789923 Category: Rotary Laser Accessories Tags: Leica Rod Eye, Rod Eye, Rod Eye 120G Digital

Description

High application performance

Leica Rod Eye 120G – with the built-in 12cm detection window you can easily detect the beam over the entire distance.

Range: 400m
Strobe rejection
Digital readout
LCD/audio indication front and back
IP67 Waterproof
Detection window: 70mm

Supplied with:

Rod Eye 120G
3 Year warranty

Features

LCD Indication – 2, large graphic displays on the front and back of the receiver.
The digital readout of the Rod Eye 120G measures offset from Rugby 640G green laser beam position, adding convenience and saving time
Audio indication – three volume levels: loud, soft, off
Accuracy (bandwidth) indication – three accuracy levels: fine, medium, coarse
Built-in 7 cm detection window allows easy detection of the beam over the entire distance
Versatile Rod Bracket A rugged rod clamp ensures solid mounting to the grade rod. The circular level vial aids to keep your grade rod plumb.
Protective Overmold Protects the receiver from drops in tough jobsite conditions.
Anti-strobe Protecton Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function.
Beam Finding Passing the receiver through the laser beam will cause the receiver to beep twice quickly.
Out of Beam Display If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam.
Laser Low Battery A small laser icon on the receiver display alerts the user when the batteries are getting low.

Features of the Leica Rod Eye 120G

The Leica Rod Eye 120G receiver is designed to capture the green laser beam of the Rugby 640G rotating laser. The digital read out capability makes height readings and working with offsets convenient and fast, whereas the 7cm detection window allows beam detection up to 200 metres (radius).

LCD indication – 2 large graphic displays on the front and back of the receiver
Digital readout – measures offset from Rugby 640G beam position, adding convenience and saving time
Audio indication – three volume levels: loud, soft, off
Accuracy indication – three accuracy levels: fine, medium, coarse
7cm Detection window – allows easy detection of the beam over the entire distance

Features		Popular with
Working radius : 400 m		General Construction
Detection accuracies:	Fine ± 1.0 mm (± 0.04 in)
	Medium ± 2.0 mm (± 0.08 in)
	Coarse ± 3.0 mm (± 0.12 in)
Detection Height: 70 mm
Detectable laser beam: 600 nm to 800 nm
Audio Volumes:	High
	Low
	Off
Batteries: 50+ hours (2 x 1.5V “AA”)
Automatic shut-off: 10 minutes
IP67 for water & dust resistance

Leica Rod Eye Series Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Leica Rod Eye Series – Technical Data Sheet

Additional information

Brand	Leica Geosystems

Product Specification

Technical data	Rod Eye Basic	Rod Eye 120G Basic	Rod Eye 120 Basic	Rod Eye 140 Classic	Rod Eye 160 Digital	Rod Eye Digital RF
Anti-strobe	No	No	No	Yes	Yes	Yes
Smart Targeting / Smart Lock	No	No	No	No	No	Yes
Working diameter (laser dependent)	600 m	400 m	900 m	1,350 m	1,350 m	1,350 m
Detection window	36 mm	70 mm	70 mm	120 mm	120 mm	120 mm
Digital readout / height	No	Yes / 70 mm	No	No	Yes / 90 mm	Yes / 90 mm
Digital readout / units	–	mm, cm, in, frac, ft	–	–	mm, cm, in, frac, ft	mm, cm, in, frac, ft
Detectable spectrum	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm
Automatic shutoff	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes
Audio volumes	High / Low / Off	High / Low / Off	High / Low / Off	High / Low / Off	High / Med / Low / Off	High / Med / Low / Off
Arrow display	5 channels	11 channels	9 channels	9 channels	15 channels	15 channels
Detection accuracies	Fine ± 1 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm
Protection class (splash /dust proof)	IP66	IP67	IP67	IP67	IP67	IP67
Battery type / life	1x 9V / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours
Dimensions (HWD)	150 x 80 x 35 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm
Operating temperature	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C

Warranty

Leica Warranties

Comes with a Lifetime Warranty. This warranty covers defects in material and workmanship.

However, specific terms and conditions might vary depending on the model and location.
Standard 3-Year Warranty for the Leica Combo (receiver/remote) also applies when the product is registered
on the Leica Geosystems website.

Lifetime Warranty

Leica Geosystems offers a lifetime warranty on many of its products, including some rotating laser levels.

Defects in Material or Workmanship:

The warranty typically covers defects that arise due to faulty materials or poor workmanship during the manufacturing process.

Repair or Replacement:

If a covered defect occurs, Leica Geosystems will usually repair or replace the product free of charge.

Terms and Conditions:

It’s essential to review the specific warranty terms and conditions for your particular Leica Combo model and location to understand the full scope of coverage.

Warranty Registration:

Extended warranty, if registered within 8 weeks of purchase.

Protect by Leica Geosystems – Warranty Overview

PROTECT by Leica Geosystems

Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:

Lifetime manufacturer’s warranty
Certified quality
No cost period for repair and service
Swiss technology

The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems

Leica Approved Sales, Warranty & Repair Centre

As a main Leica Geosystems agent & Warranty Centre in the UK we can offer training,
specialist product advice and demonstration.

We also offer comprehensive telephone support and training including advice on which
product would deliver the best value to you organisation and organizations business
requirements. We have a number of sales agents that are on the road visiting customers
up and down the UK and these are available for onsite trial and demonstrations.
