Leica Rod Eye Series

Name: Leica Rod Eye Series
Brand: Leica Geosystems
SKU: 2231
Availability: InStock

£151.00 – £215.00 Price incl. VAT: £154.80

Professional laser receivers for construction applications.

Available models:

Add to Wishlist

Add to compare

Add to wishlist

Compare

Category: Rotary Laser Accessories Tag: Leica Rugby 600 Series

Description

Laser receivers to quickly and easily detect laser planes when the laser beam is not visible. Not only do they detect the laser beam, they maximise performance of your Rugby laser and any construction laser on site. When combined with Rugby lasers, these Rod Eye receivers allow you to work conveniently even at very long distances. We provide the most complete and professional receiver portfolio for all your general construction and interior applications.

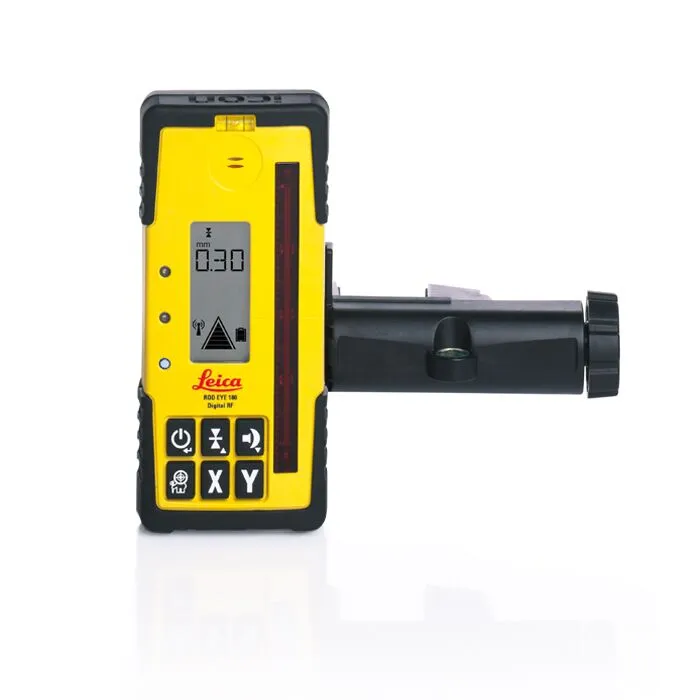

Save time and work conveniently with offsets thanks to the digital read-out feature in Rod Eye 160, 180 and 120G
Rod Eye 140, 160 and 180 anti-strobe feature assures highest detection reliability by rejecting strobe light
Rugged and designed to last with IP 67 protection
Very fine detection accuracy (bandwidth) when the highest accuracy is required

Leica Rod Eye Series Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Leica Rod Eye Series – Technical Data Sheet

Additional information

Brand	Leica Geosystems

Product Specification

Technical data	Rod Eye Basic	Rod Eye 120G Basic	Rod Eye 120 Basic	Rod Eye 140 Classic	Rod Eye 160 Digital	Rod Eye Digital RF
Anti-strobe	No	No	No	Yes	Yes	Yes
Smart Targeting / Smart Lock	No	No	No	No	No	Yes
Working diameter (laser dependent)	600 m	400 m	900 m	1,350 m	1,350 m	1,350 m
Detection window	36 mm	70 mm	70 mm	120 mm	120 mm	120 mm
Digital readout / height	No	Yes / 70 mm	No	No	Yes / 90 mm	Yes / 90 mm
Digital readout / units	–	mm, cm, in, frac, ft	–	–	mm, cm, in, frac, ft	mm, cm, in, frac, ft
Detectable spectrum	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm
Automatic shutoff	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes
Audio volumes	High / Low / Off	High / Low / Off	High / Low / Off	High / Low / Off	High / Med / Low / Off	High / Med / Low / Off
Arrow display	5 channels	11 channels	9 channels	9 channels	15 channels	15 channels
Detection accuracies	Fine ± 1 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm
Protection class (splash /dust proof)	IP66	IP67	IP67	IP67	IP67	IP67
Battery type / life	1x 9V / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours
Dimensions (HWD)	150 x 80 x 35 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm
Operating temperature	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C

Warranty

Leica Warranties

Comes with a Lifetime Warranty. This warranty covers defects in material and workmanship.

However, specific terms and conditions might vary depending on the model and location.
Standard 3-Year Warranty for the Leica Combo (receiver/remote) also applies when the product is registered
on the Leica Geosystems website.

Lifetime Warranty

Leica Geosystems offers a lifetime warranty on many of its products, including some rotating laser levels.

Defects in Material or Workmanship:

The warranty typically covers defects that arise due to faulty materials or poor workmanship during the manufacturing process.

Repair or Replacement:

If a covered defect occurs, Leica Geosystems will usually repair or replace the product free of charge.

Terms and Conditions:

It’s essential to review the specific warranty terms and conditions for your particular Leica Combo model and location to understand the full scope of coverage.

Warranty Registration:

Extended warranty, if registered within 8 weeks of purchase.

Protect by Leica Geosystems – Warranty Overview

PROTECT by Leica Geosystems

Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:

Lifetime manufacturer’s warranty
Certified quality
No cost period for repair and service
Swiss technology

The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems

Leica Approved Sales, Warranty & Repair Centre

As a main Leica Geosystems agent & Warranty Centre in the UK we can offer training,
specialist product advice and demonstration.

We also offer comprehensive telephone support and training including advice on which
product would deliver the best value to you organisation and organizations business
requirements. We have a number of sales agents that are on the road visiting customers
up and down the UK and these are available for onsite trial and demonstrations.

Leica Rod Eye 120 Basic	Leica Rod Eye 120 Basic quantity	£151.00 Price incl. VAT: £181.20
Leica Rod Eye 140 Classic	Leica Rod Eye 140 Classic quantity	£194.00 Price incl. VAT: £232.80
Leica Rod Eye 160 Digital	Leica Rod Eye 160 Digital quantity	£215.00 Price incl. VAT: £258.00
