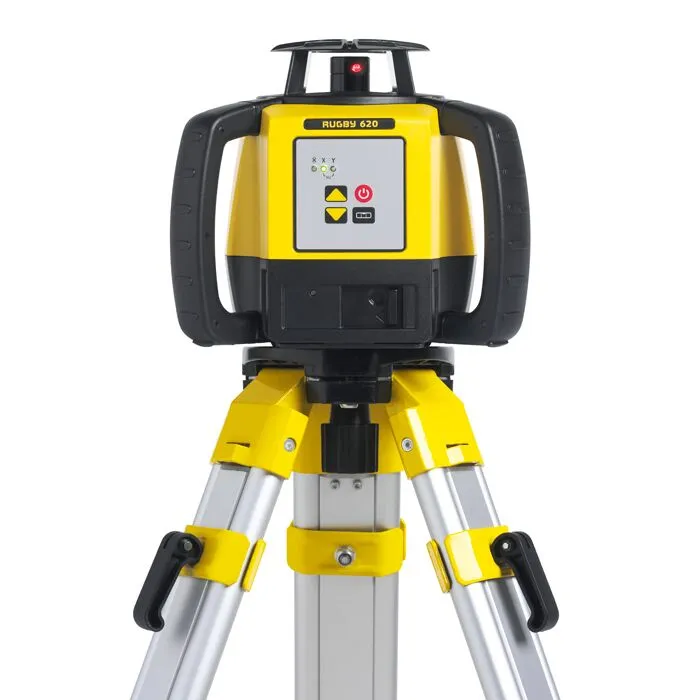

Leica Rugby 620
£550.00 – £590.00
IN STOCK AVAILABLE FOR NEXT DAY DELIVERY
- Range: 600m
- Manual Grade Capability
- Rugged & waterproof rotating laser level
- Automatic self levelling
- Simple one button operation
- IP67: sealed against water
Comes with FREE Construction Tripod & Levelling Staff, fully Calibrated & Guaranteed for Accuracy.
Leica Rugby 620 Video Tutorial
Call us for advice: 0800 292 2188
Rugby 620 – self-levelling, with horizontal and manual slope. Ideal for drives and pipes.
The Leica Rugby 600 Series of rotating lasers are designed to achieve any task in all construction applications. They level, align and square quicker than ever before, eliminating costly errors and downtime. These lasers are built to last on tough construction sites with a durable housing and IP67 protection, making them the most rugged and trusted choice for any job.
Detect the laser beam in any conditions and at any distances with the Leica Rod Eye receiver range – from a convenient offset reading with Rod Eye 120G/120 to working at long distances with Rod Eye 140/160.
Choose from these 2 packages:
Leica Rugby 620
Supplied with:
- Rugby 620
- 4 x D cell batteries
- 1 x Alkaline battery holder
- Rod Eye 120 Receiver
- Hard Case & Leica Protect Warranty
- Calibration Certificate
Leica Rugby 620 Kit
Supplied with:
- Rugby 620
- 4 x D cell batteries
- 1 x Alkaline battery holder
- Rod Eye 120 Receiver
- Hard Case & Leica Protect Warranty
- Construction tripod & 4M staff
- Calibration Certificate


- Increase your productivity in levelling applications. Designed for general contractors who mainly perform formwork & concrete applications. Setting foundations and footings has never been more efficient.
- Forget about costly errors, rework or downtime thanks to the fully-automatic operation with Leica Rod Eye receivers.
- It’s built for the construction site – water & dustproof, extremely durable housing & perform to the highest standards in all conditions.
- Easy to use – fully automatic with manual grade capability.
- Extend your working range using the Rod Eye 120 Receiver (compatible with all Leica Rod Eye Receivers)
- Quality guaranteed – what other laser level comes complete with a 5 year no quibble warranty covering all aspects of the lasers parts including wear and tear.
Key Features
- Range 600m Diameter
- Manual Gradient Capability
- IP67 Waterproof & Dustproof
- Accuracy 1.5mm at 30m
- Li-ion battery life 40+ hours
- Calibrated & Guaranteed for Accuracy
Features | Popular with |
---|---|
Operating Range 600m diameter | General Construction |
Self-leveling Accuracy* ±1.5mm at 30m | Contractors |
Robust & Waterproof – IP67 | Ground workers |
Self-levelling horizontal, manual grade capability | Landscapers |
Rotating Speed 10rps (600 rpm) | Fencing |
Automatic self-leveling mode. | Concrete bases & foundations |
Leica Rugby 600 Series Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
Brand |
Leica Geosystems |
---|---|
Please choose |
Leica Rugby 620 ,Leica Rugby 620 Kit |
Product Specification
Technical data | Rugby 610 | Rugby 620 | Rugby 640/640G | Rugby 680 |
---|---|---|---|---|
Functionality |
Self-levelling horizontal, one button laser |
Self-levelling horizontal & manual slope in one axis |
Self-levelling horizontal, vertical, 90° and manual slope in dual axis |
Self-levelling horizontal, vertical, 90°, dial in grade in single or dual axis. Smat slope function. |
Product type |
General construction |
General construction |
Multipurpose / H.V. |
Semi-auto grade |
Laser class |
Class 2 |
Class 2 |
Class 2 |
Class 2 |
Laser type |
635 nm (red) |
635 nm (red) |
635 nm (red) / 520 nm (green) |
635 nm (red) |
Plumb up |
– |
– |
Yes |
– |
Rotation – RPS |
10 |
10 |
0, 2, 5, 10 |
10 |
Scanning – degrees |
– |
– |
10, 45, 90 |
– |
Range (diameter) – Basic |
500 m |
600 m |
500 m |
600 m |
Range (diameter) – RE140/160 |
600 m |
800 m |
600 m |
800 m |
RF remote control (diameter) |
– |
– |
200 m |
– |
Batteries (alkaline/rechargeable) |
Four D-cells / Li-Ion pack |
Four D-cells / Li-Ion pack |
Four D-cells / Li-Ion pack |
Four D-cells / Li-Ion pack |
Battery life** (alkaline/rechargeable) |
40 hours / 60 hours @ 20 °C |
40 hours / 60 hours @ 20 °C |
40 hours / 60 hours @ 20 °C |
40 hours / 60 hours @ 20 °C |
Extended operating temperature |
–10° to +50° C (14° to +122° F) |
–20° to +50° C (-4° to +122° F) |
–20° to +60° C (-4° to +122° F) |
–20° to +60° C (-4° to +122° F) |
Storage temperature |
–20° to +70°C (–4° to +158°F) |
–40° to +70°C (–40° to +158°F) |
–40° to +70°C (–40° to +158°F) |
–40° to +70°C (–40° to +158°F) |
Environmental standard |
IP67 |
IP67 |
IP67 |
IP67 |
Technical data | Rod Eye Basic | Rod Eye 120G Basic | Rod Eye 120 Basic | Rod Eye 140 Classic | Rod Eye 160 Digital |
Rod Eye Digital RF |
---|---|---|---|---|---|---|
Anti-strobe |
No |
No |
No |
Yes | Yes | Yes |
Smart Targeting / Smart Lock |
No |
No |
No |
No | No | Yes |
Working diameter (laser dependent) |
600 m |
400 m |
900 m |
1,350 m | 1,350 m | 1,350 m |
Detection window |
36 mm |
70 mm |
70 mm |
120 mm | 120 mm | 120 mm |
Digital readout / height |
No |
Yes / 70 mm |
No |
No | Yes / 90 mm | Yes / 90 mm |
Digital readout / units |
– |
mm, cm, in, frac, ft |
– |
– | mm, cm, in, frac, ft | mm, cm, in, frac, ft |
Detectable spectrum |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm |
Automatic shutoff |
10 minutes |
10 minutes |
10 minutes |
10 minutes | 10 minutes | 10 minutes |
Audio volumes |
High / Low / Off |
High / Low / Off |
High / Low / Off |
High / Low / Off | High / Med / Low / Off | High / Med / Low / Off |
Arrow display |
5 channels |
11 channels |
9 channels |
9 channels | 15 channels | 15 channels |
Detection accuracies |
Fine ± 1 mm |
Fine ± 1 mm |
Fine ± 1 mm |
Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm |
Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm |
Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm |
Protection class (splash /dust proof) |
IP66 |
IP67 |
IP67 |
IP67 | IP67 | IP67 |
Battery type / life |
1x 9V / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours | 2x AA / 50+ hours | 2x AA / 50+ hours |
Dimensions (HWD) |
150 x 80 x 35 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm | 173 x 76 x 29 mm | 173 x 76 x 29 mm |
Operating temperature |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C | –20°C to +50°C | –20°C to +50°C |
Warranty

PROTECT by Leica Geosystems
Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:
- Lifetime manufacturer’s warranty
- Certified quality
- No cost period for repair and service
- Swiss technology
The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems
Leica Approved Sales, Warranty and Repair Centre
As a main Leica Geosystems agent and warranty centre in the UK we can offer training, specialist product and advice and demonstration and trial of moisture measuring and surveying.
We also offer comprehensive telephone support and training including advice on which product would deliver the best value to you organisation and organizations business requirements. We have a number of sales agents that are on the road visiting customers up and down the UK and these are available for onsite trial and demonstrations.
Video
How to use the Leica Rugby 620 Rotating Laser
