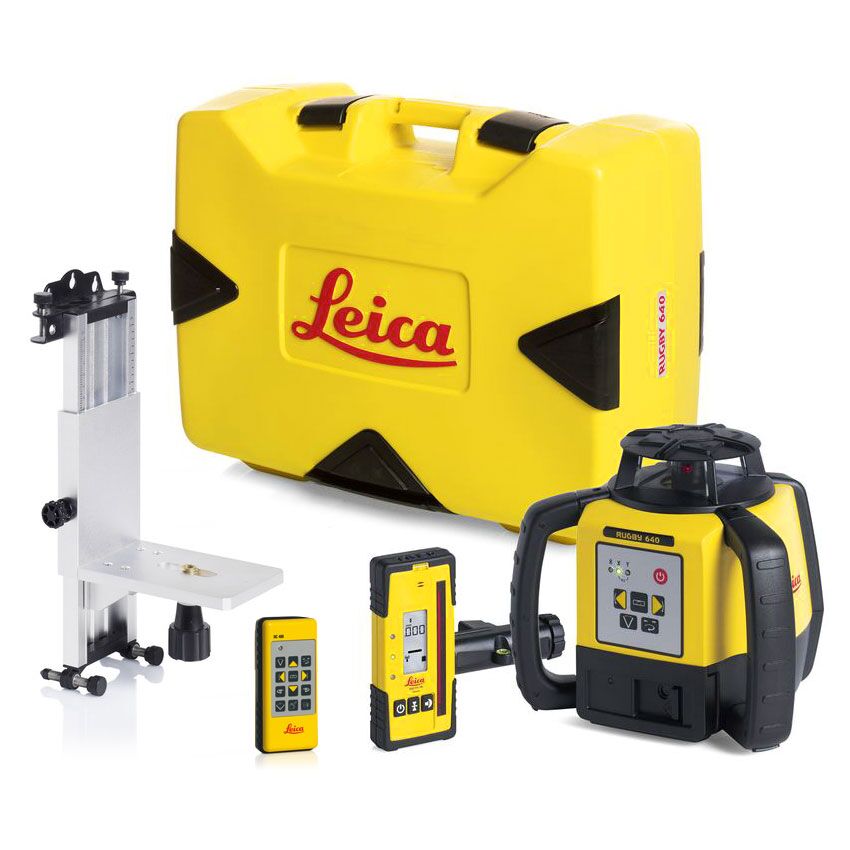

Supplied with:
Comes fully Calibrated & Guaranteed for Accuracy.
Ideal for setting out. Fully automatic in vertical, horizontal, 90° and manual slope in dual axis.
Supplied with:
| Features | Popular with |
|---|---|
| Operating Range 600m diameter | General Construction |
| Self-leveling Accuracy* ±1.5mm at 30m | Contractors |
| Robust & Waterproof – IP67 | Ground workers |
| Self-levelling horizontal, vertical, 90° | Landscapers |
| Manual slope in dual axis | Fencing |
| Scan 10, 45 & 90° | Concrete bases & foundations |
| Rotating Speed 10rps (600 rpm) |
View and download this product’s brochure, datasheet, and manual in a PDF format
| Brand |
Leica Geosystems |
|---|
| Technical data | Rugby 610 | Rugby 620 | Rugby 640/640G | Rugby 680 |
|---|---|---|---|---|
|
Functionality |
Self-levelling horizontal, one button laser |
Self-levelling horizontal & manual slope in one axis |
Self-levelling horizontal, vertical, 90° and manual slope in dual axis |
Self-levelling horizontal, vertical, 90°, dial in grade in single or dual axis. Smat slope function. |
|
Product type |
General construction |
General construction |
Multipurpose / H.V. |
Semi-auto grade |
|
Laser class |
Class 2 |
Class 2 |
Class 2 |
Class 2 |
|
Laser type |
635 nm (red) |
635 nm (red) |
635 nm (red) / 520 nm (green) |
635 nm (red) |
|
Plumb up |
– |
– |
Yes |
– |
|
Rotation – RPS |
10 |
10 |
0, 2, 5, 10 |
10 |
|
Scanning – degrees |
– |
– |
10, 45, 90 |
– |
|
Range (diameter) – Basic |
500 m |
600 m |
500 m |
600 m |
|
Range (diameter) – RE140/160 |
600 m |
800 m |
600 m |
800 m |
|
RF remote control (diameter) |
– |
– |
200 m |
– |
|
Batteries (alkaline/rechargeable) |
Four D-cells / Li-Ion pack |
Four D-cells / Li-Ion pack |
Four D-cells / Li-Ion pack |
Four D-cells / Li-Ion pack |
|
Battery life** (alkaline/rechargeable) |
40 hours / 60 hours @ 20 °C |
40 hours / 60 hours @ 20 °C |
40 hours / 60 hours @ 20 °C |
40 hours / 60 hours @ 20 °C |
|
Extended operating temperature |
–10° to +50° C (14° to +122° F) |
–20° to +50° C (-4° to +122° F) |
–20° to +60° C (-4° to +122° F) |
–20° to +60° C (-4° to +122° F) |
|
Storage temperature |
–20° to +70°C (–4° to +158°F) |
–40° to +70°C (–40° to +158°F) |
–40° to +70°C (–40° to +158°F) |
–40° to +70°C (–40° to +158°F) |
|
Environmental standard |
IP67 |
IP67 |
IP67 |
IP67 |
| Technical data | Rod Eye Basic | Rod Eye 120G Basic | Rod Eye 120 Basic | Rod Eye 140 Classic | Rod Eye 160 Digital |
Rod Eye Digital RF |
|---|---|---|---|---|---|---|
|
Anti-strobe |
No |
No |
No |
Yes | Yes | Yes |
|
Smart Targeting / Smart Lock |
No |
No |
No |
No | No | Yes |
|
Working diameter (laser dependent) |
600 m |
400 m |
900 m |
1,350 m | 1,350 m | 1,350 m |
|
Detection window |
36 mm |
70 mm |
70 mm |
120 mm | 120 mm | 120 mm |
|
Digital readout / height |
No |
Yes / 70 mm |
No |
No | Yes / 90 mm | Yes / 90 mm |
|
Digital readout / units |
– |
mm, cm, in, frac, ft |
– |
– | mm, cm, in, frac, ft | mm, cm, in, frac, ft |
|
Detectable spectrum |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm |
|
Automatic shutoff |
10 minutes |
10 minutes |
10 minutes |
10 minutes | 10 minutes | 10 minutes |
|
Audio volumes |
High / Low / Off |
High / Low / Off |
High / Low / Off |
High / Low / Off | High / Med / Low / Off | High / Med / Low / Off |
|
Arrow display |
5 channels |
11 channels |
9 channels |
9 channels | 15 channels | 15 channels |
|
Detection accuracies |
Fine ± 1 mm |
Fine ± 1 mm |
Fine ± 1 mm |
Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm |
Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm |
Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm |
|
Protection class (splash /dust proof) |
IP66 |
IP67 |
IP67 |
IP67 | IP67 | IP67 |
|
Battery type / life |
1x 9V / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours | 2x AA / 50+ hours | 2x AA / 50+ hours |
|
Dimensions (HWD) |
150 x 80 x 35 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm | 173 x 76 x 29 mm | 173 x 76 x 29 mm |
|
Operating temperature |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C | –20°C to +50°C | –20°C to +50°C |
Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:
The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems
As a main Leica Geosystems agent and warranty centre in the UK we can offer training, specialist product and advice and demonstration and trial of moisture measuring and surveying.
We also offer comprehensive telephone support and training including advice on which product would deliver the best value to you organisation and organizations business requirements. We have a number of sales agents that are on the road visiting customers up and down the UK and these are available for onsite trial and demonstrations.
CALL FOR PRICE:
