Leica Rugby 640 Machine Only Package - 6011481

Previous product

Leica Rugby 640 Interior Package

Next product

Leica Rugby 640G Kit

Leica Rugby 640 Machine Only

SKU: 6011481

Range 600m Diameter
Manual slope in dual axis
Plumb up & down | Scan 10, 45 & 90°
Beam down & sleep mode
Accuracy 1.5mm at 30m
IP67: sealed against water

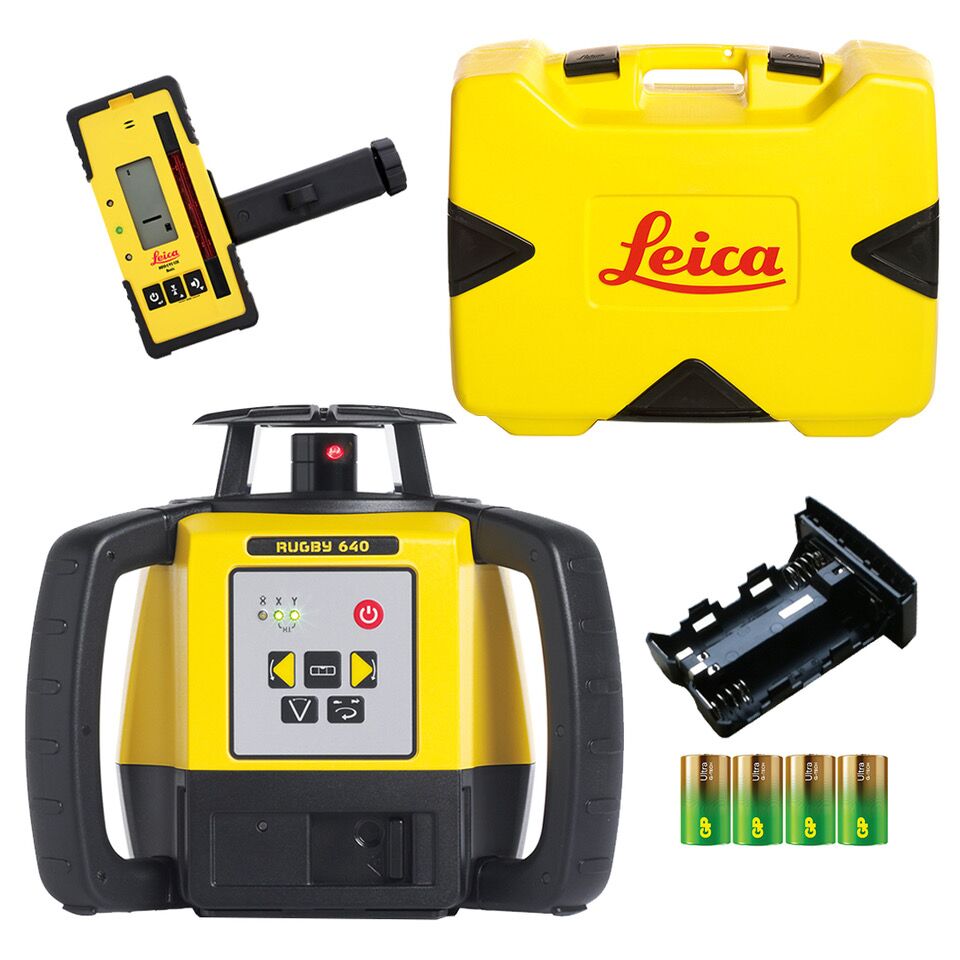

Supplied with:

Rugby 640 | Li-ion Battery
Rod Eye 120 Receiver
Hard Case & Leica Protect Warranty
Calibration Certificate

Comes fully Calibrated and Guaranteed for Accuracy.

CALL FOR PRICE:
0800 292 2188
FREEPHONE

Add to Wishlist

Compare

SKU: 6011481 Category: Rotary Lasers Tag: Leica Rugby 600 Series

Description
Product Specification
Warranty
About brand
Shipping & Delivery

Description

Versatility inside & outside

Ideal for setting out. Fully automatic in vertical, horizontal, 90° and manual slope in dual axis.

Supplied with:

Rugby 640 | Li-ion Battery
Rod Eye 120 Receiver
Hard Case & Leica Protect Warranty
Calibration Certificate

Comes fully Calibrated and Guaranteed for Accuracy.

Fit for any interior & exterior levelling, aligning & squaring application
Scan 90° – make layout easier by quickly moving the beam to the left or right side
Plumb Down – automatic & accurate plum down direction for alignment over a reference point
Sleep Mode – save battery & put the Leica Rugby into sleep mode without disturbing your set up
It’s built for the construction site – water & dustproof, extremely durable housing and perform to the highest standards in all conditions
Easy to use – fully automatic with manual grade capability.
Allows you to perform all horizontal, vertical & simple slope tasks quickly & reliably
Superb performance with all Leica Rod Eye receivers – extend your working range using the Rod Eye 120 Receiver
Quality guaranteed – what other laser level comes complete with a 5 year no quibble warranty covering all aspects of the lasers parts including wear and tear

Key Features

Range 600m diameter
Manual slope in dual axis
Scan 10, 45 & 90°
Beam down & sleep mode
Plumb up & down
Accuracy 1.5mm at 30m
Li-ion battery life 40+ hours
IP67 waterproof & dustproof
Comes fully calibrated & guaranteed for accuracy

Features	Popular with
Operating Range 600m diameter	General Construction
Self-leveling Accuracy* ±1.5mm at 30m	Contractors
Robust & Waterproof – IP67	Ground workers
Self-levelling horizontal, vertical, 90°	Landscapers
Manual slope in dual axis	Fencing
Scan 10, 45 & 90°	Concrete bases & foundations
Rotating Speed 10rps (600 rpm)

Leica Rugby 600 Series Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Leica Rugby 600 Series Brochure

Leica Rugby 600 Series Data Sheet

Leica Rod Eye Technical Data Sheet

Product Specification

Technical data	Rugby 610	Rugby 620	Rugby 640/640G	Rugby 680
Functionality	Self-levelling horizontal, one button laser	Self-levelling horizontal & manual slope in one axis	Self-levelling horizontal, vertical, 90° and manual slope in dual axis	Self-levelling horizontal, vertical, 90°, dial in grade in single or dual axis. Smat slope function.
Product type	General construction	General construction	Multipurpose / H.V.	Semi-auto grade
Laser class	Class 2	Class 2	Class 2	Class 2
Laser type	635 nm (red)	635 nm (red)	635 nm (red) / 520 nm (green)	635 nm (red)
Plumb up	–	–	Yes	–
Rotation – RPS	10	10	0, 2, 5, 10	10
Scanning – degrees	–	–	10, 45, 90	–
Range (diameter) – Basic	500 m	600 m	500 m	600 m
Range (diameter) – RE140/160	600 m	800 m	600 m	800 m
RF remote control (diameter)	–	–	200 m	–
Batteries (alkaline/rechargeable)	Four D-cells / Li-Ion pack	Four D-cells / Li-Ion pack	Four D-cells / Li-Ion pack	Four D-cells / Li-Ion pack
Battery life (alkaline/rechargeable)**	40 hours / 60 hours @ 20 °C	40 hours / 60 hours @ 20 °C	40 hours / 60 hours @ 20 °C	40 hours / 60 hours @ 20 °C
Extended operating temperature	–10° to +50° C (14° to +122° F)	–20° to +50° C (-4° to +122° F)	–20° to +60° C (-4° to +122° F)	–20° to +60° C (-4° to +122° F)
Storage temperature	–20° to +70°C (–4° to +158°F)	–40° to +70°C (–40° to +158°F)	–40° to +70°C (–40° to +158°F)	–40° to +70°C (–40° to +158°F)
Environmental standard	IP67	IP67	IP67	IP67

Technical data	Rod Eye Basic	Rod Eye 120G Basic	Rod Eye 120 Basic	Rod Eye 140 Classic	Rod Eye 160 Digital	Rod Eye Digital RF
Anti-strobe	No	No	No	Yes	Yes	Yes
Smart Targeting / Smart Lock	No	No	No	No	No	Yes
Working diameter (laser dependent)	600 m	400 m	900 m	1,350 m	1,350 m	1,350 m
Detection window	36 mm	70 mm	70 mm	120 mm	120 mm	120 mm
Digital readout / height	No	Yes / 70 mm	No	No	Yes / 90 mm	Yes / 90 mm
Digital readout / units	–	mm, cm, in, frac, ft	–	–	mm, cm, in, frac, ft	mm, cm, in, frac, ft
Detectable spectrum	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm
Automatic shutoff	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes
Audio volumes	High / Low / Off	High / Low / Off	High / Low / Off	High / Low / Off	High / Med / Low / Off	High / Med / Low / Off
Arrow display	5 channels	11 channels	9 channels	9 channels	15 channels	15 channels
Detection accuracies	Fine ± 1 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm
Protection class (splash /dust proof)	IP66	IP67	IP67	IP67	IP67	IP67
Battery type / life	1x 9V / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours
Dimensions (HWD)	150 x 80 x 35 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm
Operating temperature	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C

Warranty

PROTECT by Leica Geosystems

Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:

Lifetime manufacturer’s warranty
Certified quality
No cost period for repair and service
Swiss technology

The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems

Leica Approved Sales, Warranty and Repair Centre

As a main Leica Geosystems agent and warranty centre in the UK we can offer training, specialist product and advice and demonstration and trial of moisture measuring and surveying.

We also offer comprehensive telephone support and training including advice on which product would deliver the best value to you organisation and organizations business requirements. We have a number of sales agents that are on the road visiting customers up and down the UK and these are available for onsite trial and demonstrations.

About brand

Revolutionising the world of measurement and survey for nearly 200 years, Leica Geosystems creates complete solutions for professionals across the planet.

Leica Geosystems: When it has to be right
