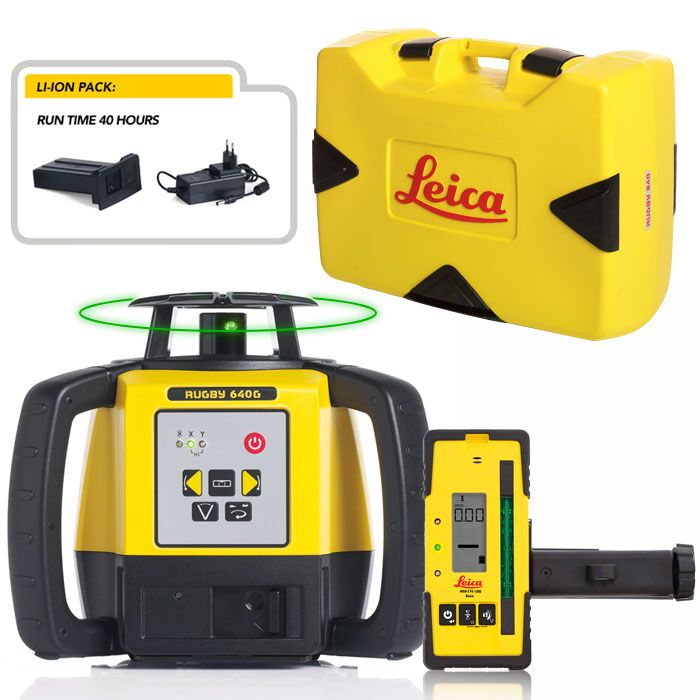

Leica Rugby 640G Machine Only

SKU: 6011487

GREEN laser for outstanding visibility
Range 600m Diameter
Manual slope in dual axis
Scan 10, 45 & 90°
Beam down & sleep mode
Plumb up & down
Accuracy 1.5mm at 30m
IP67: sealed against water

Supplied with:

Rugby 640G | Li-ion Battery
Leica Rod Eye 120G
Hard Case & Leica Protect Warranty
Calibration Certificate

Comes fully Calibrated & Guaranteed for Accuracy.

CALL FOR PRICE:
0800 292 2188
FREEPHONE

Add to Wishlist

Compare

SKU: 6011487 Category: Rotary Lasers Tag: Leica Rugby 600 Series

Description
Product Specification
Warranty
About brand
Shipping & Delivery

Description

Ideal for setting out.

Fully automatic in vertical, horizontal, 90° and manual slope in dual axis. Leica Rugby 640G GREEN Beam rotating laser enables you to easily see wherever you are working.

Supplied with:

Rugby 640G | Li-ion Battery
Leica Rod Eye 120G
Hard Case & Leica Protect Warranty
Calibration Certificate

Highly visible GREEN Beam
Fit for any interior & exterior levelling, aligning & squaring application
Scan 90° – make layout easier by quickly moving the beam to the left or right side
Plumb Down – automatic & accurate plum down direction for alignment over a reference point
Sleep Mode – save battery & put the Leica Rugby into sleep mode without disturbing your set up
It’s built for the construction site – water & dustproof, extremely durable housing and perform to the highest standards in all conditions
Easy to use – fully automatic with manual grade capability.
Allows you to perform all horizontal, vertical & simple slope tasks quickly & reliably
Superb performance with all Leica Rod Eye receivers – extend your working range using the Rod Eye 120 Receiver
Quality guaranteed – what other laser level comes complete with a 5 year no quibble warranty covering all aspects of the lasers parts including wear and tear

Key Features

Range 600m diameter
Manual slope in dual axis
Scan 10, 45 & 90°
Beam down & sleep mode
Plumb up & down
Accuracy 1.5mm at 30m
Li-ion battery life 40+ hours
IP67 waterproof & dustproof
Comes fully calibrated & guaranteed for accuracy

Features	Popular with
Operating Range 600m diameter	General Construction
Self-leveling Accuracy* ±1.5mm at 30m	Contractors
Robust & Waterproof – IP67	Ground workers
Self-levelling horizontal, vertical, 90°	Landscapers
Manual slope in dual axis	Fencing
Scan 10, 45 & 90°	Concrete bases & foundations
Rotating Speed 10rps (600 rpm)

Leica Rugby 600 Series Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Leica Rugby 600 Series Brochure

Leica Rugby 600 Series Data Sheet

Leica Rod Eye Technical Data Sheet

Product Specification

Technical data	Rugby 610	Rugby 620	Rugby 640/640G	Rugby 680
Functionality	Self-levelling horizontal, one button laser	Self-levelling horizontal & manual slope in one axis	Self-levelling horizontal, vertical, 90° and manual slope in dual axis	Self-levelling horizontal, vertical, 90°, dial in grade in single or dual axis. Smat slope function.
Product type	General construction	General construction	Multipurpose / H.V.	Semi-auto grade
Laser class	Class 2	Class 2	Class 2	Class 2
Laser type	635 nm (red)	635 nm (red)	635 nm (red) / 520 nm (green)	635 nm (red)
Plumb up	–	–	Yes	–
Rotation – RPS	10	10	0, 2, 5, 10	10
Scanning – degrees	–	–	10, 45, 90	–
Range (diameter) – Basic	500 m	600 m	500 m	600 m
Range (diameter) – RE140/160	600 m	800 m	600 m	800 m
RF remote control (diameter)	–	–	200 m	–
Batteries (alkaline/rechargeable)	Four D-cells / Li-Ion pack	Four D-cells / Li-Ion pack	Four D-cells / Li-Ion pack	Four D-cells / Li-Ion pack
Battery life (alkaline/rechargeable)**	40 hours / 60 hours @ 20 °C	40 hours / 60 hours @ 20 °C	40 hours / 60 hours @ 20 °C	40 hours / 60 hours @ 20 °C
Extended operating temperature	–10° to +50° C (14° to +122° F)	–20° to +50° C (-4° to +122° F)	–20° to +60° C (-4° to +122° F)	–20° to +60° C (-4° to +122° F)
Storage temperature	–20° to +70°C (–4° to +158°F)	–40° to +70°C (–40° to +158°F)	–40° to +70°C (–40° to +158°F)	–40° to +70°C (–40° to +158°F)
Environmental standard	IP67	IP67	IP67	IP67

Technical data	Rod Eye Basic	Rod Eye 120G Basic	Rod Eye 120 Basic	Rod Eye 140 Classic	Rod Eye 160 Digital	Rod Eye Digital RF
Anti-strobe	No	No	No	Yes	Yes	Yes
Smart Targeting / Smart Lock	No	No	No	No	No	Yes
Working diameter (laser dependent)	600 m	400 m	900 m	1,350 m	1,350 m	1,350 m
Detection window	36 mm	70 mm	70 mm	120 mm	120 mm	120 mm
Digital readout / height	No	Yes / 70 mm	No	No	Yes / 90 mm	Yes / 90 mm
Digital readout / units	–	mm, cm, in, frac, ft	–	–	mm, cm, in, frac, ft	mm, cm, in, frac, ft
Detectable spectrum	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm
Automatic shutoff	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes
Audio volumes	High / Low / Off	High / Low / Off	High / Low / Off	High / Low / Off	High / Med / Low / Off	High / Med / Low / Off
Arrow display	5 channels	11 channels	9 channels	9 channels	15 channels	15 channels
Detection accuracies	Fine ± 1 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm
Protection class (splash /dust proof)	IP66	IP67	IP67	IP67	IP67	IP67
Battery type / life	1x 9V / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours
Dimensions (HWD)	150 x 80 x 35 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm
Operating temperature	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C
