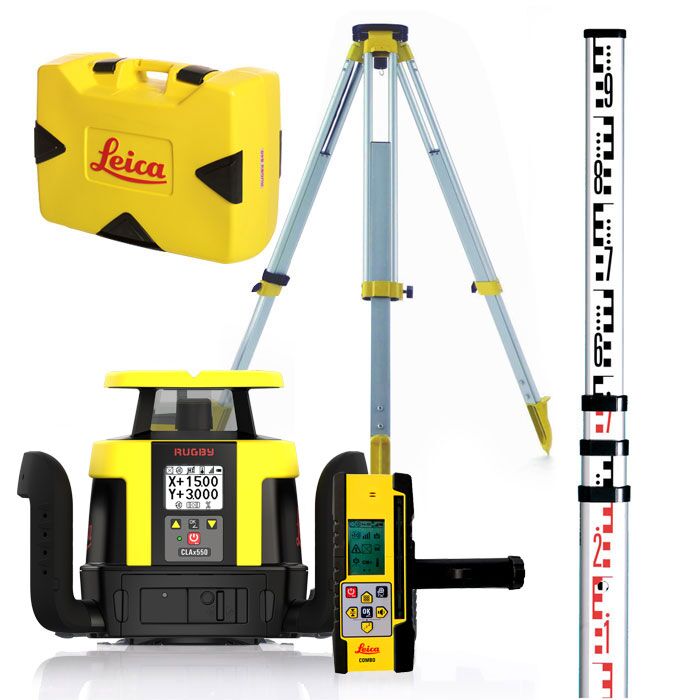

Leica Rugby CLAx 550 Combo Receiver Remote - Scope of Delivery

Watch video

Click to enlarge

Leica Rugby CLA + CLX 550 with Combo Receiver Remote

Adaptable all-rounder

The CLAx 550 is ready to adapt to vertical or horizontal work, from pouring concrete in two axes to facade installations. With 8% digital dual slope, self-levelling, and fast head speed, work with precise plans and enhance productivity.

CALL FOR UPGRADE & PRICE OPTIONS:
0800 292 2188
FREEPHONE

Supplied with:

Rugby CLAx 550
Rugby Combo Remote & Receiver
Li-ion Battery Pack & Charger
Tripod & Staff
Hard Carry Case | User Manual
5 Year Leica Protect Warranty + Plus 2 Year Knockdown Insurance for the Head Unit and its internal components

Add to Wishlist

Add to compare

Add to wishlist

Compare

Description

Adaptable all-rounder

The CLAx 550 is ready to adapt to vertical or horizontal work, from pouring concrete in two axes to facade installations. With 8% digital dual slope, self-levelling, and fast head speed, work with precise plans and enhance productivity. The machine also has the Beam Capture feature for setting your Grades using the Combo Receiver, without the maths calculations required on the Rugby 680 model. Make use of the laydown features for 90° set out or layout applications.

Supplied with:

Rugby CLAx 550
Rugby Combo – Art no. 864848
Li-ion Battery Pack & Charger
Tripod & Staff

Hard Carry Case | User Manual
Calibration Certificate
5 Year Leica Protect Warranty + Plus 2 Year Knockdown Insurance for the Head Unit and its internal components

CALL FOR UPGRADE & PRICE OPTIONS:
0800 292 2188
FREEPHONE

Leica Rugby CLAx Lasers - Video Tutorials

How to Use Beam Catch with the Combo+

How to Use Beam Lock with the Combo+

How to Enable Beam Masking with the Combo+

How to Enter Manual Grade with the Combo+

How to Pair the Combo+ with the Laser

Features of the Leica Rugby CLAx 550

Horizontal, vertical & manual slope
Range: 1350m diameter ( with Combo )
Grade capability* (X/Y Axes) 15%
Self-levelling accuracy ± 1.5 mm @ 30 m | Range ± 6°
Waterproof - CLAx IP68 | Combo IP67

Equipped with all available functionalities, the Rugby CLAx is the “all on board” laser. With grade dial in on the laser there is no compromise of flexibility and features for all your needs. You pay for the functionality you need to do your job without paying for the extra features that you don’t use.

Leica Rugby CLA CLH CLI Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Leica Rugby CLA CLH CLI – Brochure

Leica Rugby CLH CLA CLI – Datasheet

Leica Rugby CLH CLA CLI – Manual

Leica Rugby CLH CLA CLI – Quick Guide

Leica Rugby CLH CLA CLI – Basic Applications

Leica CLAx & CLH Software Comparison Chart

Protect by Leica Geosystems – Warranty Overview

Leica Rod Eye Series – Technical Data Sheet

Additional information

Brand	Leica Geosystems

Product Specification

Technical data	Rugby CLH	Rugby CLAx	Rugby CLI	LEICA COMBO (RECEIVER/REMOTE)

Warranty	5Y/2Y knockdown	5Y/2Y knockdown	5Y/2Y knockdown	Warranty	3Y
*Grade capability (X/Y Axes)**	8%	15%	15%	Anti-Strobe	Yes
Self-levelling accuracy**	± 1.5 mm at 30 m	± 1.5 mm at 30 m	± 1.5 mm at 30 m	Working range – Receiver	1350 m (diameter)
Self-levelling range	± 6°	± 6°	± 6°	Working range – Remote	600 m (diameter)
Operating range with Combo, RE 140/160	1350 m diameter	1350 m diameter	1350 m diameter	Detection window	120 mm
Remote range	600 m diameter	600 m diameter	600 m diameter	Digital read out / Offset / Variable detection window length	Yes
Laser class	1	2	1	Audio volumes	4 (including mute)
Environmental standard	IP68	IP68	IP68	Detection bandwidth	0.5, 1, 2, 5 mm
Operating temperature	-20 °C to +50 °C	-20 °C to +50 °C	-20 °C to +50 °C	Environmental standard	IP67
Storage temperature	-40 °C to +70 °C	-40 °C to +70 °C	-40 °C to +70 °C	Batteries (li-ion) / Battery operating time*	Li-Ion 3.7V / 50 h
Rotation speed	10, 15, 20 RPS	0, 2, 5, 10, 15 RPS	10, 15, 20 RPS	Battery charging	5 h (full charge) 1 h (fast charge – 8 h operating)
Batteries	Li-Ion	Li-Ion	Li-Ion	Rechargeable battery / charging option with power bank (USB-C)	Yes
Battery operating time**	50 h	50 h	50 h	Operating temperature	-20°C to +50°C
Battery charging	5 h (full charge) 1 h fast charge = 8 h operating	5 h (full charge) 1 h fast charge = 8 h operating	5 h (full charge) 1 h fast charge = 8 h operating	Dimensions (H × W × D)	205 x 86 x 32 mm
Dimensions (H × W × D)	230 x 296 x 212 mm	230 x 296 x 212 mm	230 x 296 x 212 mm	Weight with batteries	0.4 Kg
Weight with batteries	3.8 Kg	3.9 Kg	3.9 Kg

*Rugby CLH grade capability only with software update. Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality.

	Software Versions	Equivalent Old Spec
Rugby CLH Laser	CLH – Basic	Rugby 810 Horizontal Only
	CLX200/20	Rugby 820 Horizontal Manual Grade
	CLX300/30	Rugby 670 Digital Single Grade
	CLX400/40	Leica Rugby CLH Laser Digital Dual Grade
Rugby CLA Laser	CLA – Basic	Rugby 810 Horizontal Only
	CLX250/25	Rugby 820 Horizontal Manual Grade
	CLX500/50	Rugby 840 Horizontal & Vertical Manual Grade ‘X’ & ‘Y’ Axis
	CLX600/60	Rugby 870 Horizontal Digital Single Grade
	CLX700/70	Rugby 880 Horizontal Digital Dual Grade
	CLX700/70	Rugby 420 Horizontal Digital Dual Grade – Long Range

Warranty

Leica Warranties

Comes with a Lifetime Warranty. This warranty covers defects in material and workmanship.

However, specific terms and conditions might vary depending on the model and location.
Standard 3-Year Warranty for the Leica Combo (receiver/remote) also applies when the product is registered
on the Leica Geosystems website.

Lifetime Warranty

Leica Geosystems offers a lifetime warranty on many of its products, including some rotating laser levels.

Defects in Material or Workmanship:

The warranty typically covers defects that arise due to faulty materials or poor workmanship during the manufacturing process.

Repair or Replacement:

If a covered defect occurs, Leica Geosystems will usually repair or replace the product free of charge.

Terms and Conditions:

It’s essential to review the specific warranty terms and conditions for your particular Leica Combo model and location to understand the full scope of coverage.

Warranty Registration:

Extended warranty, if registered within 8 weeks of purchase.

Protect by Leica Geosystems – Warranty Overview

PROTECT by Leica Geosystems

Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:

Lifetime manufacturer’s warranty
Certified quality
No cost period for repair and service
Swiss technology

The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems

Leica Approved Sales, Warranty & Repair Centre

As a main Leica Geosystems agent & Warranty Centre in the UK we can offer training,
specialist product advice and demonstration.

We also offer comprehensive telephone support and training including advice on which
product would deliver the best value to you organisation and organizations business
requirements. We have a number of sales agents that are on the road visiting customers
up and down the UK and these are available for onsite trial and demonstrations.
