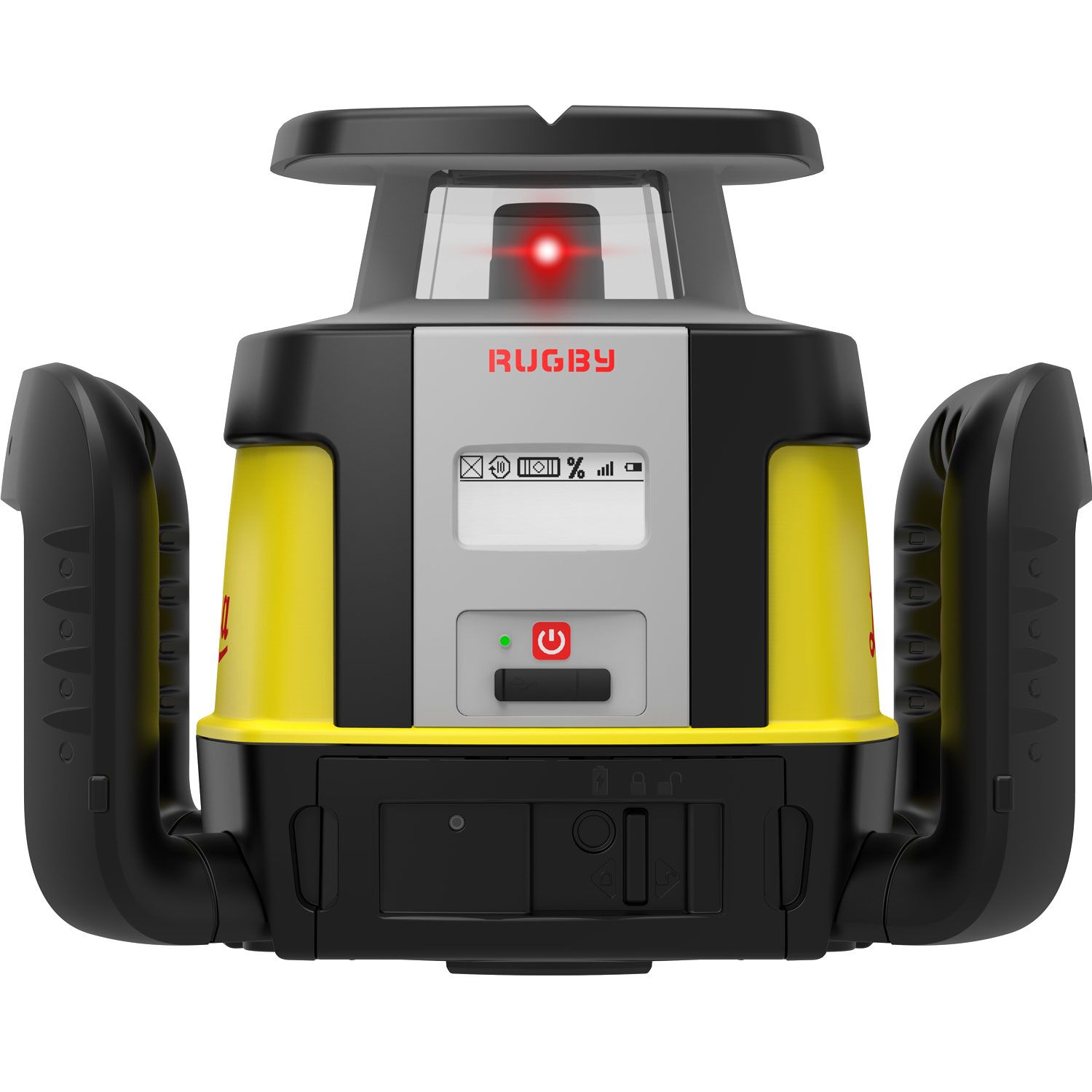

Leica Rugby CLH - Construction Laser Horizontal

Click to enlarge

Leica Rugby CLH Basic – Construction Laser Horizontal

£1,100.00 – £1,202.00

Basic horizontal laser

Easy-to-use, one-button laser
Concrete & formwork levelling
Height checking & transferring metre marks
Land levelling

CALL FOR UPGRADE & PRICE OPTIONS:
0800 292 2188
FREEPHONE

Equivalent to the Rugby 810. Comes fully Calibrated & Guaranteed for Accuracy.

Package Options:

Add to compare

Add to wishlist

Compare

SKU: N/A Category: Rotary Lasers Tags: Construction Laser, Heavy construction laser, Leica CLH Laser, Upgradeable laser

Description

Horizontal, one-button, heavy construction laser

Equivalent to the Rugby 810. CLH stands for Construction Laser Horizontal, and, as the name suggests, has been designed for horizontal and simple slope applications. The one-button design of the Leica Rugby CLH makes it easy to use, saving time by simplifying processes and making you far more productive. It gives reliable and accurate results every time.

This base model is ideal for concrete and formwork levelling, height checking and transferring, and land levelling applications. However, there are multiple upgrade options available, allowing you to undertake all levelling applications.

Supplied with:

Rugby CLH – Art no. 6012274
Rugby Combo – Art no. 864848
Li-ion Battery Pack & Charger

Hard Carry Case | User Manual
Calibration Certificate
Leica Protect Warranty

CALL FOR UPGRADE & PRICE OPTIONS:
0800 292 2188
FREEPHONE

Leica Rugby CLH - horizontal one button laser

Leica Rugby CLA/CLH Positioning - Comparison with Old Spec

	Software Versions	Equivalent Old Spec
Rugby CLH Laser	CLH – Basic	Rugby 810 Horizontal Only
	CLX200/20	Rugby 820 Horizontal Manual Grade
	CLX300/30	Rugby 670 Digital Single Grade
	CLX400/40	Leica Rugby CLH Laser Digital Dual Grade
Rugby CLA Laser	CLA – Basic	Rugby 810 Horizontal Only
	CLX250/25	Rugby 820 Horizontal Manual Grade
	CLX500/50	Rugby 840 Horizontal & Vertical Manual Grade ‘X’ & ‘Y’ Axis
	CLX600/60	Rugby 870 Horizontal Digital Single Grade
	CLX700/70	Rugby 880 Horizontal Digital Dual Grade
	CLX700/70	Rugby 420 Horizontal Digital Dual Grade – Long Range

Leica Rugby CLA/CLH Video Tutorials

Introduction to the Series – Leica Rugby CLA/CLH

How to do Slope Catching – Leica Rugby CLA

Leica Rugby CLA – How to do Scan Catching

Leica Rugby CLA – How to change grades (dial in grade)

Features of the Leica Rugby CLH Basic

Range: 1350m diameter ( with Combo, RE 140/160 )
Self-levelling accuracy** ± 1.5 mm at 30 m
Self-levelling range ± 6°
Environmental standard IP68 waterproof

Its robust design secures measurement stability & accuracy for your daily tasks. The handle is fixed to the base with special sockets that feature high rigidity & provide a strong mount to the base. The upgrade options allow for maximised performance in all levelling applications.

Leica Rugby CLA CLH CLI Documentation

View and download this product’s brochure, datasheet, manual & PROTECT Warranty Information in PDF format

Leica Rugby CLA-tive & CLH – Brochure

Leica Rugby CLH CLA CLI – Datasheet

Leica Rugby CLH CLA CLI – Manual

Leica Rugby CLH CLA CLI – Quick Guide

Leica Rugby CLH CLA CLI – Basic Applications

Leica-Rugby Software Comparison Chart

Protect by Leica Geosystems – Warranty Overview

Additional information

Brand	Leica Geosystems
Package Options:	Leica CLH Basic , Leica CLH Kit 1 , Leica CLH Kit 2 , Leica CLH Kit 3 , Leica CLH Kit 4

Product Specification

Technical data	Rugby CLH	Rugby CLA	Rugby CLI	LEICA COMBO (RECEIVER/REMOTE)

Warranty	5Y/2Y knockdown	5Y/2Y knockdown	5Y/2Y knockdown	Warranty	3Y
*Grade capability (X/Y Axes)**	8%	15%	15%	Anti-Strobe	Yes
Self-levelling accuracy**	± 1.5 mm at 30 m	± 1.5 mm at 30 m	± 1.5 mm at 30 m	Working range – Receiver	1350 m (diameter)
Self-levelling range	± 6°	± 6°	± 6°	Working range – Remote	600 m (diameter)
Operating range with Combo, RE 140/160	900 / 1350 m diameter	900 / 1350 m diameter	900 / 1350 m diameter	Detection window	120 mm
Remote range	600 m diameter	600 m diameter	600 m diameter	Digital read out / Offset / Variable detection window length	Yes
Laser class	2	2	1	Audio volumes	4 (including mute)
Environmental standard	IP68 Waterproof MILITARY STANDARD – 810G	IP68 Waterproof MILITARY STANDARD – 810G	IP68 Waterproof MILITARY STANDARD – 810G	Detection bandwidth	0.5, 1, 2, 5 mm
Operating temperature	-20 °C to +50 °C	-20 °C to +50 °C	-20 °C to +50 °C	Environmental standard	IP67
Storage temperature	-40 °C to +70 °C	-40 °C to +70 °C	-40 °C to +70 °C	Batteries (li-ion) / Battery operating time*	Li-Ion 3.7V / 50 h
Rotation speed	10 RPS	0, 2, 5, 10, 15, 20 RPS	10, 15, 20 RPS	Battery charging	5 h (full charge) 1 h (fast charge – 8 h operating)
Batteries	Li-Ion	Li-Ion	Li-Ion	Rechargeable battery / charging option with power bank (USB-C)	Yes
Battery operating time**	50 h	50 h	50 h	Operating temperature	-20°C to +50°C
Battery charging	5 h (full charge) 1 h fast charge = 8 h operating	5 h (full charge) 1 h fast charge = 8 h operating	5 h (full charge) 1 h fast charge = 8 h operating	Dimensions (H × W × D)	205 x 86 x 32 mm
Dimensions (H × W × D)	230 x 296 x 212 mm	230 x 296 x 212 mm	230 x 296 x 212 mm	Weight with batteries	0.4 Kg
Weight with batteries	3.8 Kg	3.9 Kg	3.9 Kg

*Rugby CLH grade capability only with software update. Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality.

Warranty

PROTECT by Leica Geosystems

Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:

Lifetime manufacturer’s warranty
Certified quality
No cost period for repair and service
Swiss technology

The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems

Leica Approved Sales, Warranty and Repair Centre

As a main Leica Geosystems agent and warranty centre in the UK we can offer training, specialist product and advice and demonstration and trial of moisture measuring and surveying.

We also offer comprehensive telephone support and training including advice on which product would deliver the best value to you organisation and organizations business requirements. We have a number of sales agents that are on the road visiting customers up and down the UK and these are available for onsite trial and demonstrations.
