With new extended fan angle
Time-consuming and tedious drawing of lines on walls is a thing of the past. The Leica Lino L2 projects them exactly, quickly and easily while you concentrate on the job in hand. The increased laser power enhances line visibility and improves the efficiency of interior work.
Supplied with:
Self-levelling
Not necessary to align the device as minor angular misalignments of ± 4° are compensated automatically so errors are prevented.
Exact 90° angle
Alignment work, such as marking 90° angles, is performed at the touch of a button. You really save time!
Quick Positioning
Magnetic smart adapters allow you to quickly attach your Leica Lino L2 ALK to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster.
Very easy to see laser lines
It is possible, e.g., to transfer reference points from one wall to the next. Leave your spirit level and string in your tool box.
Lock function
You can manually switch off the self-levelling using the lock function. The laser line can then be projected at any angle.

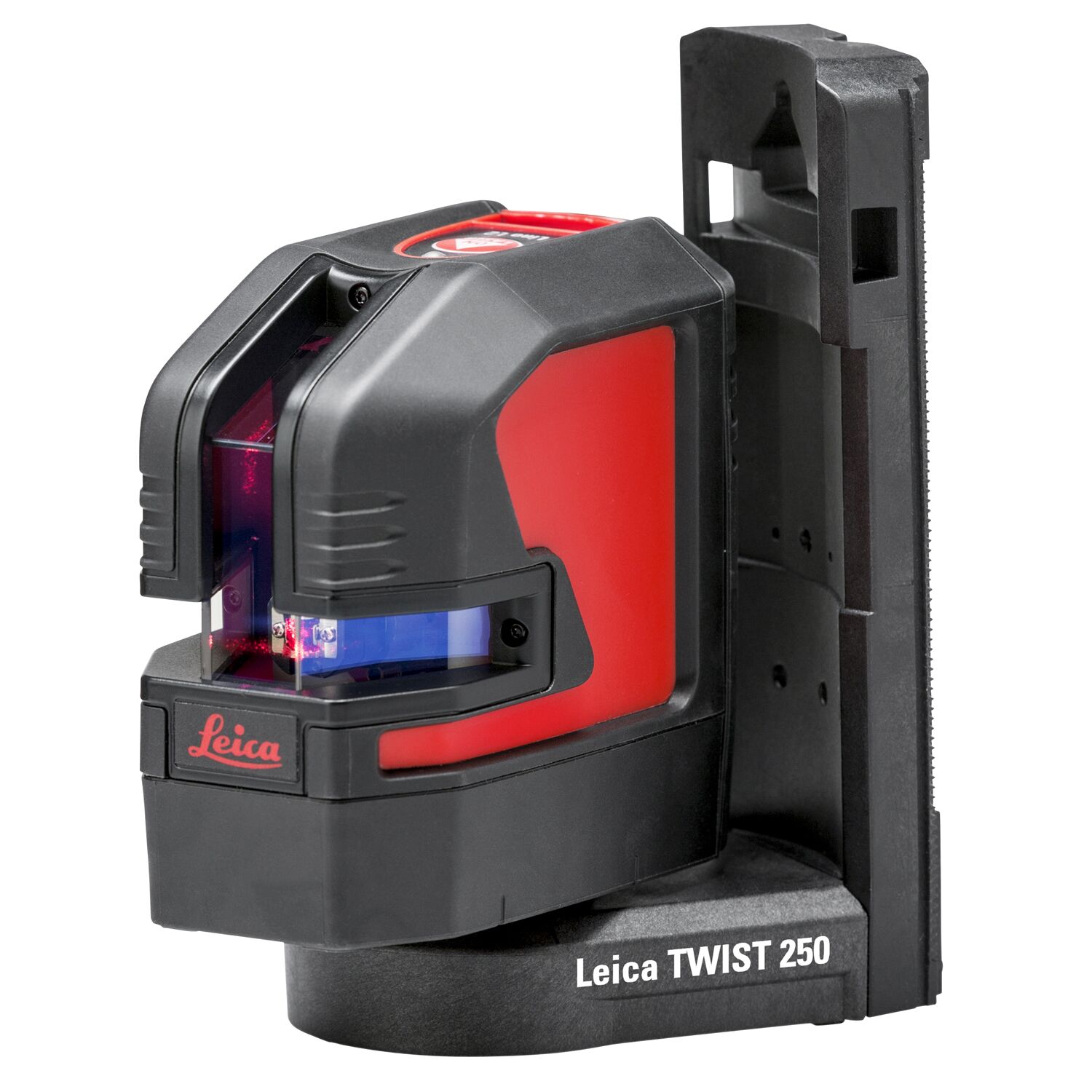

Smart Adapter
The Leica TWIST 250 Smart Adapter allows for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.
Key Features
- Exact & quick projection of horizontal & vertical lines
- 2 laser lines – horizontal & vertical – exact 90° angle
- Beam direction/fan angle – vertical / >180°, horizontal / >180°
- Self-levelling range 4°
- Extended fan angle > 180°
- Impact resistant rubber housing
- Inclination tracking
- Twist 250 magnetic bracket
- Dust & spray water protected to IP 54
- Magnetic attachment
| Features | Popular with |
|---|---|
| Range up to 25m* >80m with detector | Electricians, HVAC |
| Levelling accuracy ± 0.2mm @ 1m | Carpenters |
| Self-levelling range ± 4 ° | Plasterers |
| Number of laser lines 2 | Decorators, painters |
| Beam direction – vertical, horizontal | |
| Protection class IP 54 | |
| Batteries 3 x AA | |
| Battery life: 13h |
Leica Lino L2 Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
LEICA Geosystems AG (LEICA Geosystems), warrants to the original end user (Customer) that this DISTO Product will be free from defects in workmanship and materials, under normal use three (3) years shall apply, and (ii) batteries for which ninety (90) days shall apply, unless such warranty period has been extended by LEICA Geosystems, and provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product.
