3-Point Red Laser Kit
This 3 point red laser level (up, down, forward) is self-levelling, fast setting and gives you accurate point and reference lines almost instantly.
Supplied with:
DISCONTINUED
PLS HV2G Kit - Rechargeable
£929.00 Price incl. VAT: £1,114.80
PLS 480
Original price was: £359.00.£245.00Current price is: £245.00. Price incl. VAT: £294.00

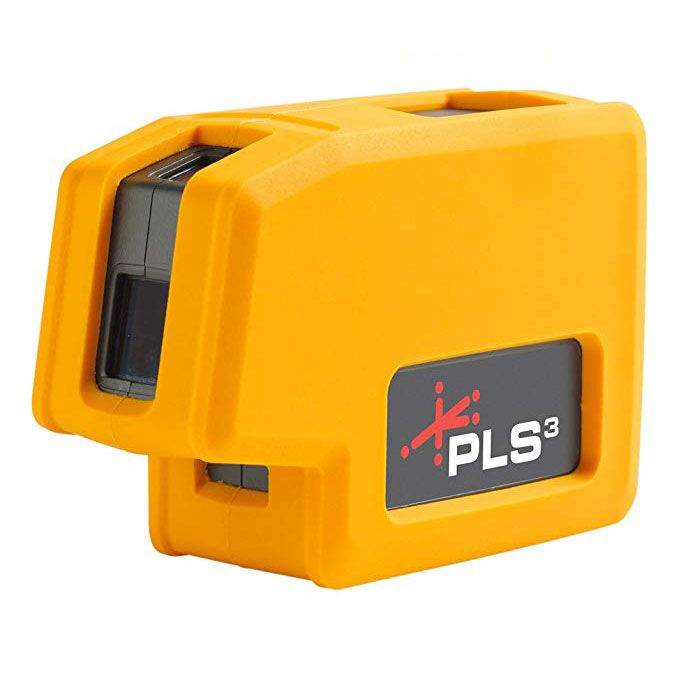

PLS3 Kit
The fast settling, self-levelling pendulum gives you accurate point and reference lines almost instantly.
- Point laser direction: 90º (up, down, forward)
- Durable pendulum lock platform
- Accurate to 6mm @ 30m
- Up to 30hr runtime
Supplied with:
- PLS 3R laser | Nylon pouch
- Floor stand | Magnetic wall bracket
- Hard carry case | 3 x AA alkaline batteries
Discontinued.
This product has been replaced by the PLS 3R Kit:
Description
Video tutorial
Introduction to the features of the PLS Lasers
Key Features
- Accuracy Layout right the first time, every time
- Pendulum Lock Equipped with a pendulum lock, ensuring safe transport and the ability to lock the laser level in tilt mode
- Environmental Protection IP 54 rating limits dust and water entry for years of operation on the job site
- 3 Year Warranty ensuring you don’t lose any time on the job
| Overview | Applications |
|---|---|
| Accuracy: 1/8″ @ 100′ (3mm @ 30m) | HVAC installation |
| Batteries: 3 x AA Alkaline (included) | Electrical construction |
| Laser: Class II | Residential construction |
| Environmental protection: IP54 | Steel stud walls |
| Working range: +/- 100 Feet (30 meters) | |
| Operating time: up to 30 hours continuous |
PLS Point Lasers
Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
Additional information
| Brand |
PLS |
|---|
Product Specification
Product Specification
| PLS 3R, 3G | PLS 5R, 5G | ||
|---|---|---|---|
| Battery | 3 x AA Alkaline IEC LR6 | ||
| Battery life – (continous use) | Red | ≥ 30 hours | ≥ 20 hours |
| Green | ≥ 16 hours | ≥ 9 hours | |
| Point laser direction | 90° up, down, forward | 90° up, down, left, right, forward | |
| Working range | ≤ 30 m (100 ft.) | ||
| Accuracy | ≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.) | ||
| Laser levelling | |||
| System | Automatic, Pendulum | ||
| Range | 4 ° | ||
| Point laser diameter | ≤ 4 mm at 5 m | ||
| Operating temperature | -10 °C to 50 °C (14 °F to 122 °F) | ||
| Storage temperature | -18 °C to 50 °C (with batteries) -20 °C to 70 °C (without batteries) |
||
| Relative humidity | 0 % to 90 % (0 °C to 35 °C) 0 % to 75 % (35 °C to 40 °C) 0 % to 45 % (40 °C to 50 °C) |
||
| Size (h x w x l) | 116 mm x 64 mm x 104 mm | ||
| Weight | ~0.6 kg (1.3 lb.) | ||
| Safety | IEC 61010-1: Pollution Degree 2 | ||
| Laser | Class 2 | ||
Warranty
Warranty
PLS Warranty
Summary of PLS Manufacturers Warranty
All PLS tools carry a three year warranty from the date of original purchase, which covers the lasers from anything other than obvious misuse or damage.
The easiest & fastest way to service your laser under warranty is to take itback to the dealer where you purchased it. If we determine that your tool is incovered under warranty, we will ship you a replacement tool at no charge, which will remain covered under the original 3-year period. Find out more >>
