Original price was: £279.00.£249.00Current price is: £249.00. Price incl. VAT: £298.80

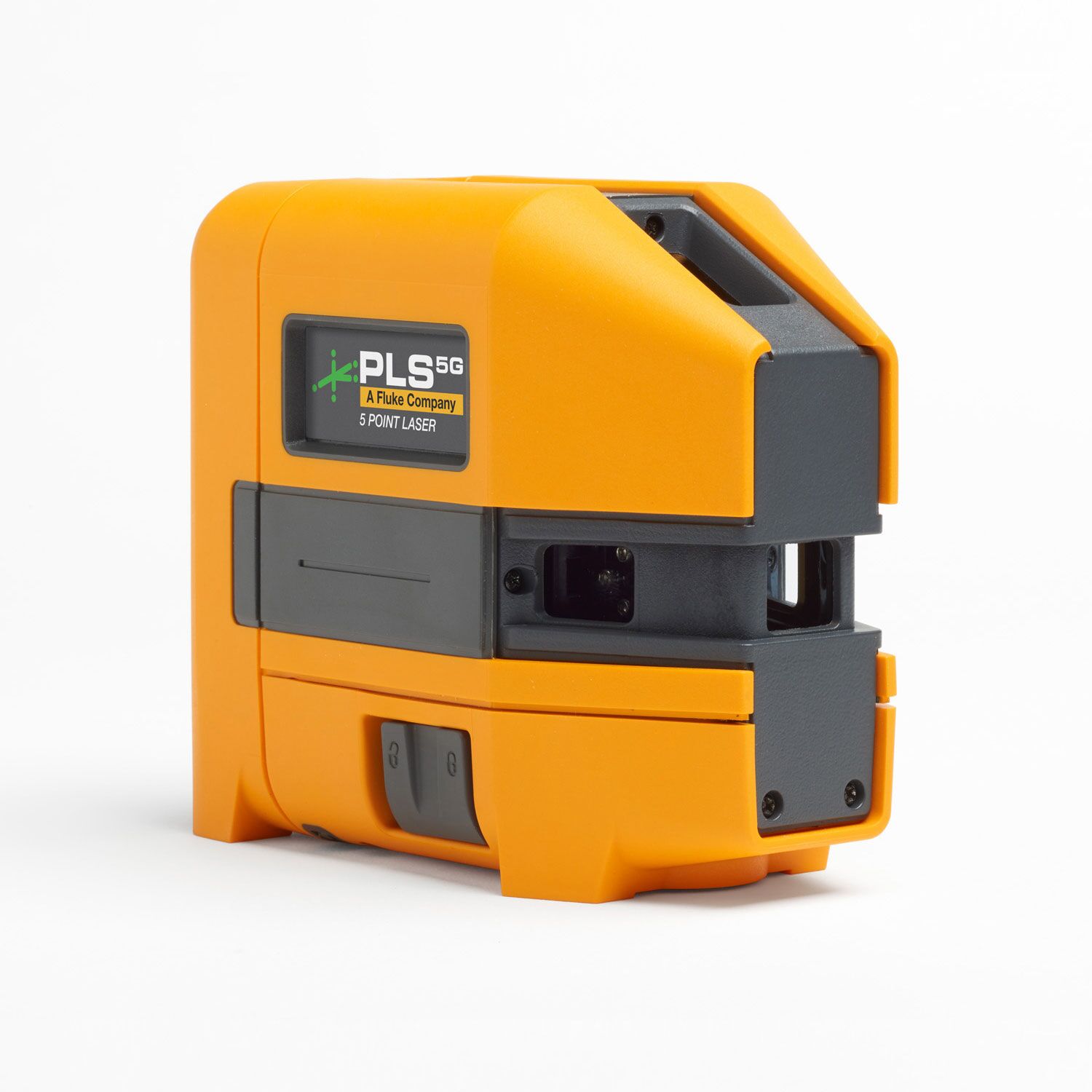

Self-levelling, five-point GREEN laser level, equipped for multiple applications.
Supplied with:
The PLS 5G self-levelling, fast setting green laser level gives you accurate point and reference lines almost instantly. This 5 point green laser level (plumb, level, and square horizontal and vertical points) is equipped for multiple applications. Includes the PLS Pendulum Target for easy transfer of points to the floor during square alignment.
Supplied with:
| Overview | Applications |
|---|---|
| Accuracy: 1/8″ @ 100′ (3mm @ 30m) | HVAC installation |
| Batteries: 3 x AA Alkaline (included) | Electrical construction |
| Laser: Class II | Residential construction |
| Environmental protection: IP54 | |
| Working range: 30m (with detector) |
View and download this product’s brochure, datasheet, and manual in a PDF format
| Brand |
PLS |
|---|
| PLS 3R, 3G | PLS 5R, 5G | ||
|---|---|---|---|
| Battery | 3 x AA Alkaline IEC LR6 | ||
| Battery life – (continous use) | Red | ≥ 30 hours | ≥ 20 hours |
| Green | ≥ 16 hours | ≥ 9 hours | |
| Point laser direction | 90° up, down, forward | 90° up, down, left, right, forward | |
| Working range | ≤ 30 m (100 ft.) | ||
| Accuracy | ≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.) | ||
| Laser levelling | |||
| System | Automatic, Pendulum | ||
| Range | 4 ° | ||
| Point laser diameter | ≤ 4 mm at 5 m | ||
| Operating temperature | -10 °C to 50 °C (14 °F to 122 °F) | ||
| Storage temperature | -18 °C to 50 °C (with batteries) -20 °C to 70 °C (without batteries) |
||
| Relative humidity | 0 % to 90 % (0 °C to 35 °C) 0 % to 75 % (35 °C to 40 °C) 0 % to 45 % (40 °C to 50 °C) |
||
| Size (h x w x l) | 116 mm x 64 mm x 104 mm | ||
| Weight | ~0.6 kg (1.3 lb.) | ||
| Safety | IEC 61010-1: Pollution Degree 2 | ||
| Laser | Class 2 | ||
Summary of PLS Manufacturers Warranty
All PLS tools carry a three year warranty from the date of original purchase, which covers the lasers from anything other than obvious misuse or damage.
The easiest & fastest way to service your laser under warranty is to take itback to the dealer where you purchased it. If we determine that your tool is incovered under warranty, we will ship you a replacement tool at no charge, which will remain covered under the original 3-year period. Find out more >>
