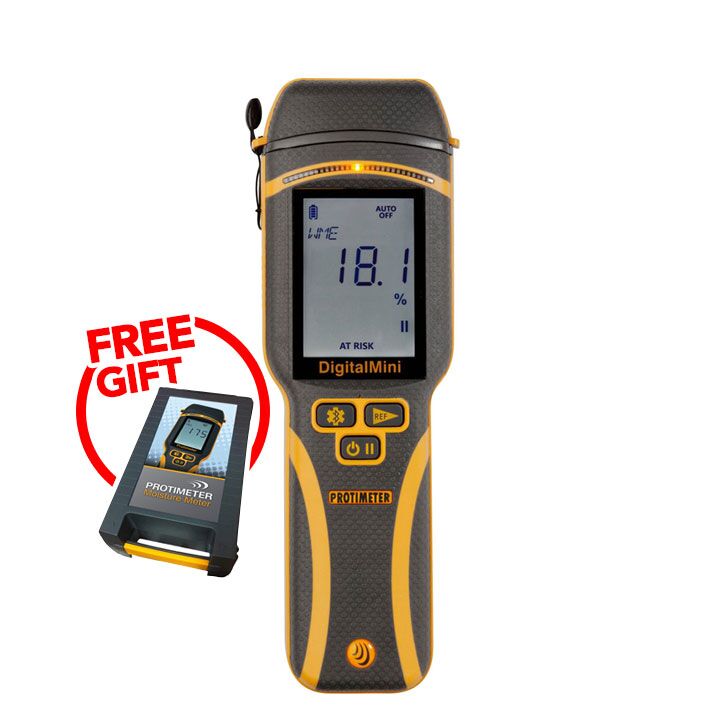

BLD5775 Protimeter Digital Mini - Black Friday

Protimeter Digital Mini BLD5775 - Cap Off

Watch video

Click to enlarge

Protimeter Digital Mini 3 BLD5775

Name: Protimeter Digital Mini 3 BLD5775
Brand: Protimeter
SKU: BLD5775
Availability: InStock

Original price was: £259.00.Current price is: £239.00. Price incl. VAT: £286.80

Digital pin type moisture meter. The Protimeter Digital Mini can help building professionals assess building moisture levels during new build and refurbishing activities.

This moisture meter also has Bluetooth to connect and save readings to the Protimeter Connect App. Each reading has a date and time stamp to help you keep track of your measurements.

Supplied with:

Digital Mini BLD5775
2-Pin Moisture Probe | Calcheck device
Pouch & Belt loop | Operators Instructions
2 x AA Batteries
2 year warranty

Get a FREE WATERPROOF PROTECTIVE HARD CASE
when you buy a Digital Mini 3 BLD5775

Add to Wishlist

Add to compare

Add to wishlist

Compare

SKU: BLD5775 Categories: Humidity & Moisture, Pin-Type Tags: BLD5775, Moisture Meter, Protimeter, Protimeter Digital Mini

Description

Digital pin type moisture meter

The Protimeter Digital Mini can help building professionals – such as contractors, surveyors, home builders and architects – assess building moisture levels during new build and refurbishing activities. It helps you easily identify the extent of the moisture penetration, diagnose the cause of the problem and monitor changes in moisture level. Plus, the ability to add optional attachments and a patent pending reference mode enables you to compare your reading with a baseline measurement.

Supplied with:

Digital Mini
2-Pin Moisture Probe
Calcheck Device
Pouch
Bluetooth enabled

Belt loop
Operators Instructions
2 x AA Batteries
FREE Protimeter Connect App
2 Year Warranty

Protimeter Digital Mini - features at a glance

Protimeter Digital Mini Video Tutorial

Protimeter Connect App:

All new Protimeter devices are equipped with BLE connectivity for users to record measurement readings and photos. Protimeter devices with Bluetooth are able to use the FREE Protimeter Connect App.

The Protimeter Connect app is available for both iOS and Android platforms, enabling users to seamlessly connect to the meter and gather meter readings along with other pertinent data.

Protimeter Connect App Features:

Store data readings from all functions of the meter
Allows individual job set up
Time and date stamp
Material type and measurement locations
GPS location
Photos with embossed measurement readings
Remote web browser access to readings and photos

Digital Mini Applications

The preferred industry choice for surveying and investigating moisture in buildings.

Excessive moisture in buildings can lead to decay and deterioration of components and decorative finishes.

This moisture meter uses a Pin Type Measurement Function & shows results on a large digital display & useful colour changing LED’s.

Measure Mode Pin-Type

Measure mode readings are precise and specific to the contact area of the electrodes that are used.

Pin mode is used to measure the moisture level at the surface. Sub-surface measurements can be obtained by using the Digital Mini with optional probes, such as the Hammer Electrode for wood, Deep Wall Probes for solid walls and the EIFS probe for exterior insulation and finishing systems.

Reference Mode

Protimeter’s patent pending Reference Mode is particularly useful when there is a need to compare measurements taken at numerous points in a building to a selected reference or baseline value.

Identify the extent of the moisture penetration
Diagnose the cause of the problem
Monitor change in the moisture level

The instrument also has an auxiliary port allowing you to easily connect the following Optional Moisture Probes.

Protimeter Digital Mini - optional Moisture Probe

Hammer Electrodes

Used to obtain sub-surface measurements in wood. The Heavy Duty version is designed for frequent use in both hard and soft woods whereas the Light Duty version is designed for occasional use in soft woods.
Deep Wall Probes
Used to obtain measurements at depth in solid and composite walls. Clearance holes need to be drilled in the material to the required depth into which the Deep Wall Probes are inserted. The moisture gradient of the material can be identified by increasing the depths of the holes incrementally and then taking readings.
EIFS Probes
Ideal for measuring the moisture level within and through exterior insulation and finishing systems types of wall cladding.

Protimeter
Digital Mini
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Protimeter Digital Mini Data Sheet

Protimeter Digital Mini Manual

Protimeter Digital Mini – Calibration Tables for Wood

Additional information

Brand	Protimeter

Product Specification


7.9 to 99% WME (pin measurement)	Dry (green) – 7 – 16.9 At risk (yellow) – 17 -19.9 Wet (red) – 20 – 99.9
Depth of Measurement	Pin up to 12.7 mm
Display 1	Digital LCD display
Display 2	Multicolour LED Arc – green (dry) yellow (at risk) red (wet)
Power	9V battery (included)
Weight	226g
Dimensions (mm)	190mm x 70mm x 49mm

Warranty

2 Year Manufacturer’s Warranty

Summary of Protimeter Manufacturers Warranty

The manufacturer, Amphenol Advanced Sensors only supply Protimeters products through their dealer network.

Protimeter Authorised Registered Dealer
Trade Survey are an authorised registered dealer & provide customer service for it’s products. We can offer technical support, advice, Warranty replacements & repairs.

Protimeter 2 Year Warranty

All Protimeters are covered by an extended 2 Year Warranty for the main instrument, while accessories are covered by a 1 Year Warranty. This protects the important & most expensive parts of the instrument.
