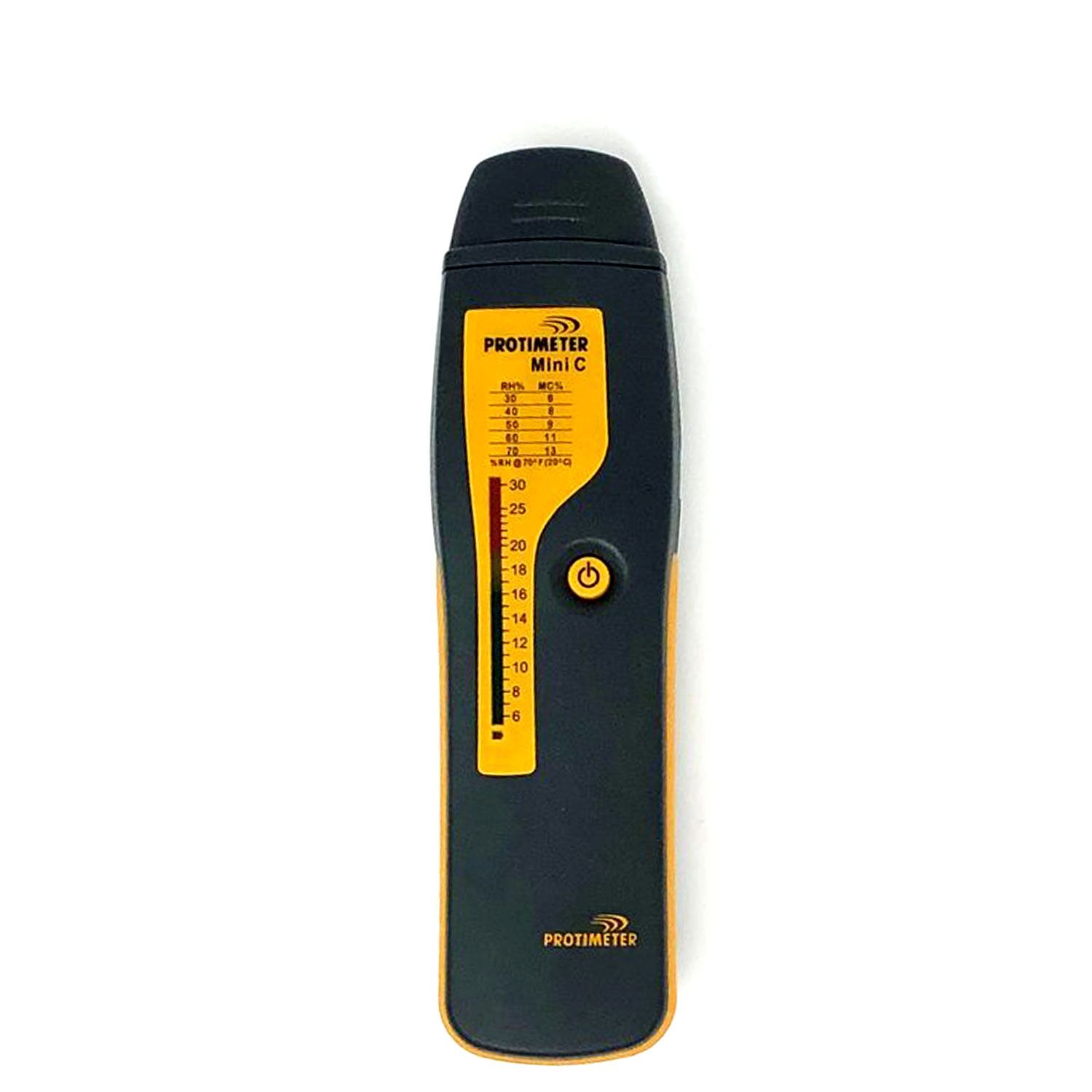

Protimeter Mini C BLD2001

Original price was: £144.00.Current price is: £124.00. Price incl. VAT: £148.80

Digital pin type moisture meter. The Protimeter Mini for general purpose measurement applications in construction materials.

  • Pin mode
  • Colour coded LED display
  • Optional deep wall probe

Supplied with:

  • Protimeter Mini
  • Moisture Probes | Calcheck
  • Pouch & Belt loop | 9v Battery
  • Operators Instructions
  • 2 year warranty
Compare
Description

Digital pin type moisture meter

The Protimeter Mini C is ideal for assessing the moisture condition in buildings. A color-coded scale enables the user to assess the moisture level of wood and dry wall at a glance. The numerical values represent the actual percent moisture content of wood (% MC) and the wood moisture equivalent (WME) of concrete, dry wall and other materials. The Mini can be used to determine if the fabrics of a building are in a dry, borderline or damp condition.

It is important that hardwood finish materials are in moisture equilibrium with the local indoor environment. The Mini C has this information printed right on the label. For example, a 70°F (20°C) environment with an average relative humidity of 60% and would require a moisture content of approximately 11%.

The Mini C can also be used to make quick reference readings on concrete sub floors. These readings are surface, but allow the operator to quickly determine the moisture risk. It is a requirement that concrete be tested with an ASTM-approved test such as the F2170 in situ humidity probe test.

A range of optional extras are available, including pin extension probes and a hammer electrode for getting measurements up to 1 1/2 inch (38mm) below the surface.

Supplied with:

  • PROTIMETER Mini C
  • Two replacement pin electrodes
  • Pin protection cap
  • Calibration check device
  • Velcro pouch
  • Calibration chart for 150 wood species
  • Operators Instructions
  • 9V Battery
  • 2 Year Warranty
Protimeter Mini C BLD2001 - features at a glance
Protimeter Mini - measure moisture in brickwork
Measure Mode Pin-Type

Ideal for measuring brickwork, plaster during home inspections.

Protimeter Mini - deep wall probes
Reference Mode

Deep wall probes provide readings of masonry at depth or in cavities.

Protimeter Mini - WME readings
Hammer Electrodes

WME readings are design for all wood products.

Key Features

  • Helps prevent warping and cracking
  • Avoids costly call backs
  • Quick and easy to use
  • Wide range of wood species calibrations
  • Durable design
  • Plug-in optional extras
  • Auto shut off
Specifications Applications
Range: 6% to 30% numerical label Home Inspectors
Display: 60 LEDs – green (dry), yellow (at risk) & red (wet) Flooring Contractors
Weight 150g Termite pest control
Dimensions 180 x 28 x 49 mm Wood product manufacturers & traders
Batteries 1 x 9V Cleaning & floor restoration professionals
Wood workers

Digital Mini C Applications

The Protimeter Mini C is a low cost, highly durable moisture meter designed specifically for the wood floor installation industry. The Mini C is a pin type moisture meter that displays instant moisture content results on its 6 to 30% LED scale. The 3 colour coded LED scale gives the operator instant information regarding “Dry”, “At Risk” or “Wet” conditions.

Protimeter Mini - applications

Protimeter
Mini C
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Protimeter

Product Specification

Product Specification

Measurement Range (%WME) 6% to 30% numerical label
Display 60 LEDs –
green (dry) yellow (at risk) red (wet)
Power 9V battery (included)
Weight 150g
Dimensions (mm) 180 x 28 x 49
Batteries1 x 9V  AA (Included)
Warranty

Warranty

Leica Sales & Warranty Centre

2 Year Manufacturer’s Warranty

Summary of Protimeter Manufacturers Warranty

The manufacturer, Amphenol Advanced Sensors only supply Protimeters products through their dealer network.

Protimeter Authorised Registered Dealer
Trade Survey are an authorised registered dealer & provide customer service for it’s products. We can offer technical support, advice, Warranty replacements & repairs.

Protimeter 2 Year Warranty

All Protimeters are covered by an extended 2 Year Warranty for the main instrument, while accessories are covered by a 1 Year Warranty. This protects the important & most expensive parts of the instrument.
