TradeTuff Drain Camera – 40M

£2,350.00 Price incl. VAT: £2,820.00

Drain/Pipe Inspection Camera System with 20m/66ft cable

  • 40m Drain Camera | 10 inch Display
  • 23cm Camera Head – Self levelling with Sonde
  • 6.8mm Cable Diameter

Supplied with:

  • 23mm Camera Head/Sonde | 40m Cable Wheel (6.8mm)
  • Remote Control | Connection Cable
  • Power Adapter | Car Charger
  • Screw Driver | Screws | Camera Head Waterproof Seal
  • 10 inch Display Monitor | Waterproof Control Box
  • 2 x Plastic Guides (80mm & 46mm)
  • 3 Year Warranty
Add to Wishlist
Add to compare
Add to wishlist
Compare
SKU: TT-DC-40M-SLS Category: Tags: , ,
Description

A More Advanced Drain Camera

A traditional Drain Camera has all its parts mounted within a box. While this is handy for transportation, the downside is that the drain rod is rarely cleaned after use. This means that the inside of the box can become very dirty, wet and this can in turn damage the drain camera. TheTradeTuff Drain Camera is a most practical device on the market with the drain rod stored out of the box where it can easily be cleaned and won’t contaminate the rest of the device.

TradeTuff Drain Camera 30/40m - easy to clean.

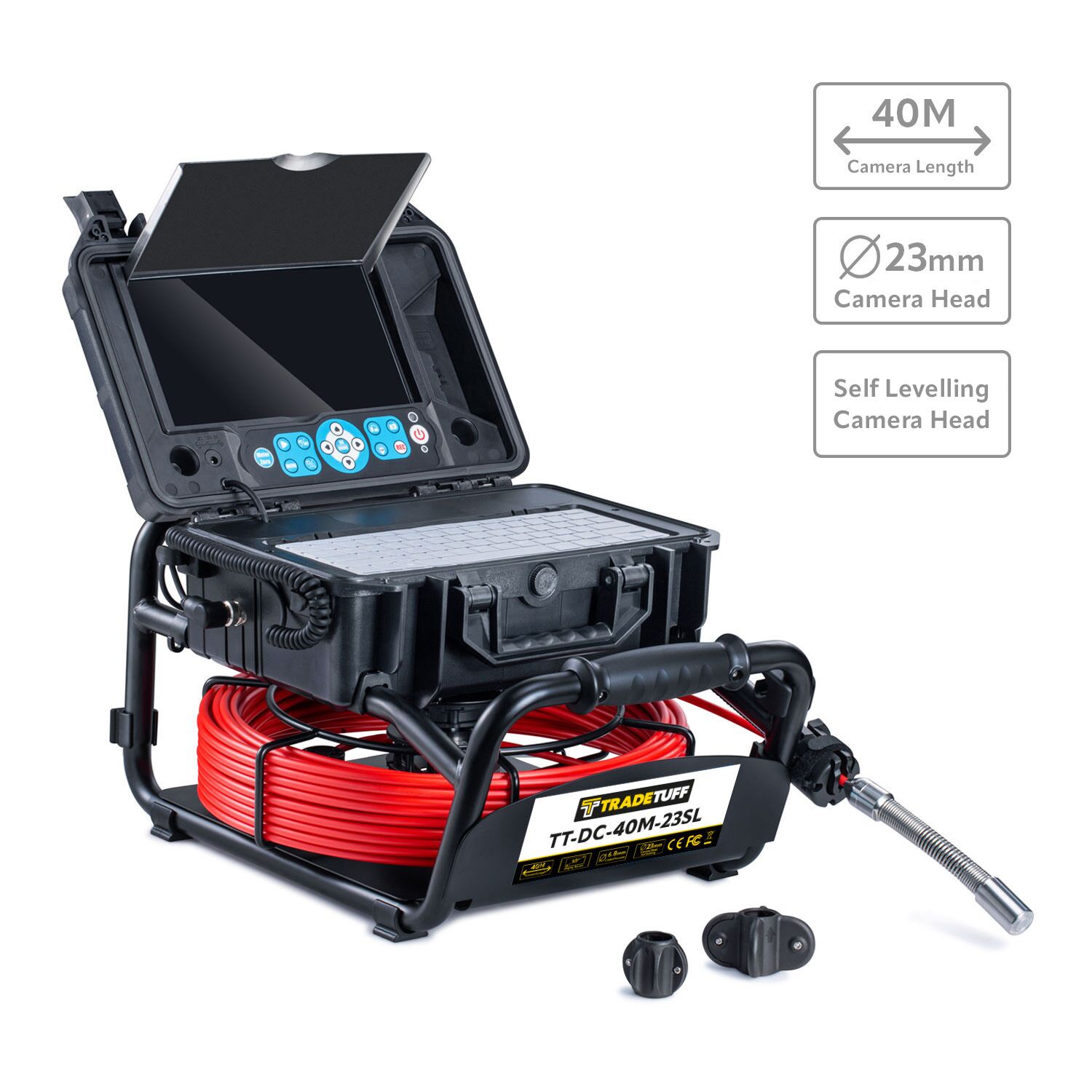

TradeTuff Drain Camera inc Sonde 40m - at a glance

Supplied with:

  • 23mm Camera Head - self levelling with incorporated Sonde
  • 10 inch Display Monitor
  • 40m Cable Wheel (6.8mm)
  • Remote Control | Connection Cable
  • Power Adapter | Car Charger
  • Waterproof Control Box
  • Screw Driver | Screws | Camera Head Waterproof Seal
  • 2 x Plastic Guides (80mm & 46mm)
  • 3 Year Warranty

A professional video inspection camera designed for inspection of sewer, pipe, air ducts, undergound cable pipes, etc. Equipped with a self levelling Φ23mm 1/3” CMOS camera head, 40m fiberglass rod cable and 10” LCD monitor with SD card recording, it’s a great choice for pipe DN 50mm~140mm.

TradeTuff Drain Camera 30m - Easy to Transport

Ideal for inspection of sewer, pipe, air ducts, undergound cable pipes, etc.

Compact, rugged & waterproof – it’s easy to clean & easy to carry & transport to site.

TradeTuff Drain Camera - system keyboard

System keyboard & monitor with large screen.

Can be used to write simple notes on the screen. This will be displayed on the images and videos that are stored in the SD card.

TradeTuff Drain Camera - Back

Robust & designed for easy maintenance

The whole system is rain resistant (box closed). Plus, the cable reel is designed for easy cleaning.

  • On-Screen date and time, with on-screen distance counter.
  • Microphone for local audio recording
  • 1080P Full HD Stainless steel camera head, IP68 waterproof.
  • Diameter of camera: 23 mm
  • Object lighting with 15 white LEDs with brightness control
  • 10” LCD color monitor, with image rotate button, one push record button
  • Rechargeable battery lasts up to 6 hours
  • Effective problem localisation in walls, pipes, cavities
  • High-resolution camera for detailed image and video capture
  • Whole system waterproof (box closed). With Keyboard for text input (English).
  • The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
  • 130° wide vision angle. Ability to go through 90° bends in 52mm pipes.
  • 40m fiberglass 6.8mm push rod, with smart braking system.

TradeTuff Drain Camera
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

TradeTuff Drain Camera - Data Sheet

TradeTuff Drain Camera 30m /40m – Datasheet

TradeTuff Drain Camera - Manual

TradeTuff Drain Camera – User Manual

Additional information
Brand

Trade Tuff
Product Specification

Product Specification

PRODUCT SPECIFICATION
Camera Head
Diameter Camera Head 23 mm | Self levelling
Camera Resolution 1920 x 1080 pixels
Field of View (FOV) 130°
Focus Distance | Depth of Focus (DOF) 15 cm (approx) | 20 cm (approx)
Length of Probe 40 m
Illumination Built-in 15 × LED (White)
Waterproof 20m Under Water (camera fixed on cable)
Shell Material #304 stainless steel
Operating Temperature -10~50℃/+14~+122℉
Storage Temperature -20~60℃/+4~+140℉
Cable Wheel
Fiberglass Rod Cable 40 m
Diameter of push cable 6.8mm
Cable Material Fiberglass covered by PP
LCD Monitor
Screen 10-inch | 16:9 Super bright HD color LCD screen
Resolution 1024×600 pixels
Mirror & Flip Supports image mirror & flip
Video Resolution AHD 1080P / CVBS D1
Video Encoding H.264
Audio Recording Local sound recording
Output TV & audio output, on-screen date and time, on-screen meter/ft. distance display (optional)
External Memory Support SD memory card up to 64GB
Operating Temperature -10~50℃/+14~+122℉
Storage Temperature -20~60℃/+4~+140℉
Battery Supply
Power Supply DC 12V input
Battery Capacity 7.2V 6400 mAh Li-ion battery
Power Output 6-12V DC, USB 5V
Work/Charge Time 6/8 hours
