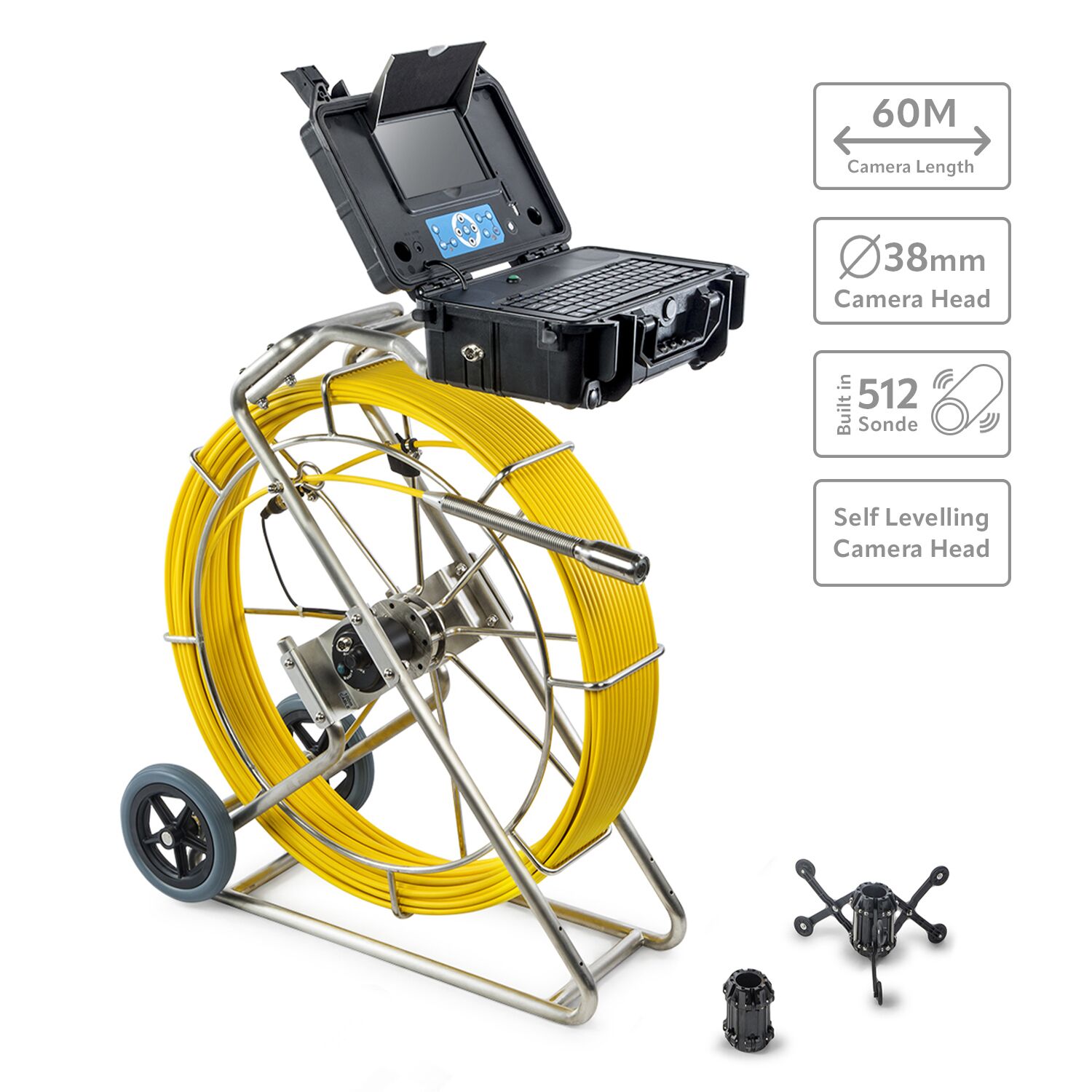

TradeTuff 60M Drain Camera – 38mm Self Levelling Camera + Sonde

£3,499.00 Price incl. VAT: £4,198.80

Built for reliability in demanding environments, this all-in-one drain and pipe inspection camera is ideal for inspecting sewers, plumbing systems, ducts, and more. Mounted on a durable stainless steel wheeled frame, complete with a robust 60m fiberglass push cable for extended reach.

The system features a detachable 10-inch LCD monitor with DVR for easy viewing and recording, along with a self-leveling 38mm camera head that delivers consistently upright, clear footage.

  • 60m Drain Camera | 10 inch LCD Display
  • 9mm Cable Diameter | 38mm Camera Head – Self levelling
Add to Wishlist
Compare
Add to wishlist
Compare
SKU: TT-DC-60M-38SLS Category: Tags: ,
Description

A More Advanced Drain Camera

A traditional Drain Camera has all its parts mounted within a box. While this is handy for transportation, the downside is that the drain rod is rarely cleaned after use. This means that the inside of the box can become very dirty, wet and this can in turn damage the drain camera. TheTradeTuff Drain Camera is a most practical device on the market with the drain rod stored out of the box where it can easily be cleaned and won’t contaminate the rest of the device.

Supplied with:

  • 38mm Camera Head - Self levelling with incorporated Sonde
  • 60m Fiberglass Push Rod Cable (Dia.9mm)
  • 10" LCD Monitor with Built-in Li-ion Battery
  • Mini Roller Skid (Dia.70mm) | Universal Roller Skid (Dia.130-250mm)
  • Remote Control | Screw Driver
  • Power Adapter | Car Charger
  • Universal Monitor Bracket | U-Shape Wheel Extension Handle
  • 3 Year Warranty
  • Tool Bag | Hex Wrench | Double Box Wrench

A professional video inspection camera designed for inspection of sewer, pipe, air ducts, underground cable pipes, etc. Equipped with a self levelling Φ38mmx18mm 1/3″ CMOS camera head, 60m fiberglass rod cable and 10” LCD monitor with SD card recording,.

Ideal for inspection of sewer, air ducts, plumbing, cable pipe and ventilation systems etc.

Compact, rugged & waterproof – it’s easy to clean & easy to transport to site.

TradeTuff Drain Camera - system keyboard

System keyboard & monitor with large screen.

Can be used to write simple notes on the screen. This will be displayed on the images and videos that are stored in the SD card.

Robust & designed for easy maintenance

The whole system is rain resistant (box closed). Plus, the cable reel is designed for easy cleaning.

Two Roller Skids Included

Mini Roller Skid (Dia.70mm) for pipe Dia.75mm-120mm

Universal Roller Skid (Dia.130-250mm) for pipe Dia.125mm-300mm

  • On-Screen date and time, with on-screen distance counter.
  • Microphone for local audio recording
  • 1080P Full HD Stainless steel camera head, IP68 waterproof.
  • Diameter of camera: 38 mm
  • Object lighting with 15 white LEDs with brightness control
  • 10” LCD colour monitor, with image rotate button, one push record button
  • Rechargeable battery lasts up to 6 hours
  • Effective problem localisation in walls, pipes, cavities
  • High-resolution camera for detailed image and video capture
  • Whole system waterproof (box closed). With Keyboard for text input (English).
  • The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
  • 120° wide vision angle. Ability to go through 90° bends in 52mm pipes.
  • 60m fiberglass 9mm push rod, with smart braking system.

TradeTuff Drain Camera
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

TradeTuff Drain Camera 60m – User Manual

Additional information
BrandTrade Tuff
Product Specification

Product Specification

PRODUCT SPECIFICATION
Camera Head
Diameter Camera Head 38 mm | Self levelling Built-in
Camera Total Length 318mm
Field of View (FOV) 120°
Focus Distance | Depth of Field 12 cm (approx) | 120 cm (approx)
Transmitter 512hz Built-in
Illumination Built-in 12 × LED (White)
Waterproof 20m Under Water (camera fixed on cable)
Shell Material #304 stainless steel
Operating Temperature -10~50℃/+14~+122℉
Storage Temperature -20~60℃/+4~+140℉
Cable Wheel
Fiberglass Rod Cable 60 m
Diameter of push cable 9mm
Cable Material Fiberglass covered by PP
LCD Monitor
Screen 7-inch | 16:9 Super bright HD colour LCD screen
Resolution 1024 x 600 pixels R.G.B
Mirror & Flip Supports image mirror & flip
Video Resolution CVBS D1
Video Encoding H.264
Audio Recording Support Local Sound
Output TV & audio output, on-screen date and time, on-screen meter/ft. distance display (optional)
External Memory Support SD memory card up to 64GB
Operating Temperature -10~50℃/+14~+122℉
Storage Temperature -20~60℃/+4~+140℉
Battery Supply
Power Supply DC 12V input
Battery Capacity 7.4V 5200 mAh Li-ion battery
Power Output 6-12V DC, USB 5V
Life/Charge Time 4/8 hours
Warranty

Warranty

Sales & Warranty Centre

1 Year Manufacturer’s Warranty

Summary of TradeTuff Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

TradeTuff warrants to the original end user (Customer) that this product will be free from defects in workmanship and materials, under normal use one (1) year shall apply, and (ii) batteries for which ninety (90) days shall apply, provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product.

The warranty period begins on the proved purchase date (or if applicable, date of delivery or date of acceptance report). TradeTuff sole obligation under this express warranty shall be, at TradeTuff sole option and expense, to replace or repair the Product or part, or refund the purchase price paid for the Product. TradeTuff warrants any repaired or replaced Product or part for a period of ninety (90) days from shipment, or through the end of the original warranty, whichever is longer. All Products or parts that are replaced become the property of TradeTuff . This express warranty does neither cover consumables, such as reflectors, bulbs and fuses, nor third party products.

Limitation of liability

TradeTuff also excludes any liability, whether based in contract or tort (including negligence), for incidental, consequential, indirect, special, or punitive damages of any kind, or costs of procurement of substitute products by customer, or for the loss of revenue or profits, loss of business, loss of information or data, or other information or financial loss arising out of or in consequence with the sale, installation, maintenance, use, performance, failure, or interruption of this product, even if TradeTuff or its distributors have been advised of the possibility of such damages, and limits its liability to replacement, repair, or refund of the purchase price paid, at TradeTuffs option. This limitation of liability for damages will not be affected if any remedy provided herein shall fail of its essential purpose.
