£1,050.00 Price incl. VAT: £1,260.00

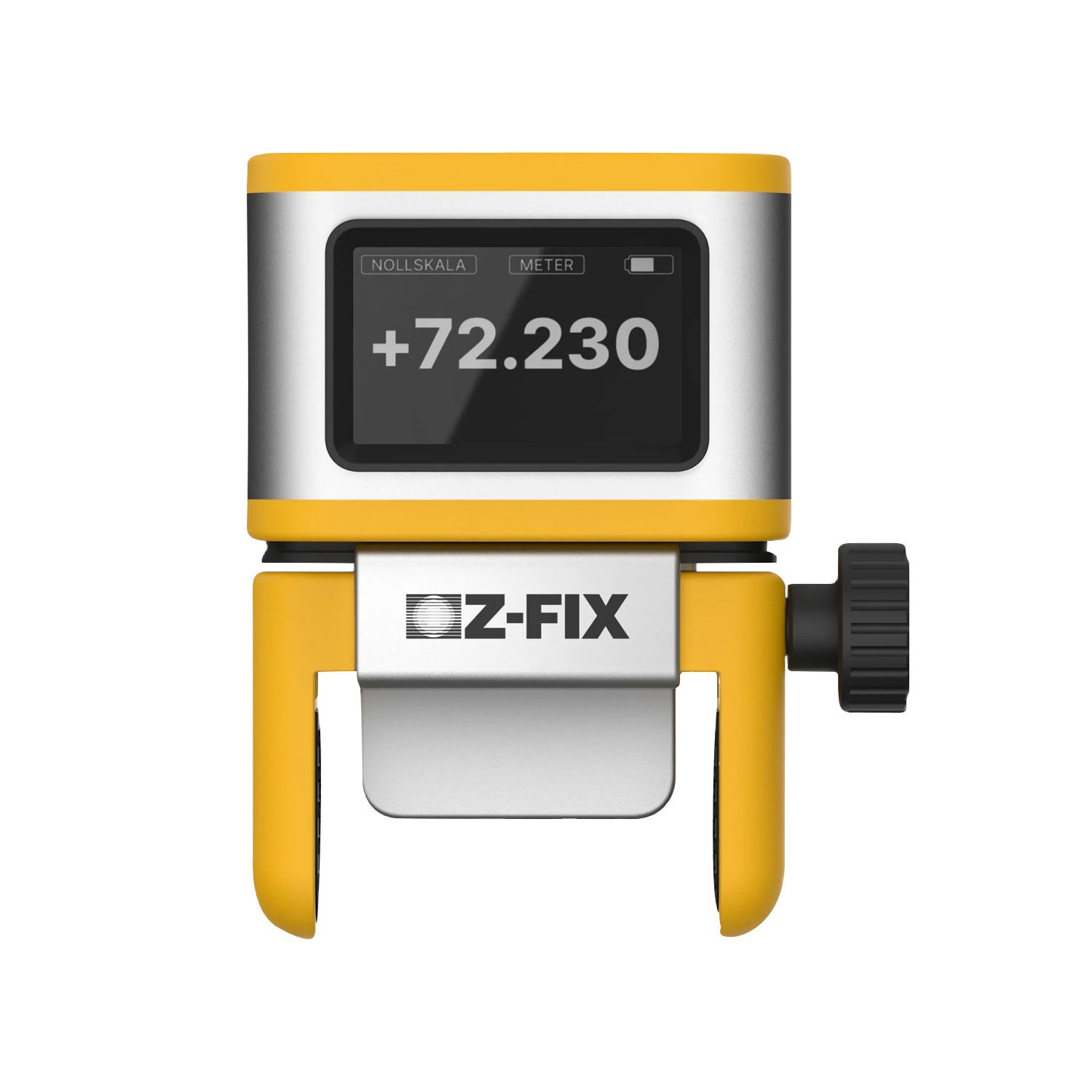

The Z-FIX Computer Head makes working with construction & engineering lasers easier.
Z-FIX works with all brands of lasers/laser receivers – Spectra, Leica, Topcon, Hilti, Geofennel, Geomax, Bosch, Nedo and others can be used.
Attach your laser receiver underneath the computer head, on the universal clamp. Then thread the computer head onto the main rod, and you’re ready to go.
Z-FIX works with all brands of lasers/laser receivers – Spectra, Leica, Topcon, Hilti, Geofennel, Geomax, Bosch, Nedo and others can be used.
View and download this product’s brochure, datasheet, and manual in a PDF format
| Brand | Z-FIX |
|---|
| Technical Specification | |
|---|---|
| Casing | PC-ABS and Aluminium 6060-T66 |
| Battery type Alkaline/Rechargeable | Alkaline/Rechargeable |
| Power supply | 4pcs 1.5V (type LR6/AA) |
| Operating time | 100 h at 68 °F (20°C) with alkaline dry cell batteries |
| Operating temperature | 4 °F to 122 °F (- 20 °C to 50 °C) |
| Storage temperature | -4 °F to 122 °F (- 20 °C to 50 °C) |
| Display | Illuminated 2.7” LCD |
| Frequency band | Bluetooth: 2400-2483.5MHz2400-2483.5MHz |
| Maximum output power Bluetooth | +8 dBm |
| Measurement accuracy | ±1mm/2m (Electronics ±0.35mm, movement range of drive ±0.2mm/2m & dimensional tolerance of aluminum profile chain ±0.3mm/2m) |
| Product dimensions | weight 0.65kg (1.43 lbs) with dry cell batteries |
| Clamp Mount Range | Laser receiver width: 60mm-90mm |
| Clamp Mount Capacity | Maximum weight of laser receiver: 0.49 kg (1.08 lbs) |
| Standby mode | After 5 minutes |
| Auto shut off | After 8 hours |
| Programmable heights | Meter: 0 and ±999.999, Inch: 0 and ±9999.999, Foot: 0 and ±9999.999 |
