Leica LMR240 Machine Receiver

Original price was: £600.00.Current price is: £459.00. Price incl. VAT: £550.80

  • One-person operation | Range: 200m
  • Accuracy: Fine – 6mm | Coarse – 30mm
  • Alkaline battery 3 x AA | 130hr battery life
  • Automatic shut-off | IP67 (waterproof)

Supplied with:

  • Leica LMR240 Receiver
  • Batteries | Case | User Manual
  • 2 Year Warranty
Compare
SKU: 773569 Category: Tags: ,
Description

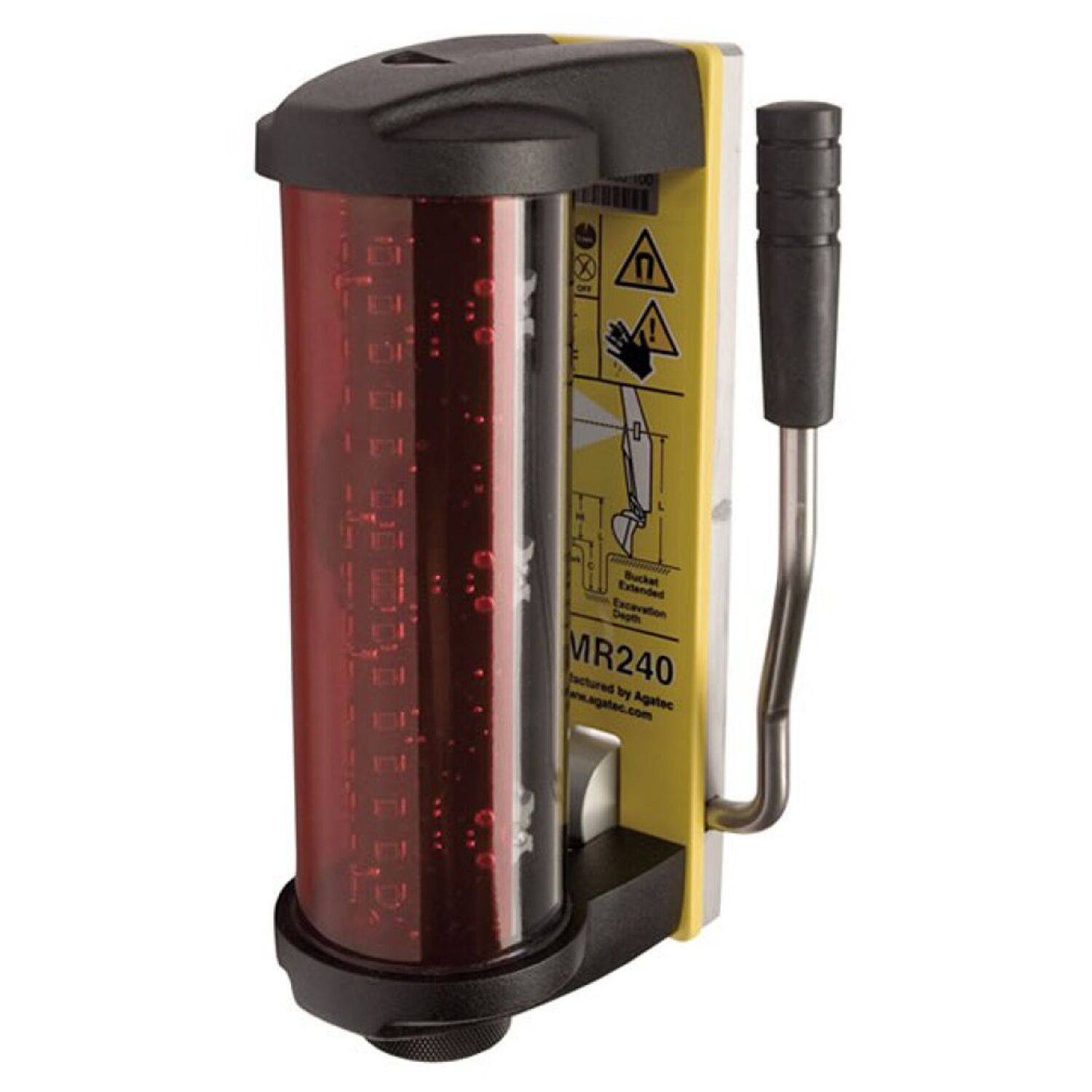

240° Machine Receiver

Ideal for mini diggers

The LMR 240 receiver provides accurate grade information for all visual machine control applications, with 240° reception from any rotating laser.

Supplied with:

  • Leica LMR240 receiver
  • Magnetic mount
  • Batteries
  • Carry case
  • User manual
  • 2 year warranty
Leica LMR240 - at a glance
Leica LMR240 - one person operation

One-person operation saves time and money!

Attaches to excavator arm with extra strong rare earth magnets built into back plate.

Leica LMR240 - No grade checker required

No grade checker required

So there’s no expensive machine downtime while operator checks grade with a rod.

Positioning the Leica LMR240 receiver with release lever

Pull the lever down before placing it on the excavator arm. This creates a gap between the back plate and machine.

Pull the lever down before placing it on the excavator arm. This creates a gap between the back plate and machine.

This gap prevents the strong magnets from attaching to the machine until you have it in position

This gap prevents the strong magnets from attaching to the machine until you have it in position.

Once it is in position, lift the lever to lock receiver

Once it is in position, lift the lever to lock receiver.

Key Features

  • One-person operation
  • 240° detection window picks up laser from wide angle
  • Blinking LEDs point in the direction to move the bucket to reach grade
  • Choice of three settings: 3 channels (indicators) in coarse mode; 3 or 5 channels in fine
  • Magnetic mount allows quick mounting & easy movement from machine to machine
  • Battery life: 130 hours – 3 x AA alkaline
Specifications Popular with
One-person operation General Construction
Automatic shutoff
Rugged, waterproof (IP67)
Range: 250 m varies with laser used
Accuracy: Fine: 6 mm Coarse: 15 mm
Reception angle: 240°
Capture window: 15cm
Battery life approx. 120 -160 hours – 3 xAA batteries
Magnetic mount

Leica MR240 Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Leica Geosystems

Product Specification

Product Specification

Range Range: 250 m (varies with laser used)
Accuracy Fine: 6 mm | Coarse: 15 mm
Reception angle: 240°
Capture window: 15cm
Battery type: 3 x AA
Battery life: 120 – 160 hours
Charge time: 12 hours
Mounting: Magnetic
Protection class: Waterproof (IP67)
Weight: 1.9 kg
Warranty

Warranty

Leica Sales & Warranty Centre

2 Year Manufacturer’s Warranty

Summary of Leica Geosystems Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

LEICA Geosystems AG (LEICA Geosystems), warrants to the original end user (Customer) that this Product will be free from defects in workmanship and materials, under normal use two (2) years shall apply, and (ii) batteries for which ninety (90) days shall apply, unless such warranty period has been extended by LEICA Geosystems, and provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product.

The warranty period begins on the proved purchase date (or if applicable, date of delivery or date of acceptance report). LEICA Geosystems sole obligation under this express warranty shall be, at LEICA Geosystems sole option and expense, to replace or repair the Product or part, or refund the purchase price paid for the Product. LEICA Geosystems warrants any repaired or replaced Product or part for a period of ninety (90) days from shipment, or through the end of the original warranty, whichever is longer. All Products or parts that are replaced become the property of LEICA Geosystems. This express warranty does neither cover consumables, such as reflectors, bulbs and fuses, nor third party products.

Limitation of liability

Leica Geosystems also excludes any liability, whether based in contract or tort (including negligence), for incidental, consequential, indirect, special, or punitive damages of any kind, or costs of procurement of substitute products by customer, or for the loss of revenue or profits, loss of business, loss of information or data, or other information or financial loss arising out of or in consequence with the sale, installation, maintenance, use, performance, failure, or interruption of this product, even if Leica Geosystems or its distributors have been advised of the possibility of such damages, and limits its liability to replacement, repair, or refund of the purchase price paid, at Leica Geosystems option. This limitation of liability for damages will not be affected if any remedy provided herein shall fail of its essential purpose.

Leica Approved Sales, Warranty & Repair Centre

As a main Leica Geosystems agent and warranty centre in the UK we can offer training, specialist product and advice and demonstration and trial of moisture measuring and surveying.

We also offer comprehensive telephone support and training including advice on which product would deliver the best value to you organisation and organizations business requirements.  We have a number of sales agents that are on the road visiting customers up and down the UK and these are available for onsite trial and demonstrations.
