Built in wood calibration scales – 150 Wood species
The Protimeter Timbermaster is an advanced moisture meter specifically designed for the timber industry. It is ideal for a range of quality control applications associated with moisture levels within all wood products.
Supplied with:
Timbermaster BLD5609
Standard Kit:
Timbermaster BLD5605
Plus Kit:

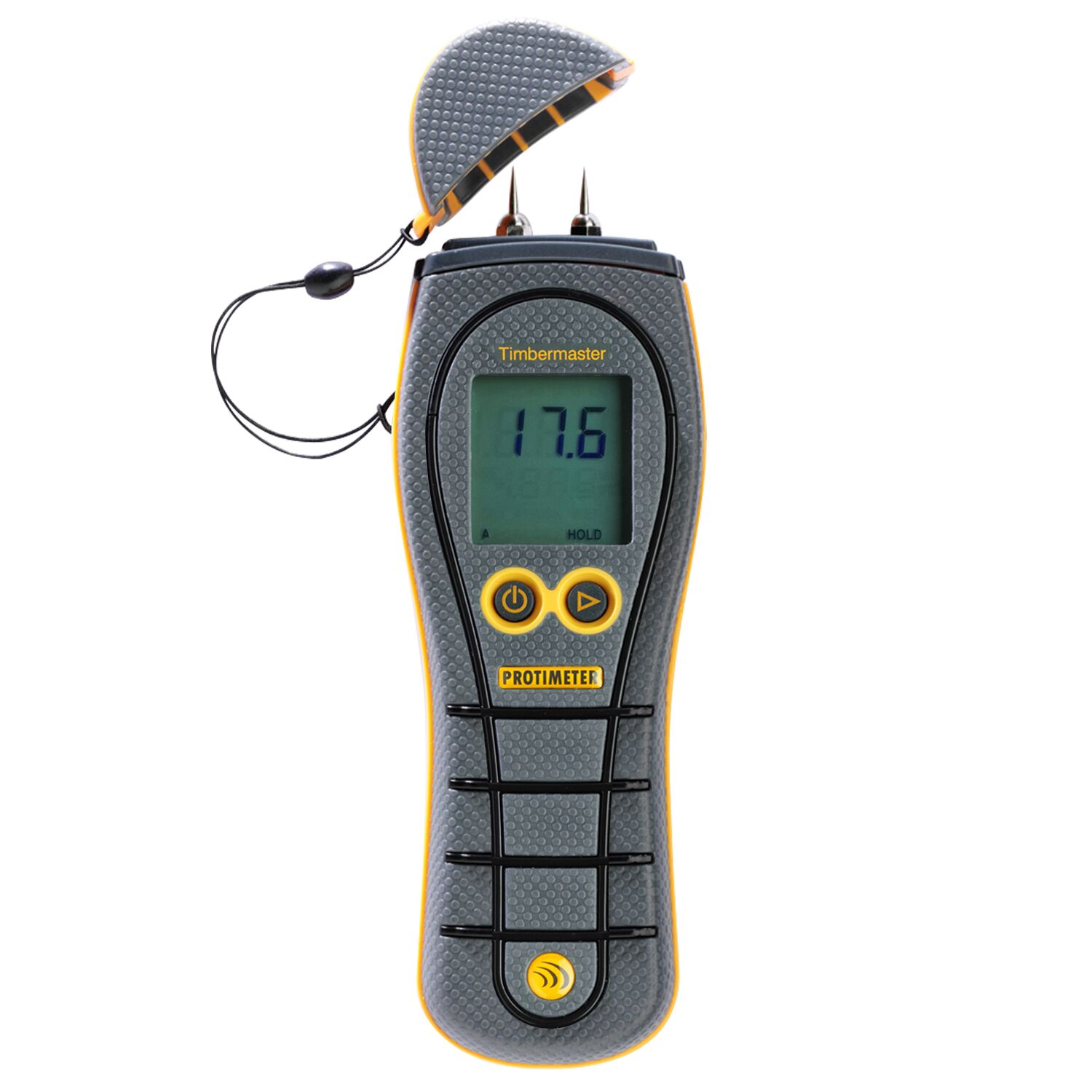

Introducing the Timbermaster
Key Features
- Simple moisture meter
- Durable & rugged design
- Built in wood calibration scales – 150 Wood species
- All readings are displayed on a large LCD display
- May be used with optional hammer electrode for sub-surface measurements
- Automatic temperature correction (requires optional temperature probe)
| Features | Applications |
|---|---|
| Operating temperature range: (% MC in wood) | Home inspection |
| Humidity: 0 to 90% RH, non-condensing | Flooring contractors |
| Moisture measurement: Pin measurement range (% MC in wood) | 7.9 to 99% (readings over 30% are relative) | Termite pest controllers |
| Max needle depth: For WME pins – 0.4” (10mm) | Wood product manufacturers & traders |
| Power: 9v battery | Cleaning & floor restoration professionals |
| Woodworkers |
Simple wood moisture readings to UKTGC and BS standards. If the timber being measured is significantly above or below 20°C (70°F) the Timbermaster should be used in conjunction with the optional temperature probe. When the probe is connected, the instrument will automatically correct the measured moisture value.
A telescopic hammer electrode can be used if users need to measure the sub-surface moisture level in wood.
150 wood species can be tested for moisture content. Moisture measurements are commonly taken using the integral pin electrodes. The appropriate wood calibration scale can be dialed in to ensure the accurate measurements are taken.
Protimeter
Timbermaster
Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
The manufacturer, Amphenol Advanced Sensors only supply Protimeters products through their dealer network.
