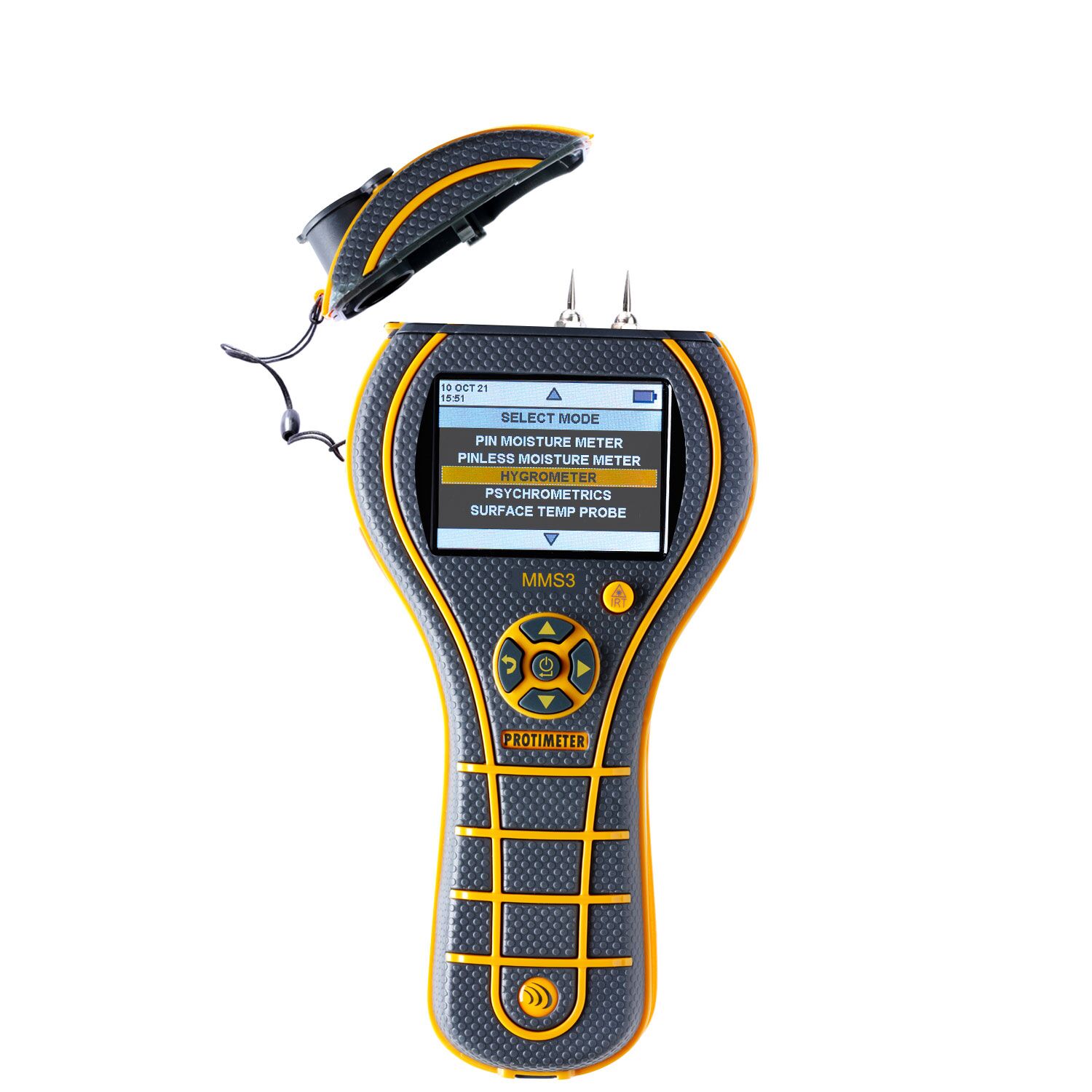

Name: Protimeter MMS3
Brand: Protimeter
SKU: 8622
Availability: InStock

Protimeter MMS3

£689.00 – £1,055.00

Complete moisture measurement and diagnosis system for building environments. Now with Bluetooth for data transfer to the Protimeter App.

Measure (pin mode)
Search mode (non-invasive)
Surface Temperature (IR) (non-contact) utilizing laser
Hygrometry / humidity & temperature measurement mode
Equilibrium humidity measurement in concrete floors
Psychometric calculations & data logging

Choose one of the packages below:

Compare

Complete Moisture Measurement System with Wireless Capability.

FOR USE WITH: Wood, drywall, building materials & concrete

Now with wireless capability! The Protimeter MMS3 represents the latest in moisture measurement technology. Its ergonomic 4-in-1 design allows for fast and accurate full building diagnostics both on and below the surface, from new building construction to refurbishing projects in existing buildings. Also, with built-in hygrometric capabilities and an infrared (IR) laser thermometer, the MMS3 also assesses indoor air quality conditions.

All Protimeter instruments have a two-year warranty.

MMS3 BLD9800

Basic Kit

Protimeter MMS3
QuikStick Short – POL8751
Heavy Duty Moisture Probe – BLD5060
Calcheck Device – BLD5086
Bluetooth with FREE App
Operators Instructions – 9v Battery – Pouch

MMS3 BLD9800-S

Basic Survey Kit

Protimeter MMS3
QuikStick Short – POL8751
Heavy Duty Moisture Probe – BLD5060
Hygrostick – POL4750
Hygrostick Extension Lead – BLD5802
Deep Wall Probes 5″ (127mm) – BLD5018
Calcheck Device – BLD5086
Bluetooth with FREE App
Operators Instructions – 9v Battery – Pouch

Introducing the Protimeter MMS3

Features of the Protimeter MMS3

Deferences between MMS2 & MMS3

Measure Mode

Surface Temperature (IR) checks surface temperature, utilizing laser pointer, calculates proximity to dewpoint.

Built-in Hygrometer

Measures or monitors buildings for adequate ventilation affecting indoor air quality and moisture problems.

Search Mode

Surface Temperature (IR) checks surface temperature, utilizing laser pointer, calculates proximity to dewpoint.

Infrared Thermometer

Surface Temperature (IR) checks surface temperature, utilizing laser pointer, calculates proximity to dewpoint.

Key Benefits

Fast responding hygrometer speeds up building surveys
Replaceable humidity & temperature sensor
No need to plug in multiple accessories
Non-invasive measurement not adversely affected by surface moisture
Highly accurate

Features

Pin moisture measurement with built-in calibration check
Improved non-invasive moisture measurement with sensitivity mode feature and simple field calibration
Non-contact surface temperature measurement with Infrared (IR) laser pointer
Manual and automatic data logging up to 10,000 records
File viewer mode to view logged data
Data reporting and processing through Protimeter PC software
Live data stream over Bluetooth, data log into file or embedded into an image in Protimeter app
Web interface to view the logged data
Easy-to-use interface with colour display and multi-language capability
Firmware upgradable

Applications

When concise and accurate environmental readings need to be reported, the MMS3 gets the job done. The ability to record readings instantly at the push of a button makes this instrument ideal for many applications including:

Fire & flood restoration
Concrete floor moisture measurement
Home inspection
Building survey
Moisture mapping

Four-In-One Moisture Measurement System

Measures moisture in wood and wood floors, drywall, concrete and concrete block, stucco, plaster, masonry and other building materials.

Search mode

Search (non-invasive mode) behind ceramic tile, fine finishes, water stains, tile and vinyl floor coverings, wood, drywall, plaster, masonry, concrete and concrete block.

Non-invasive pinless radio frequency finds moisture up to 3/4 in (19 mm) below surface
Search mode not adversely affected by surface moisture

Measuring mode

Measure (pin mode) diagnoses the extent of moisture intrusion for damage assessment and monitor drying out of building structures.

Use built-in pin or plug in the heavy duty moisture probe for measuring in hard-to-reach areas
Use deep wall pin-type probes to measure moisture in walls, wall cavity insulation, sub and surface structures
Use accessories such as hammer probes to measure at depth

Humidity mode

Hygrometry measures or monitors buildings for adequate ventilation affecting indoor air quality and moisture problems.

Measures relative humidity and temperature, dew point and surface temperature, surface proximity to dew point (condensation) and grains per pound, as well as multiple psychrometric calculations
Allows measurement of equipment such as dehumidifiers
Measures equilibrium relative humidity in concrete floors using the in situ probe method
Use to detect conditions for mold and fungus growth, that can lead to unhealthy living conditions

Surface Temperature

Surface Temperature (IR) checks surface temperature, utilizing laser pointer, calculates proximity to dewpoint.

Protimeter
MMS3
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Protimeter MMS3 Datasheet

Protimeter MMS3 User Manual

MMS3 Protimeter Connect App

Brand

Protimeter

MMS3 Options

MMS3 Basic Kit BLD9800

MMS3 Survey Kit BLD9800-S

MMS3 Basic Kit in Hard Case BLD9800-C

MMS3 Survey kit in Hard Case BLD9800-C-S

MMS3 Restoration Kit in hard case BLD9800-C-R

Product Specification

Moisture measurement range:

Pin (% WME) 8% to 99, readings over 30% are relative Non-invasive (RF) up to 3/4 in (19 mm) deep 60 to 1000 (relative)

Temperature probe range:

-10 – 50°C

Hygrostick data (nominal)

30% to 40% RH (3% RH) at 68F (20°C), 41% to 98% RH (2%) at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) 0.6°F (0.3°C)

Quickstick Data (nominal)

0% to 10% RH, 3% RH at 68°F (20°C), 10% to 90% RH, 2% RH at 68°F (20°C), 90% to 100% RH, 3% RH at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) 0.6°F (0.3°C) Nominal response 30% to 90% and back to 30% RH in 45 seconds @ 68°F (20°C)

Data Storage

Up to 8000 results with date & time stamp from all instrument functions

Warranty

2 Year Manufacturer’s Warranty

Summary of Protimeter Manufacturers Warranty

The manufacturer, Amphenol Advanced Sensors only supply Protimeters products through their dealer network.

Protimeter Authorised Registered Dealer
Trade Survey are an authorised registered dealer & provide customer service for it’s products. We can offer technical support, advice, Warranty replacements & repairs.

Protimeter 2 Year Warranty

All Protimeters are covered by an extended 2 Year Warranty for the main instrument, while accessories are covered by a 1 Year Warranty. This protects the important & most expensive parts of the instrument.
