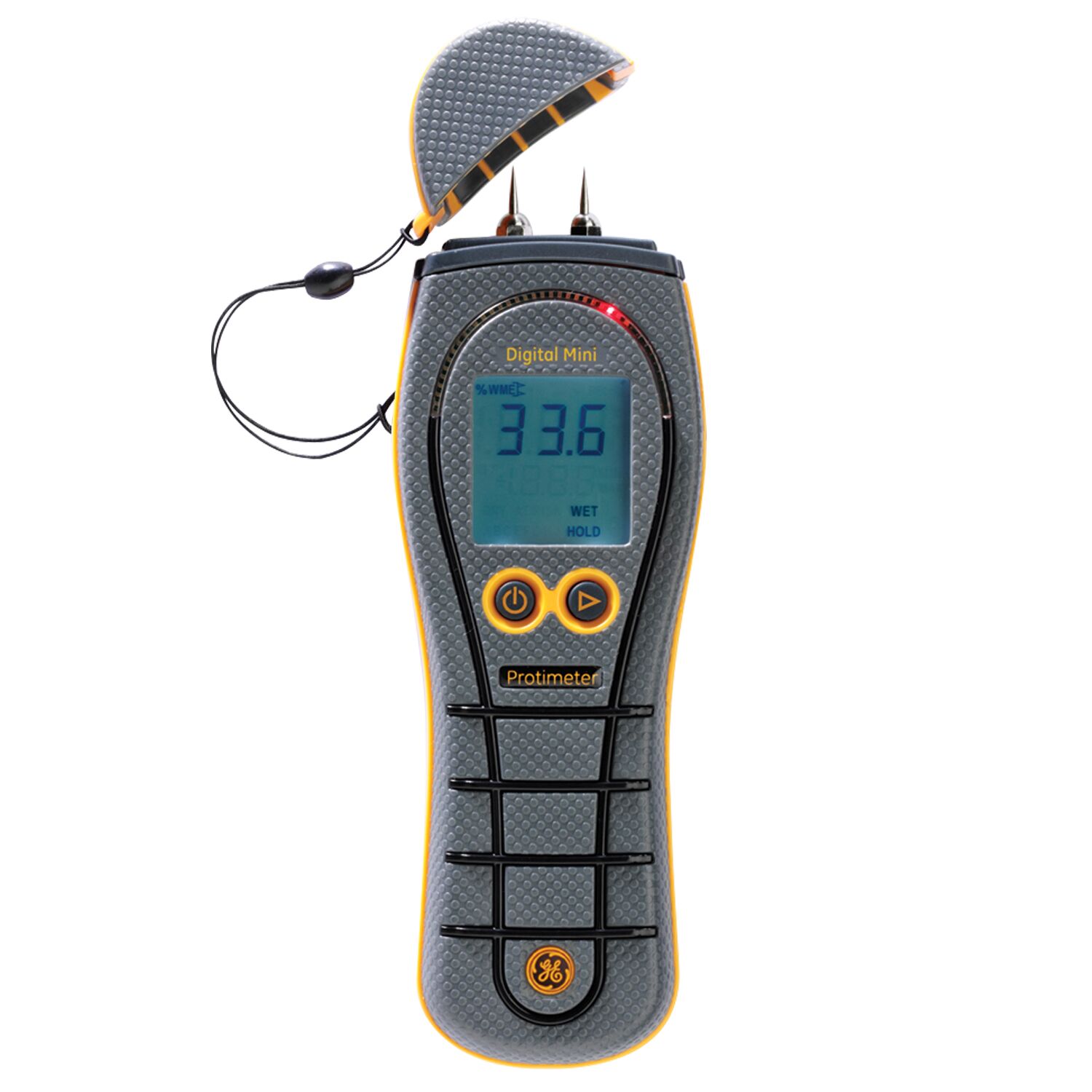

Protimeter Digital Mini - Digital Pin-Type Moisture Meter

Watch video

Click to enlarge

Protimeter Digital Mini - measure moisture with probe

Protimeter Digital Mini 2 BLD5702

Name: Protimeter Digital Mini 2 BLD5702
Brand: Protimeter
SKU: BLD5702
Availability: OutOfStock

£202.00 Price incl. VAT: £242.40

Digital pin type moisture meter. The Protimeter Digital Mini can help building professionals assess building moisture levels during new build and refurbishing activities.

Digital Mini BLD5702 - replaced by the Protimeter Digital Mini BLD5775

Out of stock

Add to Wishlist

Add to compare

Add to wishlist

Compare

SKU: BLD5702 Categories: Humidity & Moisture, Pin-Type Tags: Moisture Meter, Protimeter, Protimeter Digital Mini

Description

Digital pin type moisture meter

The Protimeter Digital Mini can help building professionals – such as contractors, surveyors, home builders and architects – assess building moisture levels during new build and refurbishing activities. It helps you easily identify the extent of the moisture penetration, diagnose the cause of the problem and monitor changes in moisture level. Plus, the ability to add optional attachments and a patent pending reference mode enables you to compare your reading with a baseline measurement.

Supplied with:

Digital Mini
2-Pin Moisture Probe
Calcheck Device
Pouch

Belt loop
Operators Instructions
9v Battery
2 Year Warranty

Protimeter Digital Mini Video Tutorial

Digital Mini Applications

The preferred industry choice for surveying and investigating moisture in buildings.

Excessive moisture in buildings can lead to decay and deterioration of components and decorative finishes.

This moisture meter uses a Pin Type Measurement Function & shows results on a large digital display & useful colour changing LED’s.

Measure Mode Pin-Type

Measure mode readings are precise and specific to the contact area of the electrodes that are used.

Pin mode is used to measure the moisture level at the surface. Sub-surface measurements can be obtained by using the Digital Mini with optional probes, such as the Hammer Electrode for wood, Deep Wall Probes for solid walls and the EIFS probe for exterior insulation and finishing systems.

Reference Mode

Protimeter’s patent pending Reference Mode is particularly useful when there is a need to compare measurements taken at numerous points in a building to a selected reference or baseline value.

Identify the extent of the moisture penetration
Diagnose the cause of the problem
Monitor change in the moisture level

The instrument also has an auxiliary port allowing you to easily connect the following Optional Moisture Probes.

Protimeter Digital Mini - optional Moisture Probe

Hammer Electrodes

Used to obtain sub-surface measurements in wood. The Heavy Duty version is designed for frequent use in both hard and soft woods whereas the Light Duty version is designed for occasional use in soft woods.
Deep Wall Probes
Used to obtain measurements at depth in solid and composite walls. Clearance holes need to be drilled in the material to the required depth into which the Deep Wall Probes are inserted. The moisture gradient of the material can be identified by increasing the depths of the holes incrementally and then taking readings.
EIFS Probes
Ideal for measuring the moisture level within and through exterior insulation and finishing systems types of wall cladding.

Key Features

Simple to use, one button operation
Durable & rugged design
Simple moisture readings
Color changing LEDs to show moisture condition

Features	Applications
Range: 7.9% to 99% WME (pin measurement)	Building survey
Display 2: digital LCD backlit	Fire & flood restoration
Display 1: 60 LED s green (dry), yellow (at risk) and red (wet)	Concrete surface measurement
Depth of moisture: pin up to 12.7mm	Indoor air quality
Power: 9v battery	Environmental health
Auto shut off: 1-6 mins	Wooden sub-floor & hardwood flooring
Hold feature

Protimeter
Digital Mini
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Protimeter Digital Mini Brochure

Protimeter Digital Mini Manual

Additional information

Brand	Protimeter

Product Specification

Measurement Range (%WME)	7.9% to 99% numerical label
Display digital	Large digital LCD backlit
Display LEDs	Dry (Green LEDs) – 7.9% to 16.9% At risk (Yellow LEDs) – 17% to 19.9% Wet (Red LEDs) – 20% to 99.9%
Power	9V battery (included)
Weight	225g
Dimensions	190 x 70 x 49 (mm)

Warranty

2 Year Manufacturer’s Warranty

Summary of Protimeter Manufacturers Warranty

The manufacturer, Amphenol Advanced Sensors only supply Protimeters products through their dealer network.

Protimeter Authorised Registered Dealer
Trade Survey are an authorised registered dealer & provide customer service for it’s products. We can offer technical support, advice, Warranty replacements & repairs.

Protimeter 2 Year Warranty

All Protimeters are covered by an extended 2 Year Warranty for the main instrument, while accessories are covered by a 1 Year Warranty. This protects the important & most expensive parts of the instrument.
