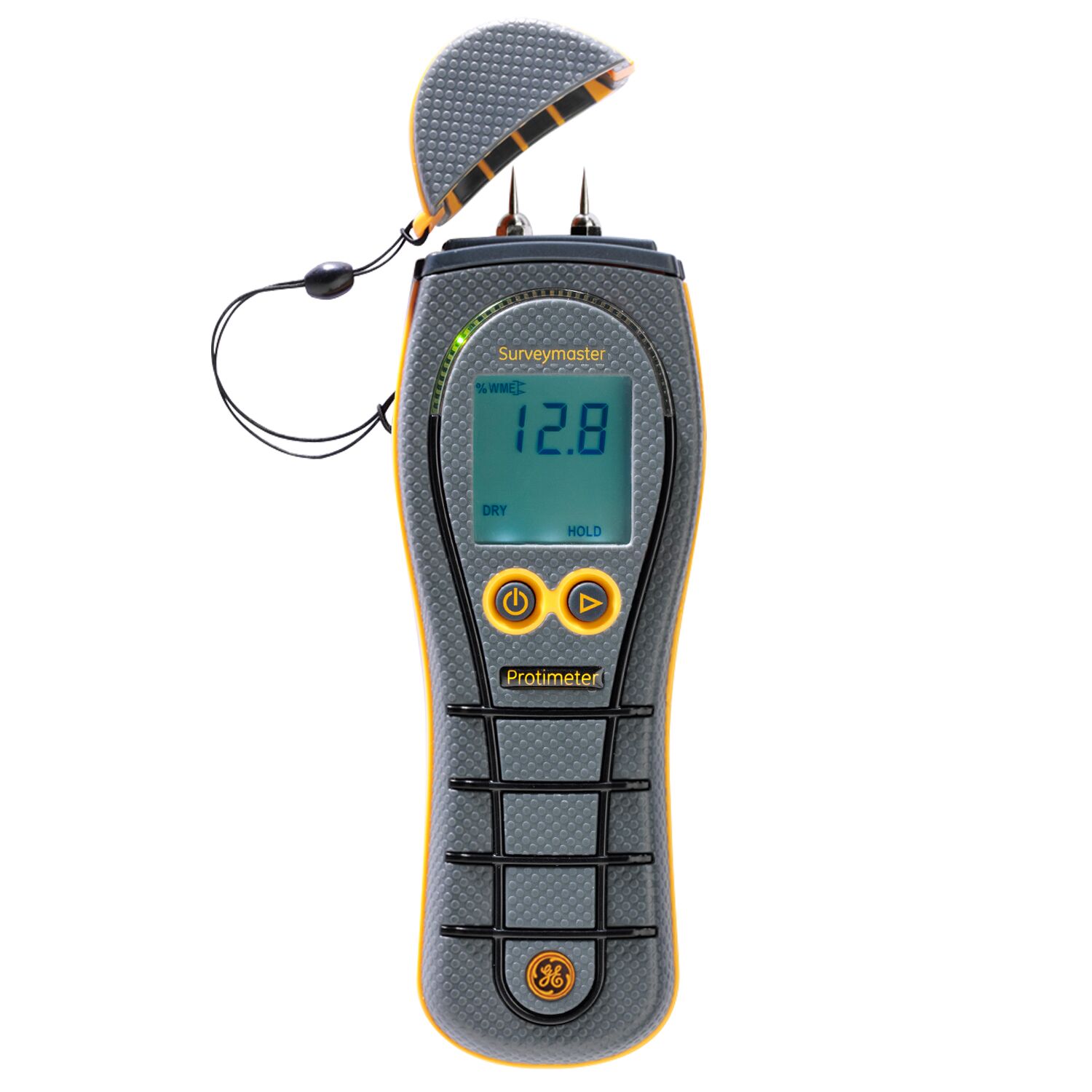

Protimeter Surveymaster 2 BLD5365

Dual mode mositure meter which combines pin and non-invasive technology in one meter, for surface and sub-surface measurement.

Surveymaster 2 BLD5365 - replaced by the Protimeter Surveymaster BLD5375
Compare
Description

Dual-Function Moisture Meter

The Protimeter Surveymaster moisture meter represents the latest design and technology in the moisture meter arena. GE pioneered the dual function instrument to combine pin and non-invasive technology into one meter. This release will be the 3rd generation of the globally successful Protimeter Surveymaster. In the early 90s we recognized that both measurement techniques in one easy-to-use meter allows professional to make more reliable measurements as well as quicker decisions with regard to moisture problems in buildings.

Supplied with:

  • Protimeter Surveymaster 2
  • Pouch
  • Belt Loop
  • Operators Instructions
  • 9V Battery
Protimeter Aquant - features at a glance

Protimeter Surveymaster Video Tutorial

Protimeter Surveymaster - 2 operational modes
2 Operational modes

This reliable moisture meter has two modes of operation – search and measure. These functions can help the user to distinguish sub-surface from surface moisture, essential information when trying to establish the extent and cause of a dampness problem.

Protimeter Surveymaster - measure mode
Measure mode

This mode is used to measure the moisture level at the surface and at incremental depth, when used with the auxiliary probes. Measure mode readings are precise and specific to the immediate area of contact of the electrodes.

Protimeter Surveymaster - search mode
Search mode

The search mode is used to assess the moisture level beneath the surface of solid walls and floors independently of surface conditions. The nominal depth of the measurement is 3/4 inch (19 mm); this depends on the density and other characteristics of the material being measured.

Protimeter Surveymaster - reference mode
Reference mode (pat pending)

In both Pin and Search mode, GE’s patent pending Reference Mode can be used. Reference mode can be useful when trying to establish what materials are above or below a point of reference or dry standard.

Key Features

  • Durable & rugged design
  • Measure mode – Direct two-pin measure %WME
  • Search mode – Non-invasive measuring – no pin marks left
  • Detects moisture directly in materials
  • Detects moisture below wall / floor coverings (tile, wood & vinyl)
  • Dual Display LCD & LED
  • Color changing LEDs to show moisture condition
  • Reset reading for sensitivity adjustment
  • Not adversely affected by surface moisture such as condensation
  • User adjustable features: Auto shut off 1-6 mins, hold feature, backlight on/off, audible on/off, dry, at risk & wet indicator on/off.
Features Applications
Range (non invasive): 70 to 999 relative (non-invasive) Dry (green) —70-169 At risk (yellow) —170 – 199 Wet (red) —200-999 Building survey
Range (pin-measurement): 7.9% to 99% WME (pin measurement) Dry (green)-7-16.9 At Risk (yellow) 17-19.9 Wet (red)) — 20-99.9 Home inspection
Depth of moisture: Non-invasive up to 3/4 in (19 mm), Pin up to 1/2 in (12.7 mm)
Display: 1 Digital LCD + 60 LED s green (dry), yellow (at risk) and red (wet)
Power: 9v battery

Search Mode – Non-Invasive

The search mode is used to assess the moisture level beneath the surface of solid walls and floors independently of surface conditions. The nominal depth of the measurement is 3/4 inch (19 mm); this depends on the density and other characteristics of the material being measured. When held against the surface, as shown below, the instrument transmits a signal into the material. The relative moisture level is shown on the digital display and its moisture condition is shown on the accompanying scale of colour-coded lights. This measurement presentation helps the user to:

  • Look for moisture behind wall and floor coverings, such as tile and vinyl.
  • Assess, in relative terms, if the material is in a dry, borderline or damp condition.
  • Map the extent of the problem numerically.
  • Non-invasive pinless radio frequency finds moisture at depth where moisture is not always directly visible – up to 3/4 in (25.4 mm) below the surface.
  • This mode of measurement is not adversely affected by the presence of surface moisture.

Applications: Shower pans, behind ceramic tile, fine finishes, water stains, tile and vinyl floor coverings, joists, around toilets, drywall, below grade floors and walls, plaster, masonry, concrete and concrete block. Note: Metal additives in concrete can create false positive readings.

Measure Mode – Pin-Type

This mode is used to measure the moisture level at the surface and at incremental depth, when used with the auxiliary probes. Measure mode readings are precise and specific to the immediate area of contact of the electrodes. The actual moisture content of wood is shown on the digital display with the corresponding moisture condition shown on the accompanying scale of colour-coded lights. Wood Moisture Equivalent (WME) values are shown for other non-conductive, porous building materials.

  • Pin-type probes measure moisture in wood and other building materials (use provided wood species calibration chart for more precise readings)
  • Deep wall probes establish the presence of moisture in wall cavity insulation, sub and surface structures

Options

  • Exterior Insulation and Finished Systems (EIFS) probe finds moisture in exterior insulation finishing systems
  • Hammer electrode for wood floor applications

Applications: Wood and wood floors, subfloors, drywall, concrete and concrete block, stucco, plaster, masonry and EIFS.

Reference mode (Patent Pending)

In both Pin and Search mode, GE’s patent pending Reference Mode can be used. Reference mode can be useful when trying to establish what materials are above or below a point of reference or dry standard.

Measure the dry standard or baseline material until the meter’s reading is stable then press for seconds. This will store the reading until the mode changes of the meter turns off. Now all readings taken after will be displayed as normal, but below you will see a second reading that shows you if the material is measured above or below the original reading.

Protimeter
Suveymaster 2
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Protimeter

Product Specification

Product Specification

Measurement Range:
– Pin measurement
– Non-invasive
7.9% to 99% WME
70 – 999 REL (relative)
Depth of Measurement Non-invasive up to 19 mm
Pin up to 12.7 mm
Display 1 Digital LCD display
Display 2 60 LEDs –
green (dry) yellow (at risk) red (wet)
Power 9V battery (included)
Weight 225g
Dimensions (mm) 190mm x 70mm x 49mm
Warranty

Warranty

Leica Sales & Warranty Centre

2 Year Manufacturer’s Warranty

Summary of Protimeter Manufacturers Warranty

The manufacturer, Amphenol Advanced Sensors only supply Protimeters products through their dealer network.

Protimeter Authorised Registered Dealer
Trade Survey are an authorised registered dealer & provide customer service for it’s products. We can offer technical support, advice, Warranty replacements & repairs.

Protimeter 2 Year Warranty

All Protimeters are covered by an extended 2 Year Warranty for the main instrument, while accessories are covered by a 1 Year Warranty. This protects the important & most expensive parts of the instrument.
