Leica DD220 SMART Locator

£944.00 Price incl. VAT: £1,132.80

  • Transmitter modes: 131kHz / 33kHz / 8kHz / Auto
  • Depth range: Line 0.1m to 5m / Sonde 0.1m to 7m
  • SMART Technology: GPS, Bluetooth®, 8GB internal memory
  • Depth Detection: 7m (23ft)
  • IP66 Rated

Supplied with:

  • DD220 SMART Locator
  • 3 year warranty
Compare
Description

Leica DD SMART utility locator solution

The Leica DD SMART utility locators and DX Shield software open the door to a connected world, anywhere, anytime. Leica DD SMART utility locators detect underground assets deeper, faster and more accurately. Understand site activity and utility locator use in greater detail with DX Shield software. The DD230/220 SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free connection to mobile devices.

Supplied with:

  • DD220 SMART Locator
  • 3 year warranty

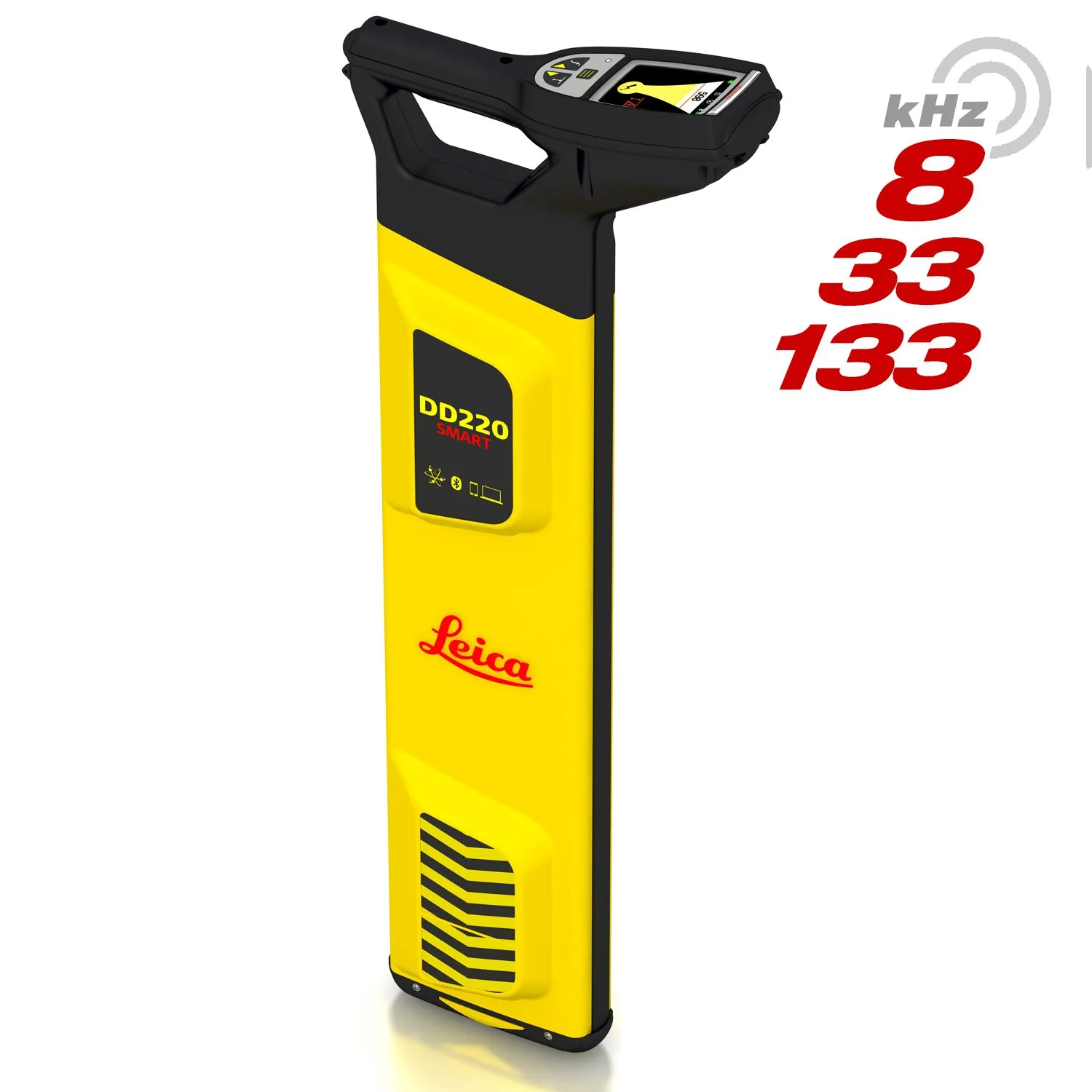

Leica DD220 SMART Locator - with 3 signal modes
Leica DD220 SMART Locator

Greater confidence with SMART locating

Connect and download data stored in the DD SMART utility locators’ internal memory, including GPS positioning and transfer it back to the DX Shield software for analysis. USB connectivity provides a convenient connection to DX Office Shield for product configuration, maintenance and data analysis.

Leica DD SMART utility locator solution

The Leica DD SMART utility locators and DX Shield software open the door to a connected world, anywhere, anytime. Leica DD SMART utility locators detect underground assets deeper, faster and more accurately. Understand site activity and utility locator use in greater detail with DX Shield software. The DD230/220 SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free connection to mobile devices.

Leica DD SMART Video Tutorials

Leica DD SMART Utility Locators Solution
Leica DD SMART – Intro Video
Leica DD SMART Utility Locators Solution – Health Check
Leica DD SMART Utility Locators Solution – Transmitter connection
Leica DD SMART Utility Locators Solution – Sonde
Leica DD SMART Utility Locators Solution – Transmitter Induction

Key Features

  • Easy & intuitive to use
  • On board video support
  • SMART locate process saves time
  • GPS positioning
  • Bluetooth DATA export
  • Automatic data synchronisation
  • SMART Technology: GPS, Bluetooth®, 8GB internal memory
  • Power, Radio, Auto modes
  • Depth Detection: 7m (23ft)
  • IP66 Rated
  • Transmitter modes: 131kHz, 33kHz, 8kHz or Auto
  • Bag included
Features Popular with
Easily locate & trace utilities Excavation contractors
Work safely with usage alerts & system diagnostics Utility installation & repair contractors
No technical experience necessary General contractors
Depth range: up to 7m Builders
Dust and water protection to IP66 Gas & electricity companies
Highly visible digital LCD display Cable TV companies
Robust light weight design Pipe laying contractors

What is a Cable Locator and why do I need one?

HSE - Health & Safety Executive

HSG47: Avoiding danger from underground services

By law, breaking ground requires the use of a cable locating device to obtain accurate information about the location of buried utilities in order to protect employees and equipment during any excavation project.

Cable strikes result in unnecessary costs, reduce profit potential and introduce project delays.

This publication updates the guidance contained in the previous edition of HSG47 Avoiding danger from underground services. It outlines the dangers which can arise from work near underground services and gives advice on how to reduce the risk.

Additional information
Brand

Leica Geosystems

Product Specification

Product Specification



MODE

DD220 SMART

DD230 SMART

Power

50 / 60 Hz
mains electrical and harmonics
50 / 60 Hz
mains electrical and harmonics

Radio

15kHz to 60kHz

15kHz to 60kHz

Auto

Power, Radio, 33kHz Power, Radio, 33kHz

Radio

15kHz to 60kHz

15kHz to 60kHz

Transmitter Modes

131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz
640 Hz

Depth Range

Line 0.1m to 5m
Line 4 inches to 16.4 feet
Sonde 0.1m to 7m
Sonde 4 inches to 23 feet

Line 0.1m to 7m
4 inches to 23 feet
Sonde 0.1 to 10m
Sonde 4 inches to 32.8 feet

Depth Accuracy*

5% 5%

Bluetooth

Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)

Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)

GPS**

Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A,
QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s
typical, Hot 1 s typical
Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A,
QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s
typical, Hot 1 s typical

Memory Capacity

8 GB internal memory

8 GB internal memory

Environmental Standard

IP66 IP66

Operating Temperature

-20 °C to +50 °C
-4 °F to +122°F

-20 °C to +50 °C
-4 °F to +122°F

Battery

7.4V Rechargeable Li – Ion 7.4V Rechargeable Li – Ion

Battery operating time ***

15 h

15 h

Dimensions (HxWxD)

765×290 x93mm
30.12 x11.42×3.66 inches
765×290 x93mm
30.12 x11.42×3.66 inches

Weight with batteries

2.7Kg
5.95 lbs

2.7Kg
5.95 lbs

*Depth to an undistorted signal
** (1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information.
(2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
*** Constant use at 20°C/68°F

Warranty

Warranty

Leica Sales & Warranty Centre

3 Year Manufacturer’s Warranty

Summary of Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

LEICA Geosystems AG (LEICA Geosystems), warrants to the original end user (Customer) that this Product will be free from defects in workmanship and materials, under normal use two (2) years shall apply, and (ii) batteries for which ninety (90) days shall apply, unless such warranty period has been extended by LEICA Geosystems, and provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product.

The warranty period begins on the proved purchase date (or if applicable, date of delivery or date of acceptance report). LEICA Geosystems sole obligation under this express warranty shall be, at LEICA Geosystems sole option and expense, to replace or repair the Product or part, or refund the purchase price paid for the Product. LEICA Geosystems warrants any repaired or replaced Product or part for a period of ninety (90) days from shipment, or through the end of the original warranty, whichever is longer. All Products or parts that are replaced become the property of LEICA Geosystems. This express warranty does neither cover consumables, such as reflectors, bulbs and fuses, nor third party products.
For full details contact Leica Geosystems.

Limitation of liability

Leica Geosystems also excludes any liability, whether based in contract or tort (including negligence), for incidental, consequential, indirect, special, or punitive damages of any kind, or costs of procurement of substitute products by customer, or for the loss of revenue or profits, loss of business, loss of information or data, or other information or financial loss arising out of or in consequence with the sale, installation, maintenance, use, performance, failure, or interruption of this product, even if Leica Geosystems or its distributors have been advised of the possibility of such damages, and limits its liability to replacement, repair, or refund of the purchase price paid, at Leica Geosystems option. This limitation of liability for damages will not be affected if any remedy provided herein shall fail of its essential purpose.

HOW TO REGISTER YOUR PRODUCT

To claim your 3 year warranty you can register on the Leica Geosystems website.
