Thermo-Hygrometer with Psychrometric Calculation
The new Protimeter HygroMaster 2 is the latest in hand-held hygrometry, featuring a simple to use interface and multi-function capability.
Note BLD7751 with short QuickStick is recommended for general measurement and BLD7750 with Hygrostick is recommended for high RH harsh environment application such as ERH concrete floor measurement.
HygroMaster 2 BLD7750
With HygroStick

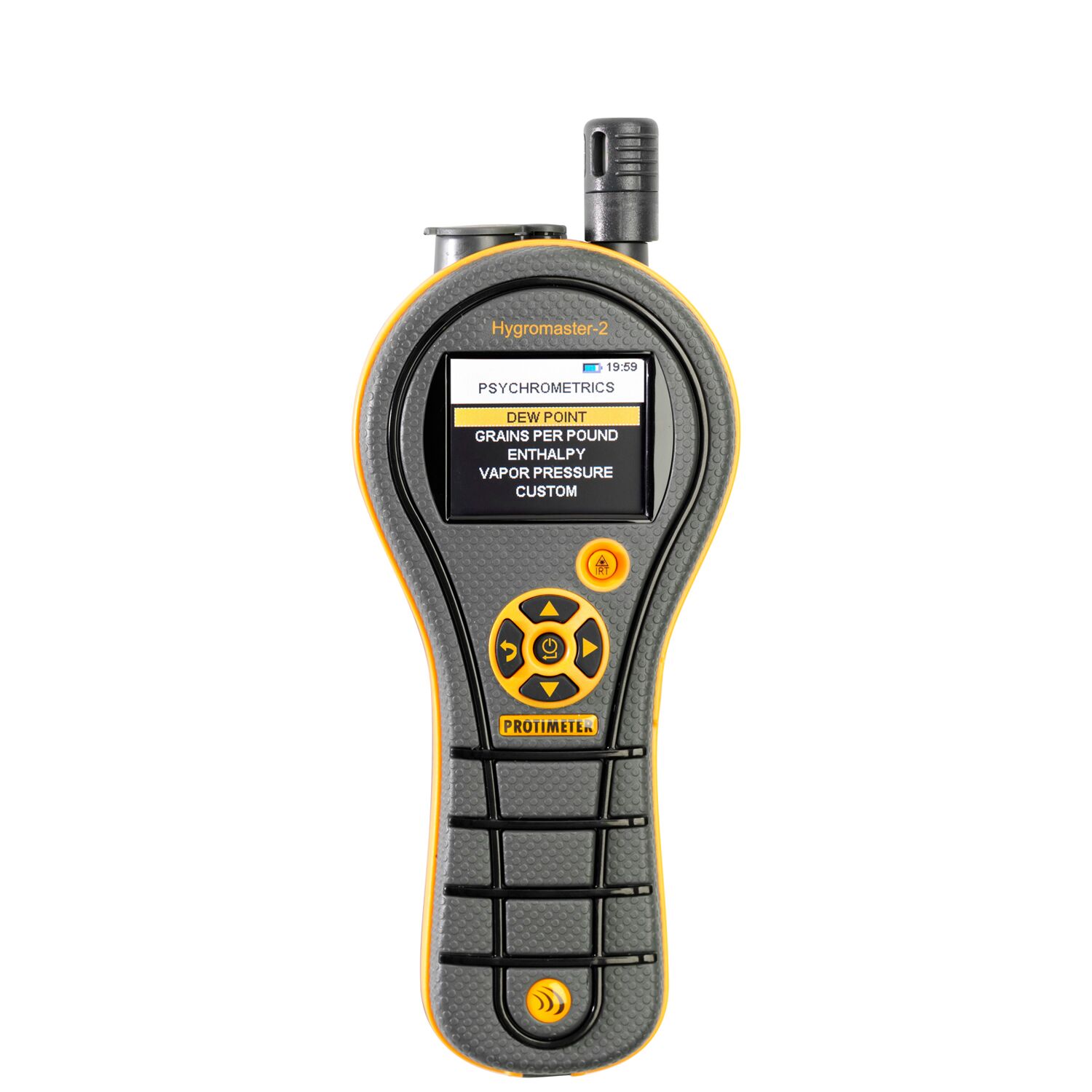

HygroMaster 2 BLD7751
With QuickStick
Introducing the HygroMaster 2
Key Features
- Infra-red non-contact surface temperature
- Psychometric Calculations
- Data logging
- Simple to use interface with color display
- Fast temperature & humidity response
- Replaceable humidity & temperature sensor
- Highly accurate
| Features | Applications | |
|---|---|---|
| Infrared Surface Temperature Range | IR Based – With 12:1 (D:S) Ratio Range -4°F to 176°F (-20°C to 80°C) Accuracy ±3.6°F (±2°C) |
HVAC |
| Building survey/home inspection | ||
| Dampness diagnosis in buildings | ||
| Hygrostick Data (Nominal) | 30% to 40% RH (±3% RH) at 68ºF (20ºC). 41% to 98% RH (±2%) at 68ºF (20ºC). Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C) |
Flooring installation |
| Specialty coating applications | ||
| Flood restoration | ||
| Quikstick & Quikstick ST Data (Nominal) | 0% to 10% RH, ±3% RH at 68°F (20°C), 10% to 90% RH, ±2% RH at 68°F (20°C), 90% to 100% RH, ±3% RH at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C) Nominal response 30% to 90% and back to 30% RH in 45 seconds @ 68°F (20°C) |
Concrete moisture |
| Data Storage | Up to 8,000 results with date & time stamp Store 6100 results with automatic logging. |
|
| Display: Colour LCD | ||
| Power: 9v battery | ||
Short QuikStick (POL8751)
Recommended for general measurement & applications such as flood damage restoration. Operates between 0-100% RH.
HygroStick (BLD4750)
Recommended for high %RH harsh environment applications such as ERH measurement in concrete operates between 30 & 98% RH.
Protimeter
HygroMaster 2
Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
The manufacturer, Amphenol Advanced Sensors only supply Protimeters products through their dealer network.
