Leica UTILI-DRAIN

£150.00 Price incl. VAT: £180.00

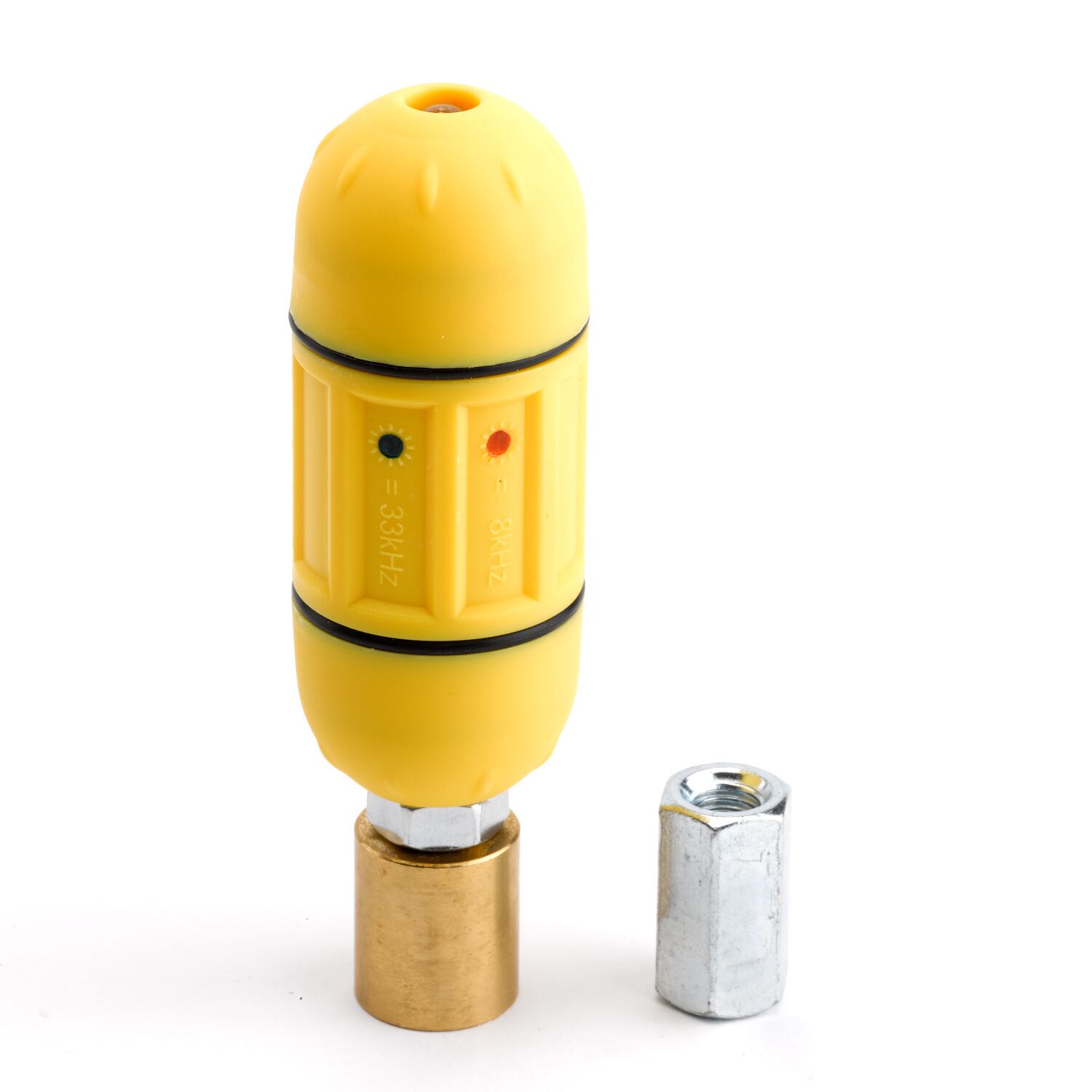

Leica UTILIDRAIN Sonde. Use with the Leica UTILIFINDER+ to trace or map the drains and sewers. Obtain depth readings and find blockages.

What’s included:

  • Leica UTILI-DRAIN – (Sonde only)

Take a look at the Midi Sonde 8/33

Out of stock

Compare
Description

Sonde

Use the Leica UTILIDRAIN to map pipes or sewers and find blockages. Use the Leica UTILIFINDER+ to trace the drain and obtain a depth reading.

UtiliFinder Plus - feature at a glance

The Leica UTILIFINDER+ System

Leica UtiliFinder+

1. Leica UtiliFinder+

The Leica UTILIFINDER+ is a unique location system used to identify buried utilities. Select Auto mode to detect loaded power cables.

2 Leica UtiliGen

2. Leica UtiliGen

Use the Leica UTILIGEN to identify utilities & obtain a depth reading with the Leica UTILIFINDER+.

3 Leica UtiliDrain

3. Leica UtiliDrain

Use the Leica UTILIDRAIN to map pipes or sewers and find blockages. Use the Leica UTILIFINDER+ to trace the drain and obtain a depth reading.

Leica UTILIFINDER+ - Overview

Utili-Finder - step 1

Step 1 - Plug-in

Plug UTILIGEN into wall and turn on power. Green light confirms that power cables can be traced. Blue light indicates that some other services can be traced.

Step 2 - Activate

Step 2 - Activate

Squeeze trigger to turn on UTILITRACE. LCD activates.

Step 3 - Search

Step 3 - Search

Hold UTILITRACE vertically, sweep the ground in a zig zag pattern, covering the whole area. When the visual and audible signals are at the highest you are directly over a buried service.

Step 4 - Mark

Step 4 - Mark

When the bar graph is at its highest point you are directly over the service and should mark the ground. Joining your marks indicates the path of the service.

Key functions: i button

Key functions: i button

Information. The UTILIFINDER+ web address will be displayed. The website provides all online support and training information.

Key functions: F button

Key functions: F button

Functional test. With the UTILIGEN turned off, hold the F button for 2 seconds. The UTILITRACE will automatically carry out a functional test.

Depth reading

Key functions: i button

Step 1: Position UTILIFINDER+ over the service
Step 2: Ensure UTILIFINDER+ is set to 33 kHz mode
Step 3: Press & release i key for depth reading

Leica UTILIFINDER+ Video Tutorial

How to trace power cables & underground utilities

Key Features

  • Easy & intuitive to use
  • Rugged casing
  • Plug-in signal generator
  • Depth reading: 0.3 to 3m
  • IP54 Rated
  • Transmitter modes: 33kHz or Auto
  • Bag included
Features Popular with
Easily locate & trace utilities Excavation contractors
Work safely with usage alerts & system diagnostics Utility installation & repair contractors
No technical experience necessary General contractors
Robust light weight design Builders
Save time & money Gas & electricity companies
Highly visible digital LCD display Cable TV companies
Robust light weight design Pipe laying contractors

What is a UTILIFINDER+ and why do I need one?

HSE - Health & Safety Executive

HSG47: Avoiding danger from underground services

By law, breaking ground requires the use of a cable locating device to obtain accurate information about the location of buried utilities in order to protect employees and equipment during any excavation project.

Cable strikes result in unnecessary costs, reduce profit potential and introduce project delays.

The revolutionary new UTILIFINDER+ system provides a unique solution especially designed for work directly surrounding existing buildings, allowing quick and easy location of buried electrical cables. Other conductive services including metal gas and water pipes; and Telecom cables can also be located when they are safety bonded to the electrical earth.

Leica UTILIFINDER+

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Leica Detection

UTILIFINDER+ Options

UTILIFINDER+ System

,

UTILIFINDER+ UTILIDRAIN

,

UTILIFINDER+ Utili-Bag

,

UTILIFINDER+

,

UTILIDRAIN

,

UTILIGEN (240V)

,

Utili-Bag

Product Specification

Product Specification

UTILIFINDER+ (CABLE LOCATOR)
Proximity alarm Service less than 30cm deep
Depth reading Reading 0.3 to 3m Typical depth accuracy 10% of depth
Environmental Protection IP54 shower proof
Batteries 6 x AA alkaline (IEC LR6 supplied)
Battery life 40 hours intermittent use (at 20°C)
Weight 2.7kg including batteries
UTILIGEN (SIGNAL TRANSMITTER)
Frequency 33kHz
Power Supply UK 13AMP Plug Mains 230Vrms
Dimensions (mm) W x H x D 61 x 47 x 103
Environmental Conditions Indoor Use Only
Temperature Range 0 – 40 C
Rating Input Voltage 230V
Power Consumption 2VA
Weight 255g
UTILIDRAIN (SONDE)
Frequency 8kHz
Batteries 1 x AA alkaline (IEC LR6 supplied)
Environmental Conditions IP68
Weight 820 g including batteries
Dimensions Width: 120 mm
