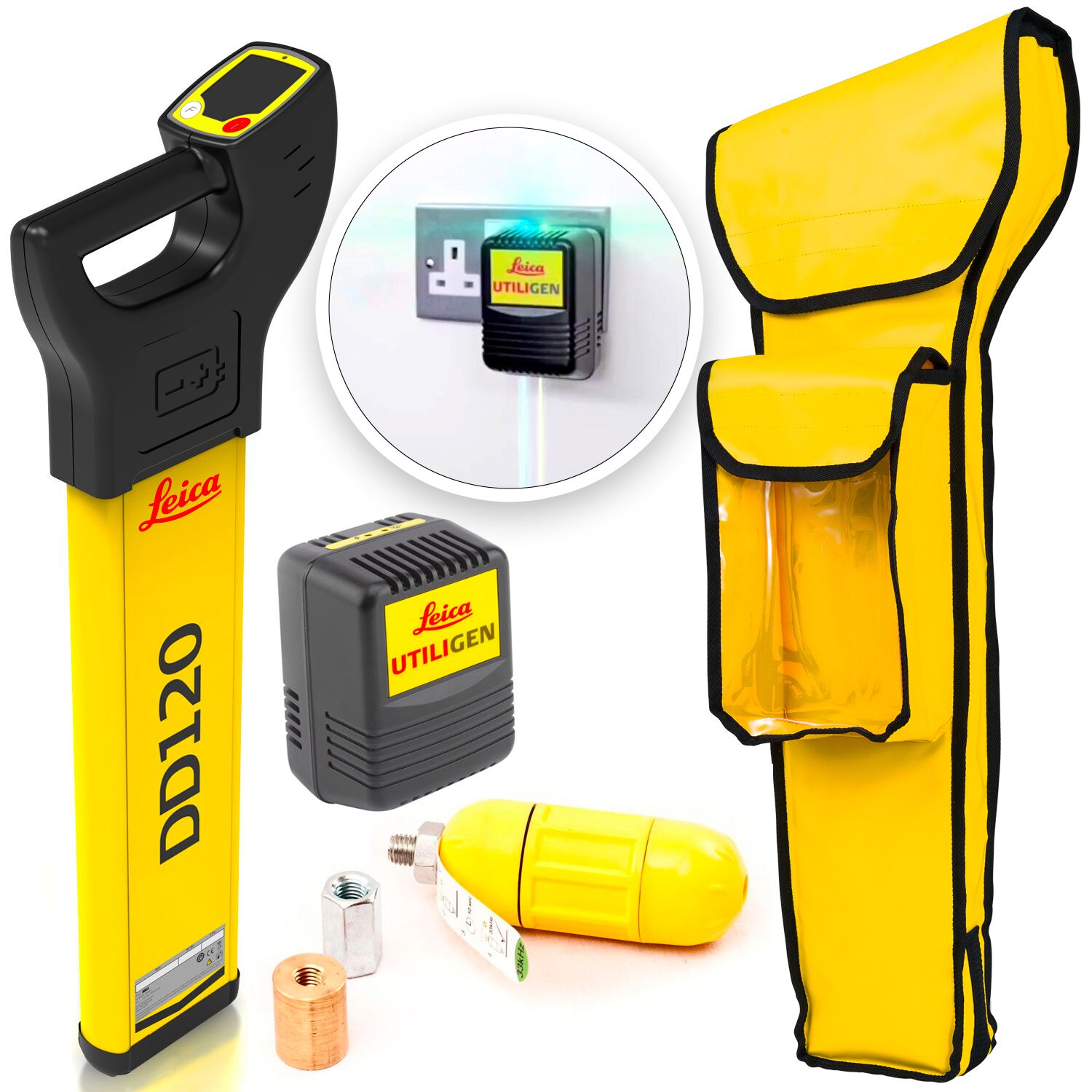

Cable Locator, Utility 240v Smart Plug Genny, Drain Tracer (Sonde)

£1,310.00 Price incl. VAT: £1,572.00

Supplied with:

  • DD120 Cable Locator 8/33KHz – 872938
  • Leica Utili-Gen 240v Smart Plug 33kHz – 813268
  • Midi Sonde 8/33 kHz 38mm diameter / 5m Depth – 850289
  • Leica DD120 Holster Bag – 872942
  • 3 year warranty
Compare
Description

The Leica DD120 Locator Kit is supplied with:

Leica DD120 Locator

DD120 Locator

  • Transmitter modes: 33kHz / 8kHz / Auto
  • Depth range: Line 0.3m to 3m / Sonde 0.3m to 3m
  • Depth Detection: 3m (23ft)
  • IP66 Rated

Product code: 872938

LIST PRICE: £690.00

240v Smart Plug Genny 33khz

Leica UTILI-GEN (240v)

  • Unique Signal Generator for use with the UTILIFINDER+. Emits signals when plugged into a 13 amp power socket.

Product code: 813268

LIST PRICE: £165.00

Drain Tracing Kit Dual-Frequency Sonde 8 33 kHz

MIDI Sonde 8/33

  • 38mm diameter
  • Depth range 5m
  • 8 or 33kHz

Product code: 850289

LIST PRICE: £260.00

Leica DD120 - Carry Bag

Leica DD120 Holster Bag

Carry bag for DD120 & DD130 Locators.
Locator can be used within the bag for protection on site.

Product code: 872942

LIST PRICE: £65.00

Leica DD120 Locator - application

Unmatched ease of use

With Automatic Pinpointing there is no need for you to manually adjust the sensitivity of your Digicat cable locator ensuring you’re using the optimum sensitivity for the environment you are detecting the underground utilities in. Reducing the likelihood of human error and enabling easier and more efficient cable and pipe locating. Ultimately saving you time and money.

Leica DD SMART Video Tutorials

Leica DD SMART Utility Locators Solution
Leica DD SMART – Intro Video
Leica DD SMART Utility Locators Solution – Health Check
Leica DD SMART Utility Locators Solution – Transmitter connection
Leica DD SMART Utility Locators Solution – Sonde
Leica DD SMART Utility Locators Solution – Transmitter Induction

Leica DD Locator

View and download this product’s brochure, datasheet, and manual in a PDF format

What is a Cable Locator and why do I need one?

HSE - Health & Safety Executive

HSG47: Avoiding danger from underground services

By law, breaking ground requires the use of a cable locating device to obtain accurate information about the location of buried utilities in order to protect employees and equipment during any excavation project.

Cable strikes result in unnecessary costs, reduces profit potential and introduces project delays.

This publication updates the guidance contained in the previous edition of HSG47 Avoiding danger from underground services. It outlines the dangers which can arise from work near underground services and gives advice on how to reduce the risk.

Additional information
Brand

Leica Detection

Options

DD120 Locator

,

DD120 DA220 Kit

Product Specification

Product Specification

DD120 (CABLE LOCATOR)
Power 50 / 60 Hz
Radio 15kHz to 60kHz
Auto Power, Radio, 33kHz
Transmitter Modes 32.768 (33) kHz
8.192 (8) kHz
Depth Range 40 hours intermittent use (at 20°C)Line 0.3m to 3m
Line 1ft to 10ft
Sonde 0.3m to 3m
Line 1ft to 10ft
Depth Accuracy* 10%
Environmental Standard IP66
Operating Temperature -20 °C to +50 °C
-4 °F to +122°F
Battery 6 x LR6 (AA) Alkaline
Battery operating time *** 15 h
Dimensions (HxWxD) 760 x 250 x 85 mm
30 x 10 x 3.4 inches
Weight with batteries 2.7Kg
5.95 lbs

*Depth to an undistorted signal
*** Constant use at 20°C/68°F

UTILIGEN (SIGNAL TRANSMITTER)
Frequency 33kHz
Power Supply UK 13AMP Plug Mains 230Vrms
Dimensions (mm) W x H x D 61 x 47 x 103
Environmental Conditions Indoor Use Only
Temperature Range 0 – 40 C
Rating Input Voltage 230V
Power Consumption 2VA
Weight 255g
UTILIDRAIN (SONDE)
Frequency 8kHz
Batteries 1 x AA alkaline (IEC LR6 supplied)
Environmental Conditions IP68
Weight 820 g including batteries
Dimensions Width: 120 mm
