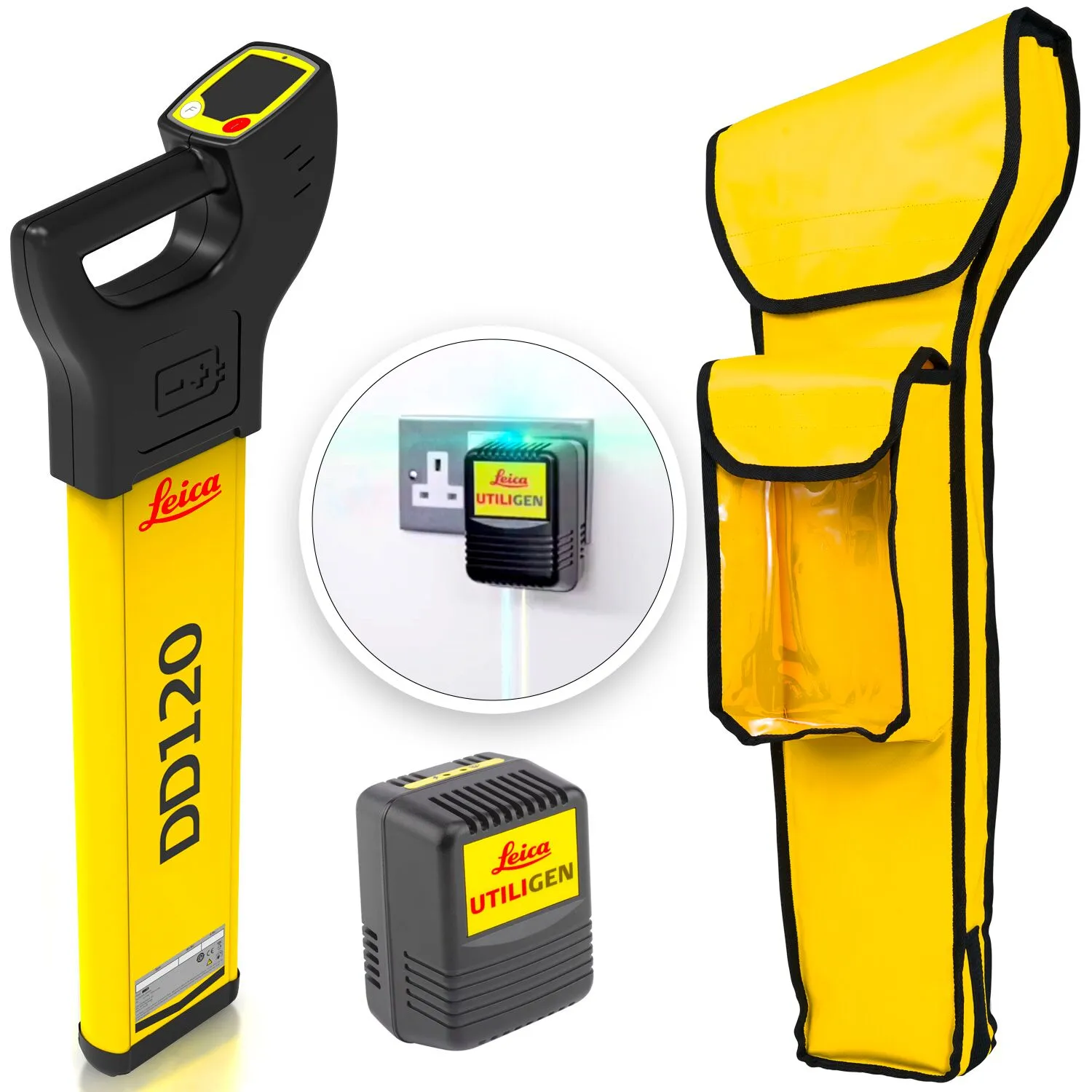

Leica DD120 Locator
- Transmitter modes: 33kHz / 8kHz / Auto
- Depth range: Line 0.3m to 3m / Sonde 0.3m to 3m
- Depth Detection: 3m (23ft)
- IP66 Rated
Product code: 872938
LIST PRICE: £690.00
£1,015.00 Price incl. VAT: £1,218.00
Supplied with:
Product code: 872938
LIST PRICE: £690.00
Carry bag for DD120 & DD130 Locators.
Locator can be used within the bag for protection on site.
Product code: 872942
LIST PRICE: £65.00
With Automatic Pinpointing there is no need for you to manually adjust the sensitivity of your Digicat cable locator ensuring you’re using the optimum sensitivity for the environment you are detecting the underground utilities in. Reducing the likelihood of human error and enabling easier and more efficient cable and pipe locating. Ultimately saving you time and money.
Features | Popular with |
---|---|
Easily locate & trace utilities | Excavation contractors |
Work safely with usage alerts & system diagnostics | Utility installation & repair contractors |
No technical experience necessary | General contractors |
Depth range: up to 3m | Builders |
Dust and water protection to IP66 | Gas & electricity companies |
Highly visible digital LCD display | Cable TV companies |
Robust light weight design | Pipe laying contractors |
View and download this product’s brochure, datasheet, and manual in a PDF format
By law, breaking ground requires the use of a cable locating device to obtain accurate information about the location of buried utilities in order to protect employees and equipment during any excavation project.
Cable strikes result in unnecessary costs, reduces profit potential and introduces project delays.
This publication updates the guidance contained in the previous edition of HSG47 Avoiding danger from underground services. It outlines the dangers which can arise from work near underground services and gives advice on how to reduce the risk.
Brand |
Leica Detection |
---|---|
Options |
DD120 Locator ,DD120 DA220 Kit |
DD120 (CABLE LOCATOR) | |
---|---|
Power | 50 / 60 Hz |
Radio | 15kHz to 60kHz |
Auto | Power, Radio, 33kHz |
Transmitter Modes | 32.768 (33) kHz 8.192 (8) kHz |
Depth Range | 40 hours intermittent use (at 20°C)Line 0.3m to 3m Line 1ft to 10ft Sonde 0.3m to 3m Line 1ft to 10ft |
Depth Accuracy* | 10% |
Environmental Standard | IP66 |
Operating Temperature | -20 °C to +50 °C -4 °F to +122°F |
Battery | 6 x LR6 (AA) Alkaline |
Battery operating time *** | 15 h |
Dimensions (HxWxD) | 760 x 250 x 85 mm 30 x 10 x 3.4 inches |
Weight with batteries | 2.7Kg 5.95 lbs |
*Depth to an undistorted signal
*** Constant use at 20°C/68°F
UTILIGEN (SIGNAL TRANSMITTER) | |
---|---|
Frequency | 33kHz |
Power Supply | UK 13AMP Plug Mains 230Vrms |
Dimensions (mm) W x H x D | 61 x 47 x 103 |
Environmental Conditions | Indoor Use Only |
Temperature Range | 0 – 40 C |
Rating Input Voltage | 230V |
Power Consumption | 2VA |
Weight | 255g |
Summary of Manufacturers Warranty
LEICA Geosystems AG (LEICA Geosystems), warrants to the original end user (Customer) that this Product will be free from defects in workmanship and materials, under normal use two (2) years shall apply, and (ii) batteries for which ninety (90) days shall apply, unless such warranty period has been extended by LEICA Geosystems, and provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product.
The warranty period begins on the proved purchase date (or if applicable, date of delivery or date of acceptance report). LEICA Geosystems sole obligation under this express warranty shall be, at LEICA Geosystems sole option and expense, to replace or repair the Product or part, or refund the purchase price paid for the Product. LEICA Geosystems warrants any repaired or replaced Product or part for a period of ninety (90) days from shipment, or through the end of the original warranty, whichever is longer. All Products or parts that are replaced become the property of LEICA Geosystems. This express warranty does neither cover consumables, such as reflectors, bulbs and fuses, nor third party products.
For full details contact Leica Geosystems.
Leica Geosystems also excludes any liability, whether based in contract or tort (including negligence), for incidental, consequential, indirect, special, or punitive damages of any kind, or costs of procurement of substitute products by customer, or for the loss of revenue or profits, loss of business, loss of information or data, or other information or financial loss arising out of or in consequence with the sale, installation, maintenance, use, performance, failure, or interruption of this product, even if Leica Geosystems or its distributors have been advised of the possibility of such damages, and limits its liability to replacement, repair, or refund of the purchase price paid, at Leica Geosystems option. This limitation of liability for damages will not be affected if any remedy provided herein shall fail of its essential purpose.
To claim your 3 year warranty you can register on the Leica Geosystems website.
