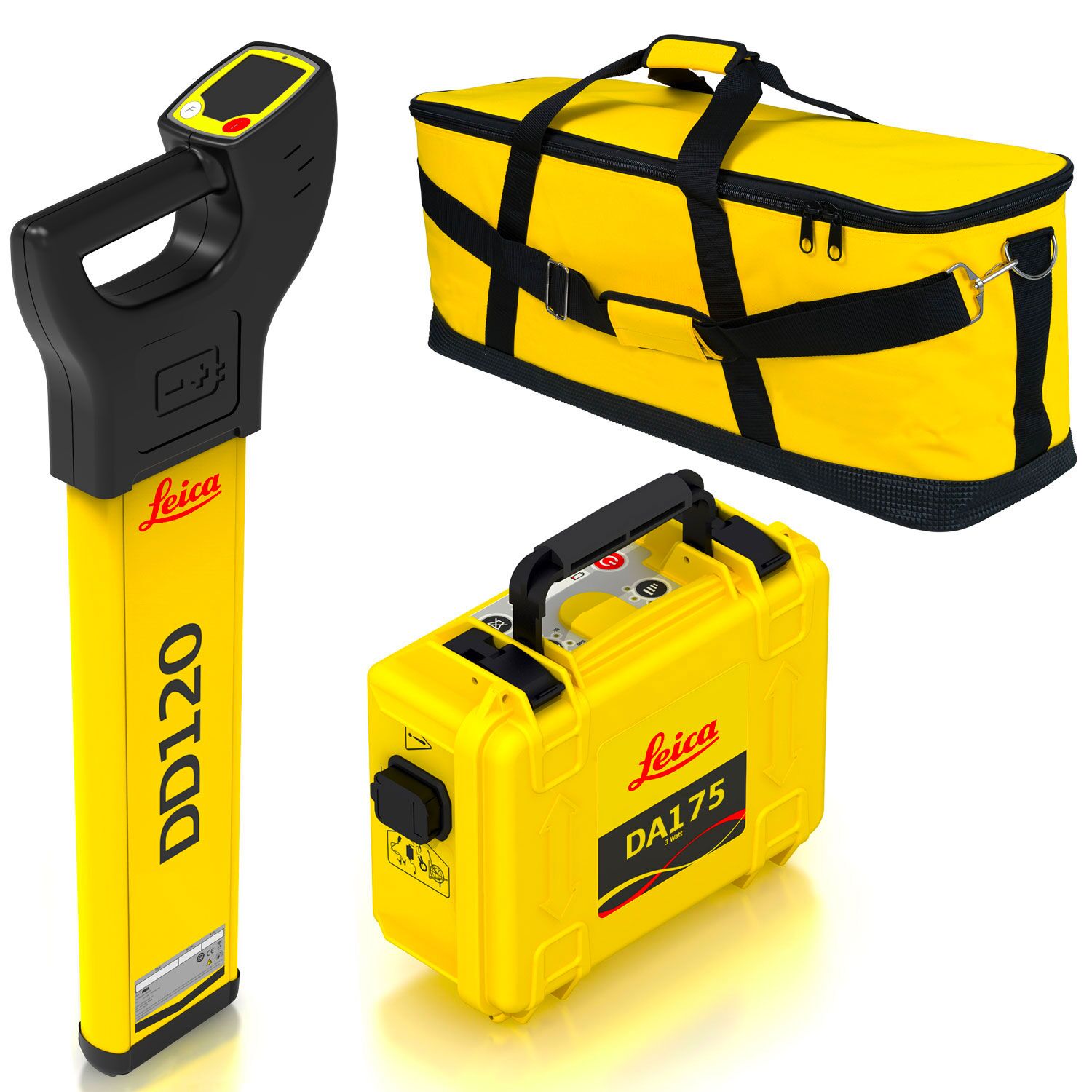

The Leica DD120 Locator Kit is supplied with:
Leica DD120 Locator
- Transmitter modes: 33kHz / 8kHz / Auto
- Depth range: Line 0.3m to 3m / Sonde 0.3m to 3m
- Depth Detection: 3m (23ft)
- IP66 Rated
DA175 Signal Transmitter
- For use with DD120 & DD130 Locator
- Up to 1 Watt max. when connected to a buried service with an impedance of 300 Ω
- IP67 rated – cover closed | IP65 rated – cover open
- Transmitter modes: 33kHz / 8kHz / 512 Hz / 640 Hz
- Battery 4 x D alkaline (IEC LR20), supplied
- Battery operating time 30 h
System Carry Bag
System carry bag for locators, signal transmitters and accessories.
Leica CABLE DETECTION Video Tutorials
1. Essential step before you begin your search
2. Using a generator to locate pipes and cables not emitting a signal
3. Doing a sweep search to locate buried services
4. Using a Sonde
5 Using a EziROD Trace Rod
5 Using an EziROD Trace Rod with earth stake
7a. Using a clamp and transmitter
7b. Using a Property Connection Set
8. How to do a Parallel Sweep
Key Features
- Easy & intuitive to use
- On board video support
- Power, Radio, Auto modes
- Depth Detection: 3m (10ft)
- IP66 Rated
- Transmitter modes: 33kHz, 8kHz or Auto
- Bag included
Features | Popular with |
---|---|
Easily locate & trace utilities | Excavation contractors |
Work safely with usage alerts & system diagnostics | Utility installation & repair contractors |
No technical experience necessary | General contractors |
Depth range: up to 3m | Builders |
Dust and water protection to IP66 | Gas & electricity companies |
Highly visible digital LCD display | Cable TV companies |
Robust light weight design | Pipe laying contractors |
Leica DD Locator
View and download this product’s brochure, datasheet, and manual in a PDF format
What is a Cable Locator and why do I need one?
Cable strikes result in unnecessary costs, reduces profit potential and introduces project delays.
This publication updates the guidance contained in the previous edition of HSG47 Avoiding danger from underground services. It outlines the dangers which can arise from work near underground services and gives advice on how to reduce the risk.
