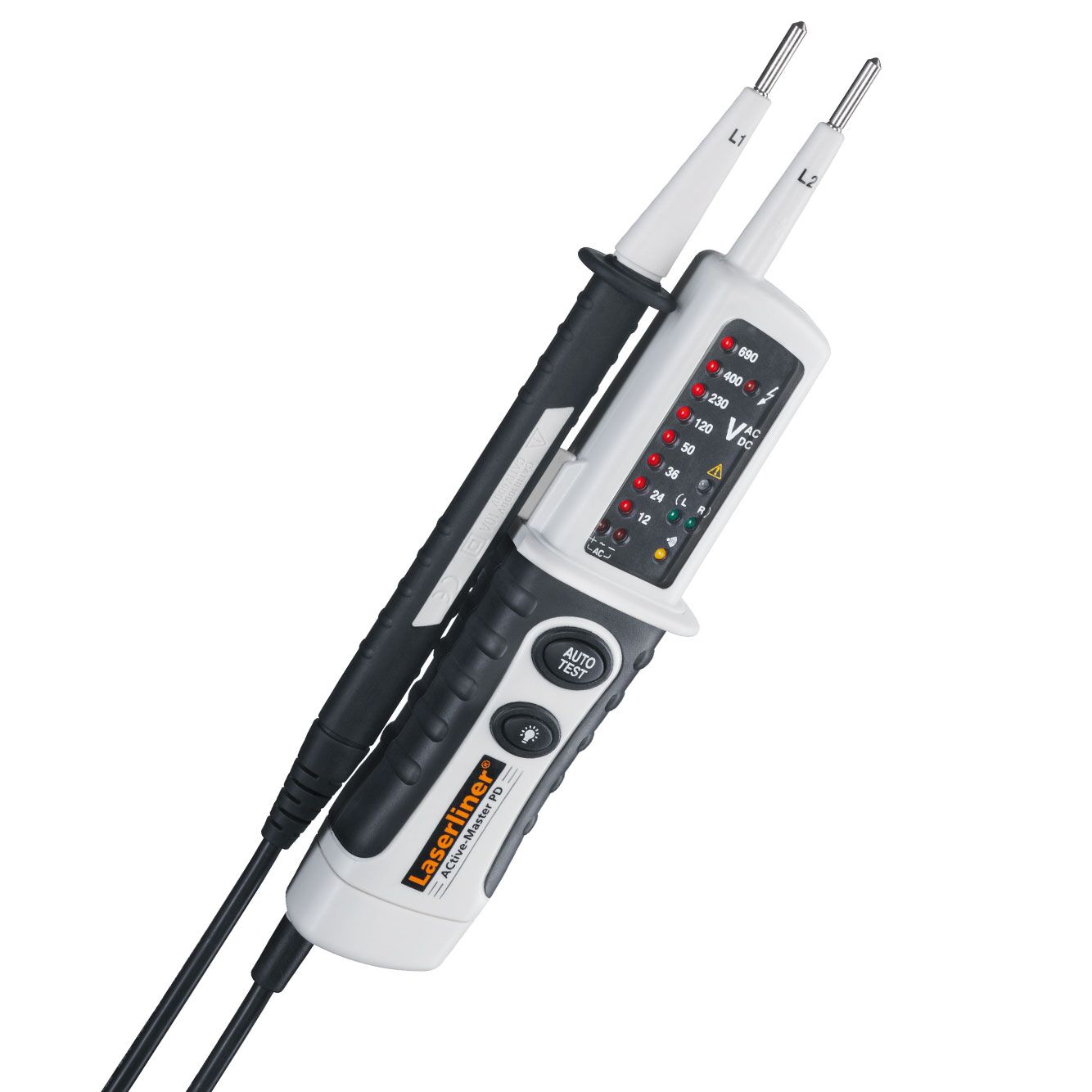

Name: Laserliner AC-tiveMaster HD
SKU: 083.021A
Price: 62.99 GBP
Availability: InStock

Laserliner AC-tiveMaster HD

£62.99 Price incl. VAT: £75.59

SKU: 083.021A

For testing voltage and continuity.

Voltage range: 12, 24, 36, 50, 120, 230, 400, 690 V/AC
Auto AC and DC voltage test
Single-phase and rotary field test
Continuity tester acoustic signal
Safety self-test (AC warning)

Supplied with:

Batteries
4 Year Warranty

Compare

Description
Product Specification
Warranty
About brand
Shipping & Delivery

Description

Practical, fast, and easy to use for testing voltage and continuity

Reliable and fast voltage tester with the most commonly used nominal voltages
Automatic AC voltage and DC voltage test
Automatic range and function changeover for direct testing and measurement
Single-phase and rotary field test with phase sequence display
Single-pole phase testing
Automatic continuity tester with acoustic signal
CAT III – 1000 V – can be used for measurements throughout building installations
Safety self-test (AC warning) as from 50 V, operates in emergency mode without battery
Super-bright LED lighting for integrated test point illumination
Rugged, practical enclosure with lockable test prod spacing (for standard EU connector)

Supplied with:

AC-tiveMaster HD
Batteries

4 Year Warranty

Laserliner AC-tiveMaster HD - voltage & continuity tester

Auto-test function

Automatic AC voltage and DC voltage test.

ActiveMaster Digital - Common Nominal Voltages

Reliable & fast voltage tester

With the most commonly used nominal voltages.

Super-bright LED lighting

For integrated test point illumination.

ActiveMaster Digital - Automatic AC Voltage

Automatic AC voltage and DC voltage test

Plus automatic range and function changeover for direct testing and measurement.

Key Features

Automatic continuity tester
Automatic range & function changeover
Automatic AC voltage & DC voltage test
CAT III – 1000 V

Overview		Applications
Voltage ranges:	12, 24, 36, 50, 120, 230, 400, 690 V AC/DC	Electricians, HVAC
Voltage detection:	Automatic	DIY
Frequency range:	50/60HZ
Overvoltage category:	CAT III – 1000 V / CAT IV – 600 V Pollution degree 2
Protection class:	IP64

AC-tiveMaster HD
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner AC-tiveMaster HD – Datasheet

Laserliner AC-tiveMaster HD – Manual

Product Specification

	AC-TIVEMASTER HD – TECHNICAL DATA
VOLTAGE RANGE:	12, 24, 36, 50, 120, 230, 400, 690 V AC/DC
VOLTAGE DETECTION:	Automatic
PEAK CURRENT (AC/DC):	1s < 0.2 A / Is (5 s) < 3.5 mA
FREQUENCY RANGE:	50/60Hz
SINGLE POLE PHASE TEST:	Voltage range 100…690 V AC (50/60 Hz)
CONTINUITY TEST:	Resistance range < 300 Ω Test current 5 μA Overvoltage protection 690 V AC/DC
ROTARY FIELD DIRECTION INDICATOR:	Voltage range (LEDs) 100…400 V Frequency range 50/60 Hz
OVERVOLTAGE CATEGORY:	CAT III – 1000 V / CAT IV – 600 V Pollution degree 2
PROTECTION CLASS:	IP64
POWER SUPPLY:	2 x 1.5 Type AAA, LR03, alkaline
OPERATING TEMPERATURE:	-10 °C – 55 °C
WEIGHT:	220g
