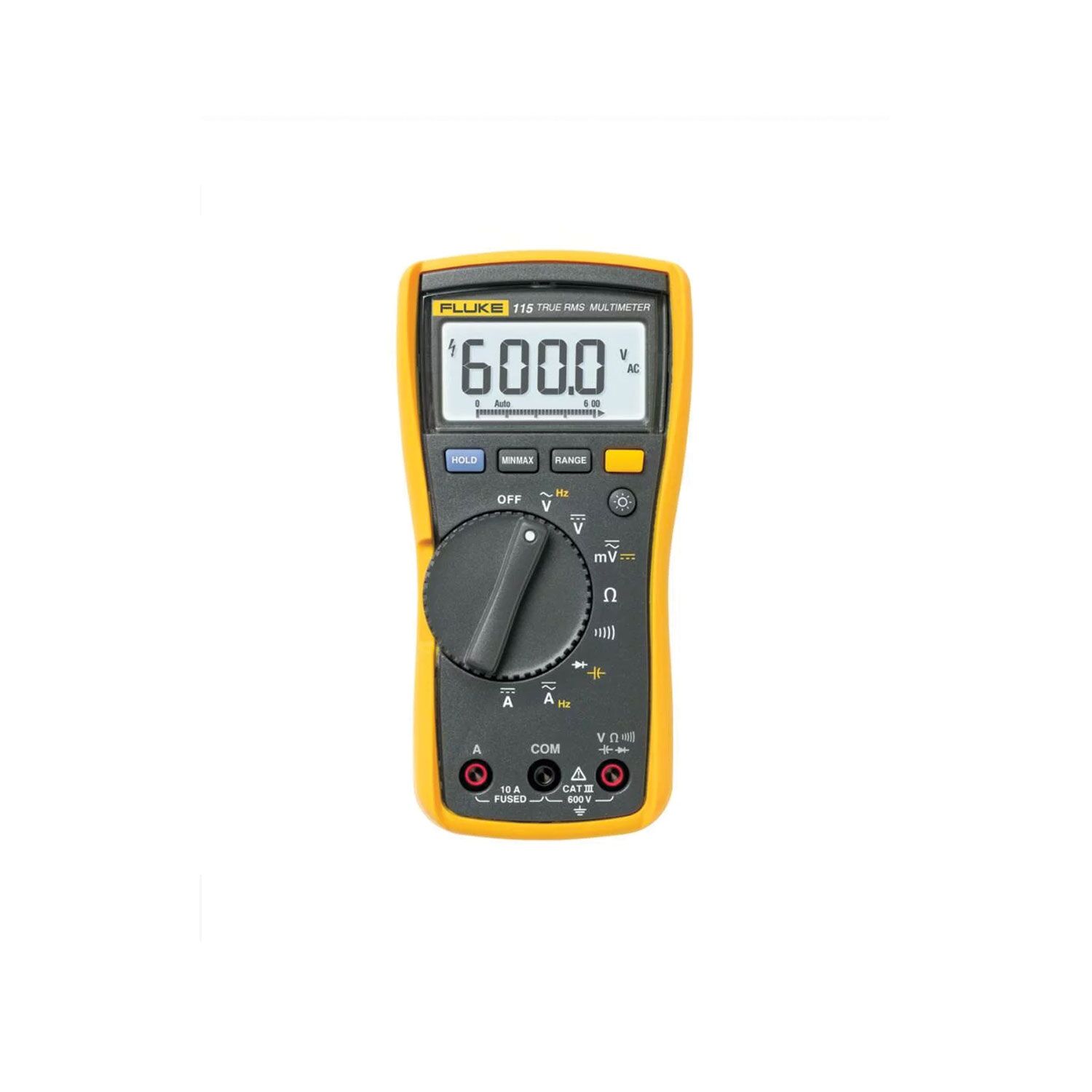

Fluke 115 Field Service Testing Digital Multimeter

Fluke 115 Field Service Testing Digital Multimeter - in hand

Fluke 115 Field Service Testing Digital Multimeter

Name: Fluke 115 Field Service Testing Digital Multimeter
Brand: Fluke
SKU: 2583583
Availability: InStock

£205.00 Price incl. VAT: £246.00

Designed to give easy access to all needed functions via a rotary dial on the front of the tester. The 115 is small enough to hold in one hand, giving the user the flexibility to hold test leads in the other.

Supplied with:

Fluke 115 Multimeter
TL75 Test Leads
Rubber Boot
9V battery
User manual
2 Year Warranty

Add to Wishlist

Add to compare

Add to wishlist

Compare

SKU: 2583583 Category: Electrical Meters Tags: Electrical, Faulty Wiring, voltage testing

Description

Fluke 115 Digital Multimeter

Compact true-RMS meter for field service technicians

The Fluke 115 technicians digital multimeter is the compact, general purpose troubleshooting tool for field service technicians. Its simple, one-handed operation and compact design meets the needs of a wide variety of field service technicians. It measures True RMS voltage and current with 6000 count resolution as well as resistance, continuity, frequency and capacitance for quick verifications.

The Fluke 110 Series has five true-RMS digital multimeters, each for specific users. The compact instruments offer convenient one-handed operation and a backlit display with large, easy-to-read digits.

Supplied with:

Fluke 115 Multimeter
TL75 Test Leads
Rubber Boot

9V battery
User manual
2 Year Warranty

Fluke 113 Digital Multimeter - Application

Key Features

Resistance, continuity, frequency, capacitance & diode testing
Measures up to 10A (20A overload for 30 seconds)
Large size white backlit LCD
Compact ergonomic design
True-RMS
MIN/MAX/AVG readings
CAT III 600V safety rated

Benefits	Applications
General purpose digital multimeter for electrical and electronic testing	Utility Worker
Ideal for quick verifications and field service	Linesman
Presents a large white LED backlight for working in poorly lit areas	Electricians
Measures AC and DC voltage to 600V	Technicians
Measures AC and DC current to 10A (20 A overload for 30-seconds max)	Basic electrical testing
Measures resistance, continuity, frequency, and capacitance
Provides Min/Max/Average with elapsed time to record signal fluctuations
Comes with a holster with probe holders for easy storage
Features a compact ergonomic design for one-handed operation
Fits into optional ToolPak™ magnetic hanger for hands-free operation
CAT III 600 V safety rated

115 Digital Multimeter
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Fluke 115 Multimeter – Data Sheet

Additional information

Brand	Fluke
1AC II VoltAlert	1pk , 5pk , 6pk , 12pk

Product Specification

General specifications (all models)

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity of 0 % to 90 %
Maximum voltage between any terminal and earth ground	600 V
Surge protection	6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Fuse for A input	11 A, 1000 V FAST 17 kA Fuse (Fluke PN 803293)
Display	Digital: 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec
Temperature	Operating: -10 °C to +50 °C; Storage: -40 °C to +60 °C
Humidity	0 % to 90 % to 35 °C; 75 % to 40 °C; 45 % to 50 °C
Temperature coefficient	0.1 x (specified accuracy/°C) (< 18 °C or > 28 °C)
Operating altitude	2,000 meters
Battery	9 Volt Alkaline, NEDA 1604A/IEC 6LR61
Battery life	Alkaline: 400 hours typical, without backlight
Safety compliances	ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, EMC EN61326-1
Certifications	UL, CSA, TUV, N10140 , VDE
IP rating (dust and water protection)	IP42

Fluke 114 115 116 117 Digital Multimeters – Extended Spec

Warranty

2 Year Manufacturer’s Warranty

Summary of Fluke Manufacturers Warranty

All Fluke products are covered by the manufacturers Warranty as stated with each item. Full details are included with the purchased goods, or available upon request. The purchaser is responsible for all carriage and other additional charges incurred when returning the goods to the company under any warranty arrangement.
